HCDX-3000SJ Fluorescence Magnetic Particle Testing Machine AC 16000 ~ 0AT

Name: HCDX-3000SJ Fluorescence Magnetic Particle Testing Machine AC 16000 ~ 0AT
Brand: HUATEC GROUP CORPORATION
SKU: HCDX-3000SJ AC
Price: 15,010.00 USD
Availability: InStock

Product Details

Place of Origin: Beijing

Brand Name: HUATEC

Certification: ISO, CE, GOST

Model Number: HCDX-3000SJ AC

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Packaging Details: Standard export package

Delivery Time: 1-4days

Payment Terms: T/T, Paypal, Western Union

Supply Ability: 500pcs per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                mt test specimen, magnetic strenght meter


Circumferential Magnetizing Current （AC）:	0－3000A（virtual Value）adjustable Continuously, Phase Controlled Circuit Breaker	Vertical Magnetizing Current（AC）:	0－16000AT（virtual Value）adjustable Continuously, Phase Controlled Circuit Breaker
Magnezing Method:	Circumferential, Vertical,resultant Magnetization Coil Inner Diamter Φ500mm（one Piece）	Electrode Pole Distance:	0－1000mm Adjustable
Clamp Travel Route:	40 Mm（single Phase）	Electrode Pole Rotating Speed:	10turns/minute
Clamp Type:	Air Power Control Or Electric Control	Demagnezing Method:	AC Attenuation Demagnezing
Demagnezing Magnetomotive:	AC 16000~0AT

Circumferential Magnetizing Current （AC）:	0－3000A（virtual Value）adjustable Continuously, Phase Controlled Circuit Breaker
Vertical Magnetizing Current（AC）:	0－16000AT（virtual Value）adjustable Continuously, Phase Controlled Circuit Breaker
Magnezing Method:	Circumferential, Vertical,resultant Magnetization Coil Inner Diamter Φ500mm（one Piece）
Electrode Pole Distance:	0－1000mm Adjustable
Clamp Travel Route:	40 Mm（single Phase）
Electrode Pole Rotating Speed:	10turns/minute
Clamp Type:	Air Power Control Or Electric Control
Demagnezing Method:	AC Attenuation Demagnezing
Demagnezing Magnetomotive:	AC 16000~0AT

Product Description

HCDX-3000SJ AC fluorescence magnetic test booth

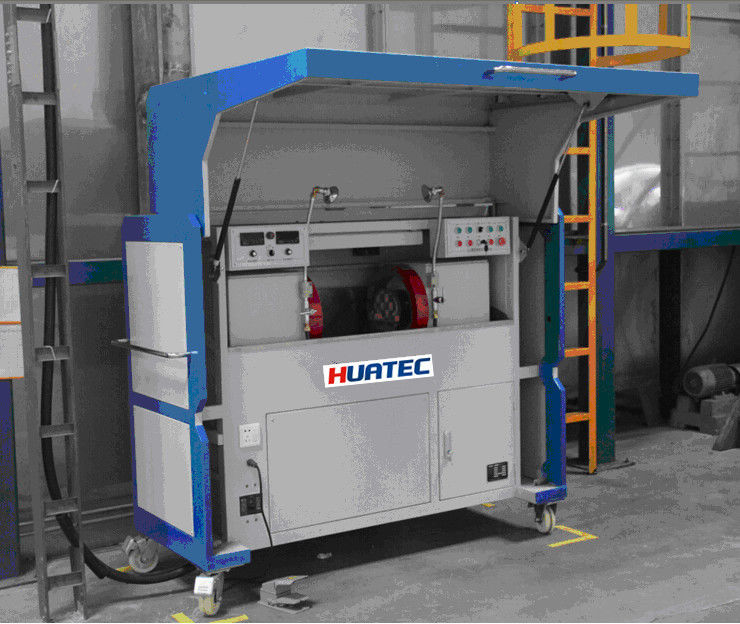

HCDX-3000SJ Fluorescence Magnetic Particle Testing Machine AC 16000 ~ 0AT 0

Technical features

Magnetizing current:

Circumferential magnetizing current (AC): 0－3000A(virtual value)adjustable continuously, phase controlled circuit Breaker

Vertical magnetizing current(AC): 0－16000AT(virtual value)adjustable continuously, phase controlled circuit Breaker

Magnezing method: Circumferential, Vertical,resultant magnetization

Coil inner diamter Φ500mm(one piece)

Electrode Pole distance 0－1000mm adjustable

Clamp travel route 40 mm(single phase)

Electrode Pole rotating speed: 10turns/minute

Clamp type: Air power control or electric control

Demagnezing method AC attenuation demagnezing

Demagnezing magnetomotive: AC 16000~0AT

Remanence ≤0.2 mT

UV strength: ≥ 2000μW/cm2 (distance to UV light 380 mm)

Air power pressure: 0.4~0.8 Mpa (offered by customer)

Power: Three phase four line AC 380V 50Hz 150A

Outside size 1800(L)×800(W)×1900(H)

Total weight: about 1.0T

Duty cycle: ≥25%

Configuration

Model Configuration	A	B	C
PLC	●	●	●
Dial Ammeter	●
Digital Ammeter		●
Touch screen		○	●
Current preset		○	●
DC magnetizing		○	○
Contact inspection fuction		○	○
Anti spark cooper packing	○	○	●
Air power /electric clamp	●	●	●
AC magnetizing current	AC 2000A～6000A
Max.distance of electrode pole	≤3000mm
Max.coil inner diameter	≤700mm

Note:“●” standard configuration,“○” optional

HCDX-3000SJ Fluorescence Magnetic Particle Testing Machine AC 16000 ~ 0AT 1
