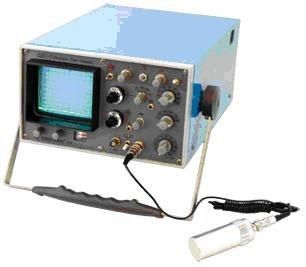

real and reliable signal and echo 4A / 9V ultrasonic flaw detector FD100 Analog

Features

Real and reliable signal and echo

Excellent working performance

Big gain reach 108dB

Big display screen, high brightness

Direct sourcing power supply and battery all are available in one machine

Automatic alarm for error input and output echos

Specifications

Gain                            0-108dB(10dB×5,6dB×8,1dB×10)

Horizontal Linearity Error          ≤1%

Vertical Linearity Error             ≤3.0%

Dynamic range                   ≥30dB

Sensitivity Leavings               ≥50dB(200mm-Φ2 flat bottom hole,2.5PΦ20)

Resolution                       ≥30dB(2.5MHz straight beam probe)

Size(WxHxT)                  235×135×335mm

Weight                          5Kg

Probe cable connector            BNC/ LEMO-1

Battery working time              4～5 hours continuously

Power supply                    220/110VAC

Display screen type               high brightness salt screen

Screen size                      75mm×65mm

Working frequency                0.4-~16 MHz

Standard Delivery

Main unit

Stand echo probe

2.5MHz-ф20 straight probe

4MHZ-8x9mm, 60degree angle probe

4A/9Vpower adapter

Probe connection cable (BNC to Lemo 00)

Instruction manual

Carrying case

Opptional Accessories

Straight probe (5MHZ-ф20)

Straight probe (2.5MHZ-ф20)

Straight probe (2.25MHZ-ф20)

Straight probe (1MHZ-ф20)

Angle probe (4MHZ-45degree, 8*9mm)

Angle probe (4MHZ-60degree, 8*9mm)

Angle probe (4MHZ-70degree, 8*9mm)

Angle probe (4MHZ-80degree, 8*9mm)

Angle probe (2MHZ-45degree, 8*9mm)

Angle probe (2MHZ-60degree, 8*9mm)

Angle probe (2MHZ-70degree, 8*9mm)

Angle probe (2MHZ-80degree, 8*9mm)

Probe T/R (5MHz-ф20mm, focus 15mm)

Probe T/R (2.5MHz-ф20mm, focus 15mm)

Connection cable to probe (BNC-BNC)

Connection cable to probe (BNC-Lemo 00)

Connection cable to probe (Lemo 01-BNC)

Connection cable to probe (Lemo 01-Lemo 00)

Lithium ion battery

Power adapter (4A/9V)

Power Cable

UT calibration block IIW V-1, IIW V-2 block  DAC etc.
