Light Load Brinell Hardness Tester Touch Screen Digital Automatic Tower Mhbs-62.5z

Name: Light Load Brinell Hardness Tester Touch Screen Digital Automatic Tower Mhbs-62.5z
Brand: HUATEC GROUP CORPORATION
SKU: MHBS-62.5Z
Price: 15,010.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: HUATEC

Certification: ISO CE

Model Number: MHBS-62.5Z

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: IN CARTON

Payment Terms: T/T, Western Union

Supply Ability: 500

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                portable brinell hardness tester, rockwell superficial hardness tester


Test Maximum Height:	160mm	Indenter To Wall Distance:	135mm
Shape Size:	250×550×650mm	Force Duration Time:	(5-60) S
Test Force Application Method:	Automatic

Test Maximum Height:	160mm
Indenter To Wall Distance:	135mm
Shape Size:	250×550×650mm
Force Duration Time:	(5-60) S
Test Force Application Method:	Automatic

Product Description

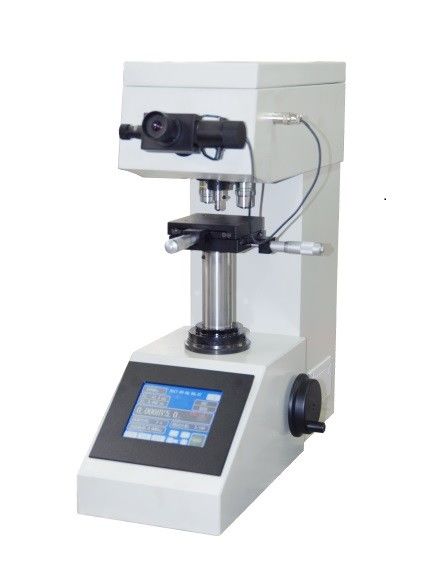

Touch Screen Digital Automatic Tower Light Load Brinell hardness tester MHBS-62.5Z

Light Load Brinell Hardness Tester Touch Screen Digital Automatic Tower Mhbs-62.5z 0

Introduction

The touch screen digital automatic tower light load Brinell hardness tester MHBS-62.5 is a new Brinell hardness tester using precision mechanical technology and photoelectric technology. The machine is controlled by an embedded microcomputer and is suitable for cast iron, non-ferrous metals and their alloys. All kinds of annealed and tempered steel are particularly suitable for the hardness detection of softer metals such as pure aluminum, lead and tin. It is an ideal Brinell hardness test instrument for scientific research institutions, enterprises and quality inspection departments to conduct research and testing.

Product characteristics

1.Regulation measures the strength of the light source;

2.Real-time display of test ambient temperature;

3.Printing hardness test data, easy to use;

4.High measurement accuracy;

5.Automatic switch the indenter and objective lens

6.Automatic calculate and display the testing value

7.Can select the convert scale according to the material.

8.Unique closed-loop control system, hardness test is faster and more accurate

9.Touch screen control panel.

10.Choose any of six force from 6.25kgf to 70kgf

Technical parameters

Model	MHBS-62.5Z
Force	61.25N(6.25kgf),98.07N(10kgf),153.2N(15.625kgf), 294N(30kgf),306.25N(31.25kgf),612.9N(62.5kgf)
Standard of execution	EN, ISO 6507, EN ISO 6506, ASTM E-384, ASTM E-10-08, ASTM E-384 GB/T231.2,JJG150
Test maximum height	160mm
Indenter to wall distance	135mm
Shape size	250×550×650mm
Force duration time	(5-60) s
Test force application method	Automatic
Measurement of magnification	40x,100x
Hardness measurement range	8-650 HBW
Power	AC220V/50HZ
Weight	45kg

Standard Configuration

Name	Quantity	Name	Quantity
Ф1mm Steel ball indenter	1	Ф2.5mm Steel ball indenter	1
Ф5mm Steel ball indenter	1	Large, medium, flat, V-shaped platform	3
Brinell hardness block	2	weight	1
Fuze	2	Power wire	1
description	1	Qualification Certificate	1
Printing paper	1
