Highlight:
automatic tower brinell hardness machine
, huatec brinell hardness machine
, automatic loading brinell hardness machine
Brinell Scales: |
HBW2.5/62.5 HBW2.5/187.5 HBW5/62.5 HBW5/125 HBW5/250 HBW5/750 HBW10/100 HBW10/250 HBW10/500 HBW10/1000 HBW10/1500 HBW10/3000 |
Test Force: |
62.5Kgf(612.9N) 100Kgf(980.7N) 125Kgf(1226N) 187.5Kgf(1839N) 250Kgf(2452N) 500Kgf(4903N) 750Kgf(7355N) 1000Kgf(9807N) 1500Kgf(14710N) 3000Kgf(29420N) |
Standards: |
BSEN 6506, ISO 6506, ASTM E10, GB/T231 |
Hardness Resolution: |
0.1HBW |
Testing Range: |
3.18-653HBW |
Max. Height Allowed For Sample: |
320mm |
Distance Of Indenter To Outer Wall: |
250mm |
Size: |
700×340×970mm |
Weight: |
About 160kg |
Power: |
AC220+5%,50～60Hz |

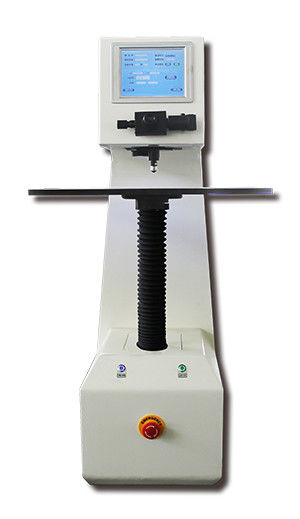

Automatic Closed-Loop Pressure Control Automatic Loading Brinell Hardness Machine HB-3000XPZ
|
Usage Range
The Brinell hardness tester that shows the largest indentation among all the hardness tests is able to reflect
the comprehensive features of the material , and the test is unaffected by the organization micro-dioptre
and the compositional unevenness of the speciment ;and hence it is a hardness testing with high precision.
The Brinell hardness test is widely used in such industrial fields as metallurgy , forging , casting , unhardened
steel and nonferrous metals industries, as well as in the laboratories, universities , colleges and s-cientific
research institutes.
|
|
Advantages:
1. Automatic closed-loop pressure control, automatic loading, automatic load;
2. Tester body designed in Italy, Ample sample space for large samples.
3. Wide force measurement range: from 62.5 to 3000 kgf, 10 brinell scales, machine can be customized;
4. Automatic turret, automatic loading and unloading, no need for auto focus after loading;
5. Z-axis automatic ascending and descending. After placing sample, push test button and the sample automatically ascends, after touching indenter, loading automatically starts, after unloading, turret automatically turns to sample location, z axis automatically focus and proceed testing.
6. Objective structured with digital encoder, calculate D1, D2 value, LCD directly displays hardness value and D1, D2 value.
7. Can calibrate according to standard block or length scale.
8. Test force can auto-correct using standard force meter.
9. Can convert to rockwell and vickers hardness value.
10. Touchscreen, easy operation, can input sample, name of testing personnel and other info.
11. Data can saved as excel format in u disc for easy editing and processing.
12. Main application: railway, energy, steel, aviation , roller plants, tube rolling mills, foundries,
Technical Specifications:
| Model |
HUATEC HB-3000XPZ |
| Brinell Scale |
HBW2.5/62.5 HBW2.5/187.5 HBW5/62.5 HBW5/125 HBW5/250 HBW5/750 HBW10/100 HBW10/250 HBW10/500 HBW10/1000 HBW10/1500 HBW10/3000 |
| Testing Force |
62.5Kgf(612.9N) 100Kgf(980.7N) 125Kgf(1226N)
187.5Kgf(1839N) 250Kgf(2452N) 500Kgf(4903N) 750Kgf(7355N) 1000Kgf(9807N) 1500Kgf(14710N) 3000Kgf(29420N)
|
| Standards |
BSEN 6506, ISO 6506, ASTM E10, GB/T231 |
| Force accuracy |
62.5～250Kgf≤1% 500～3000Kgf≤0.5% |
| Measuring device resolution rate |
0.1μm |
| Hardness resolution |
0.1HBW |
| Hardness range |
3.18-653HBW |
| Indenter and objective |
Automatic replacement |
| Loading time |
1～99S |
| Data output |
LCD display |
| Data saving |
Value can be saved as excel format in u disc |
| Max. Height allowed for sample |
320mm |
| Distance of indenter to outer wall |
250mm |
| Dimension |
700×340×970mm |
| Weight |
About 160kg |
| Power |
AC220+5%,50～60Hz |
Operation Interface:
Standard accessories
| Name |
Quantity |
Name |
Quantity |
| Objectives 20x |
1 |
Diameter 2.5,5,10mm Hard Alloy Steel Ball Indenter |
Each 1 |
| Standard Blocks |
3 |
Large, Medium, “V” shaped Testing Table |
1 each |
| Power Cable |
1 |
U disk |
1 |
| Operation Manual |
1 |
Product certificate |
1 |
| Touch pen |
1 |
|
|
