Home > products > Brinell Hardness Tester > Electric Loading Touch Screen Brinell Hardness Tester Close Circuit Control System Portable
Electric Loading Touch Screen Brinell Hardness Tester Close Circuit Control System Portable
Electric Loading Touch Screen Brinell Hardness Tester Close Circuit Control System Portable
Electric Loading Touch Screen Brinell Hardness Tester Close Circuit Control System Portable

Electric Loading Touch Screen Brinell Hardness Tester Close Circuit Control System Portable

Product Details

Place of Origin: Beijing

Brand Name: HUATEC

Certification: ISO, CE, GOST

Model Number: HB-187.5PDX

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Packaging Details: Standard export package

Delivery Time: 1-4days

Payment Terms: T/T, Paypal, Western Union

Supply Ability: 500pcs per month

Get Best Price

Product Details

Product Description
Product Details
Highlight:

lcd display brinell hardness tester

,

touch screen brinell hardness tester

,

touch screen portable brinell hardness tester

Color:
Black
Measuring Range:
15.9-650HBW（ASTM E10）
Brinell Test Force:
5 Kgf 、6.25 Kgf 、10 Kgf 、15.625 Kgf 、25 Kgf 、30 Kgf 、31.25Kgf 62.5Kgf、187.5Kgf
Brinell Hardness Scales:
HBW2.5/6.25、HBW2.5/15.625、HBW2.5/31.25、 HBW2.5/62.5、HBW2.5/187.5、HBW1/5、HBW1/10、HBW1/30
Hardness Resolution Ratio:
0.1HBW
Test Force Deviation:
＜1%
Display:
LCD Display
Memory:
Measurement Data Saved In U-disk In Excel Format
Color:
Black
Measuring Range:
15.9-650HBW（ASTM E10）
Brinell Test Force:
5 Kgf 、6.25 Kgf 、10 Kgf 、15.625 Kgf 、25 Kgf 、30 Kgf 、31.25Kgf 62.5Kgf、187.5Kgf
Brinell Hardness Scales:
HBW2.5/6.25、HBW2.5/15.625、HBW2.5/31.25、 HBW2.5/62.5、HBW2.5/187.5、HBW1/5、HBW1/10、HBW1/30
Hardness Resolution Ratio:
0.1HBW
Test Force Deviation:
＜1%
Display:
LCD Display
Memory:
Measurement Data Saved In U-disk In Excel Format
Product Description

Electric Loading Touch Screen Close-Circuit Control System Brinell Hardness Tester Portable



Application:

It can be used to determine the Brinell hardness of ferrous, non-ferrous metals and tensile strength of steel products. It is especially suitable to determine the Brinell hardness of large heavy parts on the spot.



Main Features:

  1. The tester can automatically test Brinell (depth measurement method) (HBT) scale.
  2. Applies electric loading, high-precision sensor and possesses unique close-circuit control system;
  3. Touch-screen interface; convenient operation; choose hardness scale directly; force value changes automatically in test parameter;
  4. Auto-correction of high, medium and low scales of brinell hardness blocks according to standard blocks;
  5. Auto-correction of test force through standard dynamo-meter;
  6. Automatically exertion of initial and main test force;
  7. Strong data processing function including: HB and multiple hardness scale conversion; setting of valid range; auto alarm when limit is exceeded; input name of tester, name of sample and other information;
  8. More sample and testing information; testing data can be saved automatically to excel format and saved on u-disk for convenience of editing and processing.

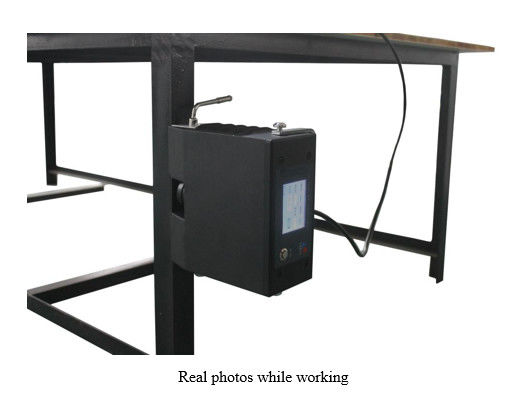

Electric Loading Touch Screen Brinell Hardness Tester Close Circuit Control System Portable 0

Electric Loading Touch Screen Brinell Hardness Tester Close Circuit Control System Portable 1

                          Main interface of PC software



Technical Specifications:

Model HB-187.5PDX
Brinell total test force 5 Kgf ,6.25 Kgf ,10 Kgf ,15.625 Kgf ,25 Kgf ,30 Kgf ,31.25Kgf 62.5Kgf,187.5Kgf
Brinell hardness scale HBW2.5/6.25,HBW2.5/15.625,HBW2.5/31.25, HBW2.5/62.5,HBW2.5/187.5,HBW1/5,HBW1/10,HBW1/30
Brinell testing range 15.9-650HBW(ASTM E10)
Duration time 0-99s
Hardness resolution ratio 0.1HBW
Test force deviation ＜1%
Data output LCD display
Data saving Measurement data saved in u-disk in excel format
Conversion scale Brinell,(Rockwell and Vickers are optional)
Criteria met BSEN 6506, ISO 6506, ASTM E10, GB/T231
Specimen dimension

Plane surface: area≥160X100,thickness≥5mm;

Round stick(pipe): diameter over 250mm;

When between 60 to 250mm, fix v-shaped block and chain to the magnet to fasten sample.
Size 320×170×230mm
Weight 10.5kg
Voltage AC220+5%,50～60Hz


Standard Accessories

Item Quantity Item Quantity
Main unit HB-187.5PDX 1 1mm,2.5mm carbide indenter 1 each
Hardness block (HRB) 2 power source 1
Iron base 1 U disk, touch pen Each 1
Power cord 1 Manual 1
Product certificate, warranty card 1 Product certificate, warranty card 1
