Laboratories Universities and Scientific Research Institutes Brinell Hardness Tester XHB-3000

Name: Laboratories Universities and Scientific Research Institutes Brinell Hardness Tester XHB-3000
Brand: HUATEC GROUP CORPORATION
SKU: XHB-3000
Price: 15,010.00 USD
Availability: InStock

Product Details

Place of Origin: Beijing

Brand Name: HUATEC

Certification: ISO, CE, GOST

Model Number: XHB-3000

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Packaging Details: Standard export package

Delivery Time: 1-4days

Payment Terms: T/T, Paypal, Western Union

Supply Ability: 500pcs per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                vickers hardness machine, portable brinell hardness tester


Color:	White	Testing Range:	(8～650)HBW
Max Height Of The Speciment:	225mm	Power Supply And Voltage:	AC220/100V/50-60Hz

Color:	White
Testing Range:	(8～650)HBW
Max Height Of The Speciment:	225mm
Power Supply And Voltage:	AC220/100V/50-60Hz

Product Description

Usage Range
The Brinell hardness test that shows the largest indentation among all the hardness tests is able to reflect the comprehensive features of the material, and the test is unaffected by the organizational micro-dioptre and the compositional unevenness of the speciment; and hence it is a hardness testing with high precision. The Brinell hardness test is widely used in such industrial fields as metallurgy, forging, casting, unhardened steel and nonferrous metals industries, as well as in the laboratories, universities, colleges and scientific research institutes.

Main Features

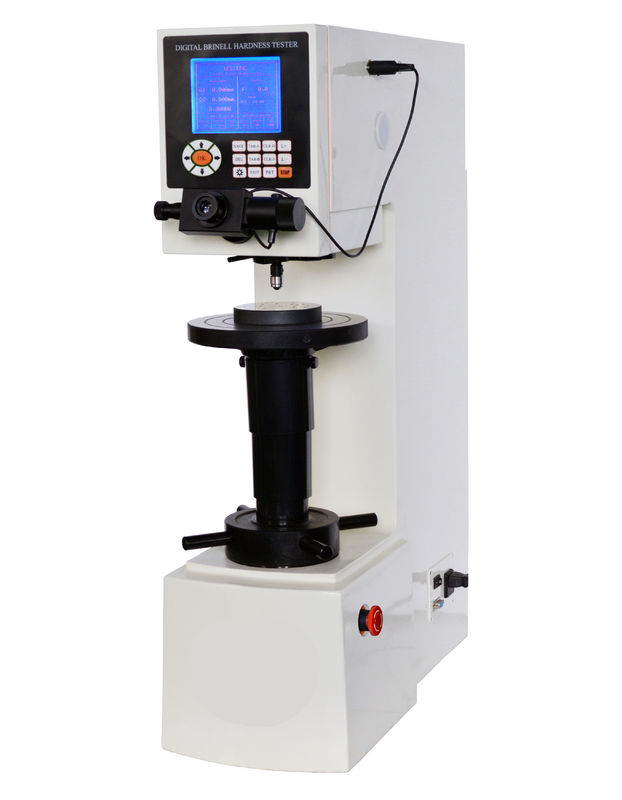

XHB-3000 Digital Brinell Hardness Tester is a unified product combining the precise mechanical structure with the computer control by means of the optical, mechanic and electrical circuit system, and so it is the most advanced brinell hardness tester in today’s world. The instrument adopts the motorized test force application without weight blocks, and uses 0.5‰ accuracy compression sensor to feedback the information and the CPU control system to automatically compensate the test force lost during the testing. The indentation is directly measured on the instrument through the microscope, and the LCD screen indicates the diameter, the hardness value, and 17 different hardness testing comparison tables as well as the HBW range automatically shown under the present presetting. It is possible to preset the load dwell time and the intensity of the light on the window page , and design a F/D2 selection table to facilitate the operation of the user. The instrument is completed with a RS232 serial interface connected with a PC for final read-out, the printer and the date storage.

Main Parameters

Testing Range:(8～650)HBW
Test Force:612.9N(62.5Kgf), 980N(100Kgf), 1226N(125Kgf), 1839N(187.5Kgf), 2452N(250Kgf), 4900N(500Kgf), 7355N(750Kgf), 9800N(1000Kgf), 14700N(1500Kgf), 29400N(3000kgf)
Accuracy of Displayed Hardness Value
Hardness Range(HBW)	Max tolerance％	Repetition％
≤ 125	± 3	≤ 3.5
125＜HBW≤225	± 2.5	≤ 3.0
＞ 225	± 2.0	≤ 2.5
Max Height of the speciment: 225mm
Max Distance from the indenter center to the instrument panel: 135mm
Magnification of the microscope: 20X
Min Reading Grade of the Drum wheel of the microscope: 0.00125mm
Power supply and Voltage: AC220/100V/50-60Hz
Main Accessories
Tables: large, small, and v-shaped each
Hard Alloyed Steel Balls Indenters: Φ2.5mm, Φ5mm and Φ10mm each.
One Microscope: 20X
Two Standard Hardness Blocks.
