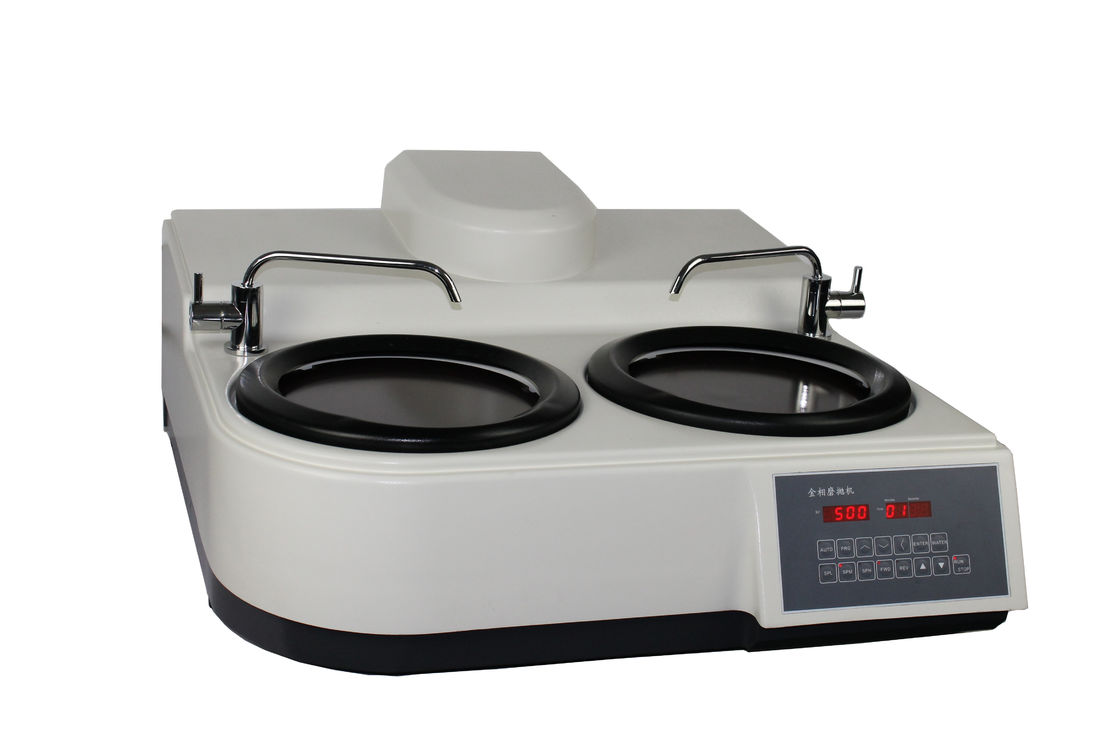

Two working plates Excellent Metallographic Equipment in 254mm Disc Diameter
Product Feature
Two working plates,Multi-usage, metallographic specimen of coarse grinding, fine grinding, coarse and fine polishing, one machine to complete
Grinding disc diameter: 254 mm, compare to ordinary grinding disc, effective area increased by 60%
Manual mode: three-level constant speed mode and variable speed mode
1.Three level constant speeds: customer can define three common speeds for pre-grinding, grinding and polishing
2.Variable speed mode: grinding speed 0-1000n/min
Automatic mode:
Eight sections programmable control, automatically stop, convenient for customer getting metallographic sample
Easily replace magnetic anti-sticking dish, can make all kinds of sample of coarse and fine grinding, coarse and fine polishing all process
Optional work rotating direction: counterclockwise and hour hand is optional
By using the electromagnetic valve to control the water on and off
Increase the automatic grinding head, can be upgraded to automatic polishing machine, automatic processing of six samples at the same time
Beautiful outlook and good quality
Main Technical Specification
Speed:0-1000 r/min(customized)
Disc diameter:254mm(Optional 230,220,203mm)
Power:550W,220V,60/50Hzz
Overall Dimension : 760×710×330mm
Net weight: 70Kg
Standard Accessory
| Name |
Quantity |
Name |
Quantity |
| Magnetic working plate(254mm) |
2 pieces |
Anti-sticky disc(254mm) |
2peices |
| one side sticky grinding paper(250mm) 320#,1000# |
10 pieces/each |
One side sticky polishing cloth(250mm), velvet fabric |
1peice |
| diamond polishing liquid,6micron,200ml |
1bottle
|
Lubrication cooling liquid,blue,200ml |
1bottle |
| waterproof ring |
1 piece |
input-water pipe adapter |
1 piece |
| input-water pipe |
1 piece |
power cable |
1peice |
| output-water pipe |
1 piece |
machine certification |
1 set |
| machine manual |
1 set |
packing list |
1 set |
| Machine Guarantee card |
1 set |
|
|
Optional Accessory
| metallographic grinding paper |
GSC250A |
l 100peices /package
l material: black carborundum
l sand size:P80# 120# 180＃ 320＃ 600＃ 800＃ 1000＃ 1200＃ 1500＃ 2000＃
l size:Φ250mm
l waterproof and one side sticky, can be attached on the grinding plate directly
|
| Anti-sticky disc |
MAGNOMET |
l anti-sticky disc 5peices/box
l diameter:Φ254mm
l Surface coating with Special anti-sticky layer, can attach the sticky paper and polishing cloth directly, and easily replace without sticky mark.
l Can be reuse
l Can be replace the BUEHLER and STRUERS same production
|
| Polishing cloth |
FT250A |
l polish cloth 10peices/package
l velvet fabric(long floss) / canvas(short floss)/ Woolen cloth(short floss)/ silk cloth(no floss)
l Φ250mm
l one side sticky, can be attached directly on the grinding plate
|
| Diamond grinding and polishing liquid |
DSU |
l Diamond grinding and polishing liquid,500ml/bottle
l Diamond suspending in the liquid, can be dropped automatically or watering pot, Uniformly distribution
l size:0.25, 0.5, 1, 1.5, 2.5, 3, 3.5, 5, 6, 7, 9, 10, 14, 15, 20, 28, 40micron, for different material
|
Packaging and Shipping
Packaging: Standard export package, wooden case
Delivery: 3-15 days upon receipt of payment,depending on order quantity
Shipping: Can be shipped by sea, air or other means per request.
Our Services:
Warranty: One year
After sales service and maintenance: Lifelong
