Auto Metallographic Equipment For Mounting Press / Inlaying , 220V 50HZ

Brand Name:	HUATEC
Model Number:	HSM-3
MOQ:	1pcs
Packaging Details:	Standard export package
Payment Terms:	T/T, Paypal, Western Union

Detail Information

Product Description

ratings& Reviews

Detail Information

Place of Origin:

Beijing

Certification:

ISO, CE, GOST

Specification Of Die:

φ25mm φ30mm φ40mm φ50mm

Heater Power:

1000W

Input Voltage:

220V，50Hz

Temperature:

50-3000C

Shortest Mounting Time:

＜15 Minutes

Dimensions:

630×520×520mm

Weight:

120Kg

Supply Ability:

500pcs per month

Highlight:

portable brinell hardness tester

rockwell superficial hardness tester

Product Description

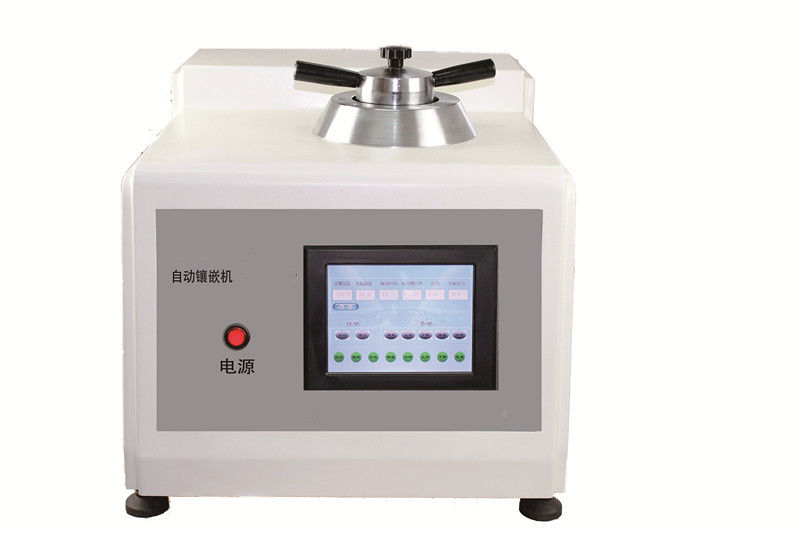

Auto Metallographic Equipment For Mounting Press / Inlaying , 220V 50HZ

HSM-3 Automatic Metallographic Inlaying Machine,all procedures are done automatically. It is used for all types material mounting press (hot mounting press and cold mounting press), and is one of the leading mounting press of the world. With Pre-heating and cooling function, can efficiently short the mounting period.

Product Features

Microcomputer control, all process automatic heating, pressure, cooling

Pre-heating function to heat the demo quickly, save process time

Water-forced cooling,quickly get the sample

Duo-cylinder inside, with the constant pressure while mounting press

Big size touch screen, graphical HMI for friendly and easy operation

Two demos can be done simultaneous, more inefficient

Four kinds diameter mold can be chose, easily change

Main Technical Specifications

Pressure, temperature, heating and cooling time can be set via touch screen

Aboard water cooling system

Aboard hydraulic system, pressure:0~2MPa(product pressure:0~72MPa)Can be done with two demos by once

Model	HSM-3
Mold diameter(can be randomly selected 2 types)	φ25mm φ30mm φ40mm φ50mm
Mounting temperature	50-300⁰C
Shortest mounting time	＜15 minutes

Heating power	1000W
Voltage	220V 50Hz
Dimensions	630×520×520mm
Weight	120Kg

Packaging and Shipping

Packaging: Standard export package, wooden case

Delivery: 5-10 days upon receipt of payment,depending on order quantity

Shipping: Can be shipped by sea, air or other means per request.

Our Services:

Warranty: One year

After sales service and maintenance: Lifelong
