-0.08Mpa Vacuum Metallographic Inlay Machine / Specimen Mounting Press Equipment
Main Feature

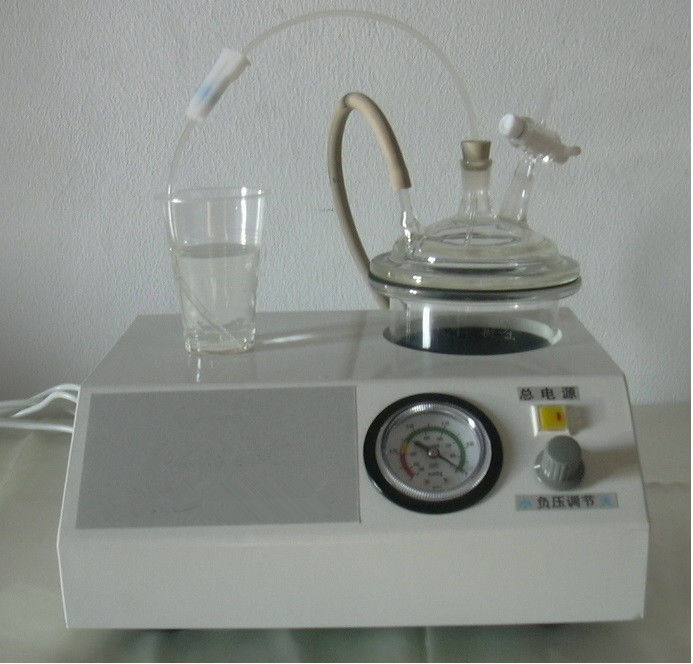

Model HVM-2 Vacuum inlaying machine is a special sample set of equipment in the cold.
Through to the samples and set with resin vacuum, can remove samples and set the gases of the resin. Hole in the sample will be set with resin filling, samples and set between resin doesn't appear aperture.
At the same time 5-8 inlays 30 mm diameter of the samples
The Vacuum Inlaying Machine can be applied to various samples of cold inlaid, especially the circuit board, powder metallurgy material Mosaic; In the electronics industry, it can cooperate with stain, used for inspection of weld defects.
The Vacuum Inlaying Machine has two work modes:
Place the inlaying materials and samples in the inlaying membrane, vacuum of it at the same time, the vacuum time is short and in high efficiency
Vacuum to sample first, then join the inlay material under the condition of vacuum, at the end vacuum on inlay material and sample.In this way, the samples of gap filling more complete and closely
Technical Specifications
Overall Dimension: 290 X 240 X 220mm
The vacuum chamber size: diameter 100mm Height 50mm, This size can be customized.
Vacuum: -0.08Mpa
Power supply: 220V, 50W
Packaging and Shipping
Packaging: Standard export package, wooden case
Delivery: 5-10 days upon receipt of payment,depending on order quantity
Shipping: Can be shipped by sea, air or other means per request.
