Automatic High Speed metallurgical sample preparation equipment With Servo Motor Drive

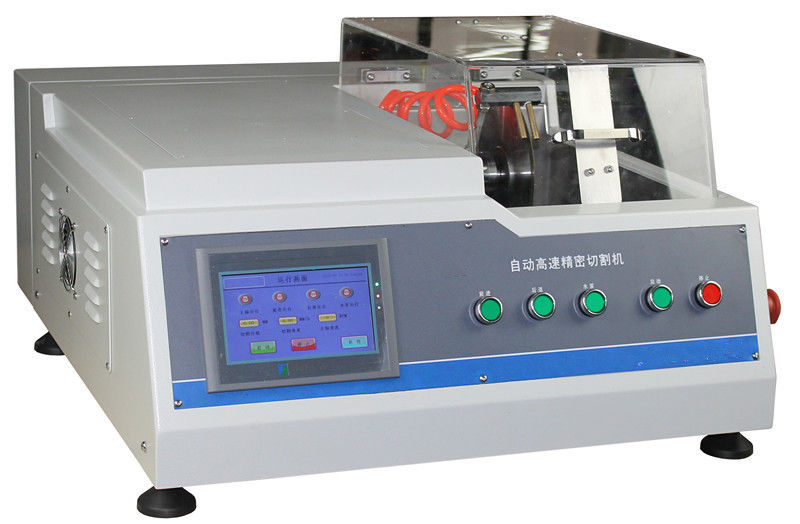

HC-200XP Cutting Machine can be used to cut material, electronic element, electronic element, crystals, hard alloy, rock sample, core sample, concrete, organic materials, biological materials (teeth, bones), etc. Precision cutting without deformation.
The device adopts high-power servo motor drive, high locating accuracy, large range of speed, high cutting power, internal circulation cooling system, preinstall feed speed, menu controlled；liquid crystal display, users are free to define the cutting method, airtight security cutting room. It is an ideal precision cutting machine for industrial and mining enterprises, scientific research institutes to prepare high quality samples.
Main Technical Specifications
1,feeding speed:0~30mm/min(adjust size 0.01mm)
2,Speed:300~5000rpm
3,Max cutting section:φ60mm
4,Maximum stroke:Y axis 200mm
5,Grinding wheel:200*1.0*32mm；
6,Cutting power:1100W
7,Power source:220V 50HZ
8,Overall Dimension:700mm×720mm×410mm
Accessories
| Item |
Quantity |
Item |
Quantity |
| Water tank |
1 |
Water inlet |
1 |
| Tool |
1 |
Drain-pipe |
1 |
| Cutting lubricant |
1 |
Electroplate diamond cutting disc(made in China) |
1 |
| Instruction |
1 |
Certificate |
1
|
Packaging and Shipping
Packaging: Standard export package, wooden case
Delivery: 5-10 days upon receipt of payment,depending on order quantity
Shipping: Can be shipped by sea, air or other means per request.
Our Services:
Warranty: One year
After sales service and maintenance: Lifelong
