Home > products > Vibration Meter > Pocket 9V Vibration Analyzer , 10HZ - 1KHz Temperature Instrument HG-6500 Series

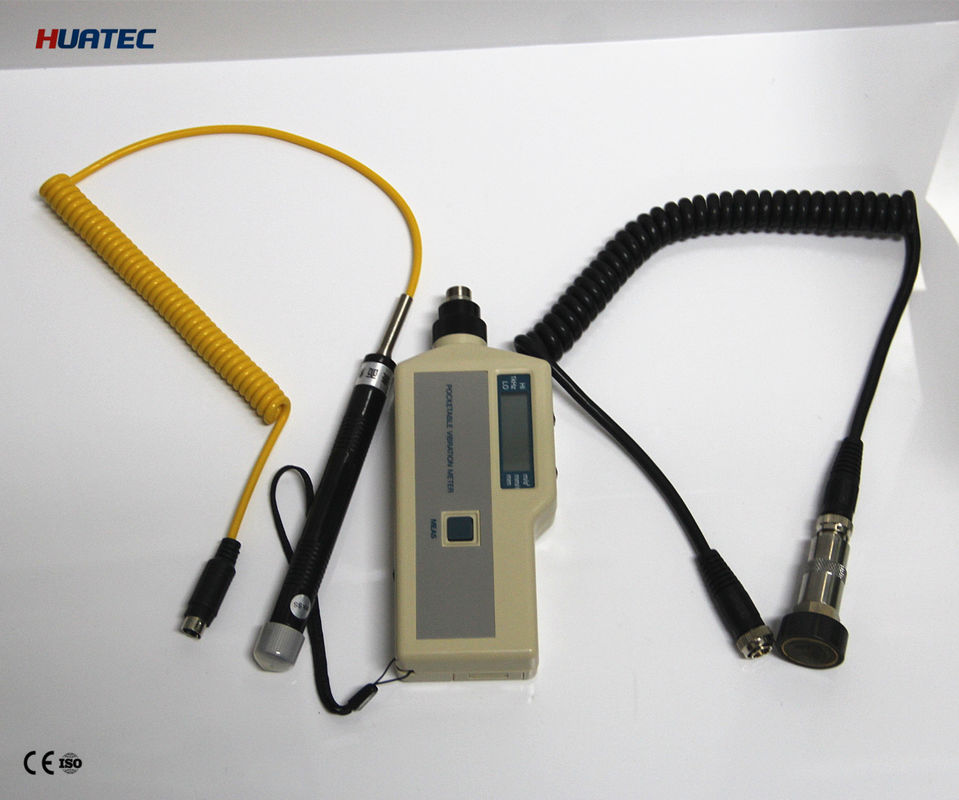

Pocket 9V Vibration Analyzer , 10HZ - 1KHz Temperature Instrument HG-6500 Series

Name: Pocket 9V Vibration Analyzer , 10HZ - 1KHz Temperature Instrument HG-6500 Series
Brand: HUATEC GROUP CORPORATION
SKU: HG-6500
Price: 220.00 USD
Availability: InStock

Product Details

Place of Origin: Beijing

Brand Name: HUATEC

Certification: ISO, CE, GOST

Model Number: HG-6500

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Packaging Details: Standard export package

Delivery Time: 1-4days

Payment Terms: T/T, Paypal, Western Union

Supply Ability: 500pcs per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                portable vibration meter, digital vibration meter


Product Description

Pocket 9V Vibration Analyzer , 10HZ - 1KHz Temperature Instrument HG-6500 Series

Description:

HG-6500 Pocket vibration (temperature) instrument, mainly used in machinery and equipment vibration displacement, velocity (intensity) and the acceleration, temperature parameters of the measurement instrument in the bearing housing using the measured data, the control of international standard ISO2372 , Or the use of enterprises, the standard machine, you can determine the equipment (fans, pumps, compressors, motors, etc.) in which the current state (well, pay attention or dangerous, etc.).

Specifications
Sensors: one rotary shear accelerometer
              Split charge amplifier built-in shear accelerometer
Range:    Acceleration 0.1 ~ 199.9m/s2 (single peak) (5 or 10 ~ 1KHz; 1K ~ 10KHz)
                  Speed of 0.1 ~ 199.9mm / s (RMS) (5 or 10 ~ 1KHz)
                 Displacement of 0.001 ~ 1.999mm (peak) (5 or 10 ~ 1KHz)
                  Temperature 0 ℃ ~ 400 ℃
Accuracy: 5% ± 2 vibration words
                   Temperature 1% ± 1 word
Display: LCD display three and a half
Maintain the characteristics: measurement value is automatically maintained, automatic shutdown delay
Signal Output: AC 2V peak (full scale and the load is greater than 10K ohms)
Power: 9V laminated battery 1 can be used continuously 25 hours
Body volume: 185mm × 68mm × 30mm
Weight: 200g

Model	Low frequency and temperature	Function	Frequency range
HG-6500AN	Standard (I)	Acceleration, Velocity, Displacement	10Hz ~ 10KHz
HG-6500AL	Low frequency (I)	Acceleration, Velocity, Displacement	5Hz ~ 10KHz
HG-6500ANC	Vibration and temperature(I)	Acceleration, Velocity, Displacement, Temperature	10Hz ~ 10KHz
HG-6500ALC	Low frequency and temperature(I)	Acceleration, Velocity, Displacement, Temperature	5Hz ~ 10KHz
HG-6500BN	Standard	Acceleration, Velocity, Displacement	10Hz ~ 10KHz
HG-6500BL	Low frequency	Acceleration, Velocity, Displacement	5Hz ~ 10KHz
HG-6500BNC	Vibration and temperature	Acceleration, Velocity, Displacement, Temperature	10Hz ~ 10KHz
HG-6500BLC	Low frequency and temperature	Acceleration, Velocity, Displacement, Temperature	5Hz ~ 10KHz
