0.196J Concrete Test Hammer / Mortar Strength Testing 1.0 - 25 Mpa

Brand Name: HUATEC
Model Number: HTH-20
MOQ: 1pcs
Packaging Details: Standard export package
Payment Terms: T/T, Paypal, Western Union
Detail Information
Product Description
ratings& Reviews
Detail Information
Place of Origin:
Beijing
Certification:
ISO, CE, GOST
Supply Ability:
500pcs per month
Highlight:

hammer testing concrete

,

hammer test on concrete

Product Description

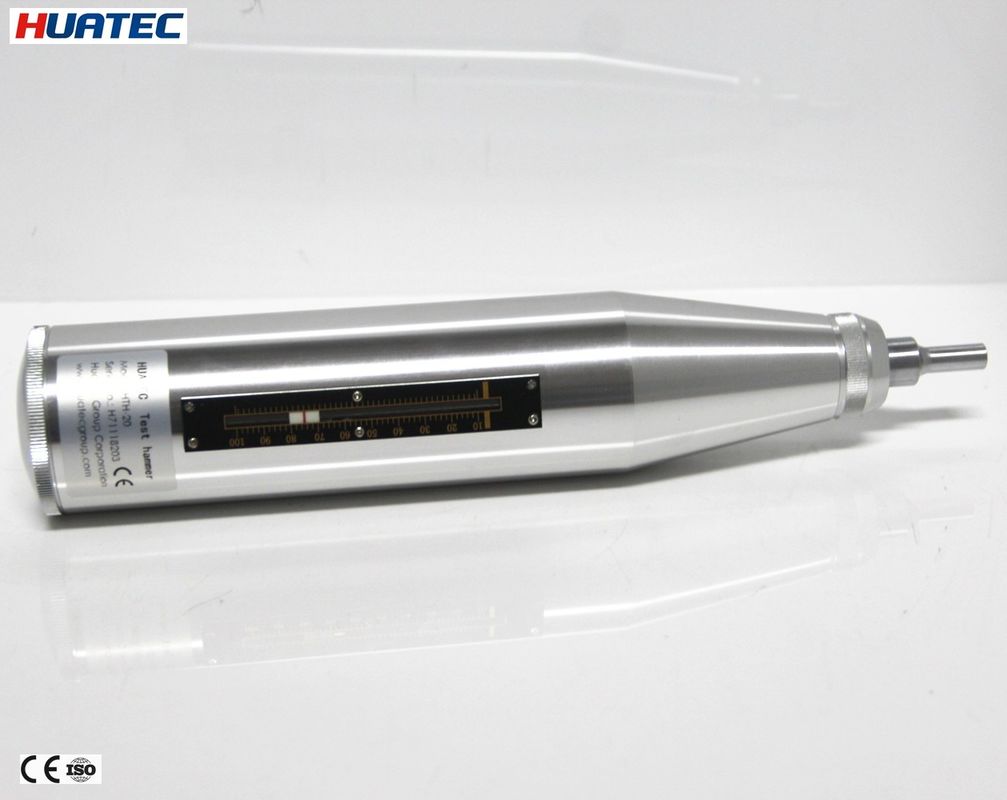

0.196J Concrete Test Hammer / Mortar Strength Testing 1.0 - 25 Mpa





Motar test hammer
1.Al alloy or plastic shell
2.Easy operation, type-in-one
3.test hardness and strength
4.N W: 0.8kg


Brief introduction:

This instrument is specially used in testing the compressive strength of mortar in building brick component.

Trait:

1)Center rod use imported materials, high precision, wear proof.

2)Shell made from super hard aluminum, perfectly protect instrument from damage on site work, and prolong use life.；

3)Pointer slider is outside ring structure, easy to adjust friction, and assure the equal friction between pointer slider and axis, so that assure the accuracy of instrument. Compare with other brand similar product, it’s better accuracy, longer use life.



Parameter:

Test range: 1.0~25Mpa

Standard impact energy: 0.196J(0.02kgf.m)

Stroke of rebound hammer: 75mm

Friction of pointer slider: 0.4N~0.6N

Sphere radius of rebound pole SR: 25mm

Average rebound hammer on steel anvil: 74±2

Size: Φ54*268mm

Weight: ≈1KG
