Touch Screen Rockwell Hardness Tester Closed Loop Control System

  • Touch Screen Rockwell Hardness Tester Closed Loop Control System
  • Touch Screen Rockwell Hardness Tester Closed Loop Control System
  • Touch Screen Rockwell Hardness Tester Closed Loop Control System
Place of Origin Beijing
Brand Name HUATEC
Certification ISO, CE, GOST
Model Number HR-150DT-P
Minimum Order Quantity 1pcs
Packaging Details Standard export plywood package
Delivery Time 4days
Payment Terms T/T, Paypal, Western Union
Supply Ability 500pcs per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Sensor Electric Loading, High Precision Sensor Touch Screen Touch Screen 8 Inch
Value Correction Automatic Correction Data Procession HR, HB, HV And Other Hardness System Conversion
Test Result Test Results Can Be Stored, Processed And Printed Automatically Initial Test Force 10kgf(98.07N)
Total Test Force 60kgf(588N) 100kgf(980N) 150kgf(1471N) Rockwell Hardness Scale HRA、HRB、HRC、HRD、HRE、HRF、HRG、HRH、HRK、 HRL、HRM、HRR、HRP、HRS、HRV
Measurement Range HRE:70-100 HRL:100-120 HRM:85-110 HRR:114-125 Data Memory Can Save 20 Different Kinds Of Results, Built-in Printer And RS-232
Max Height Of Specimen 200mm The Distance From Indenter Center To The Wall 200mm
Machine Size 560×200×800mm Weight 70kgs
Power AC220+5%,50～60Hz
Highlight

touch screen rockwell hardness tester

,

closed loop control rockwell hardness tester

,

touch screen rockwell hardness testing machine
Leave a Message
Product Description

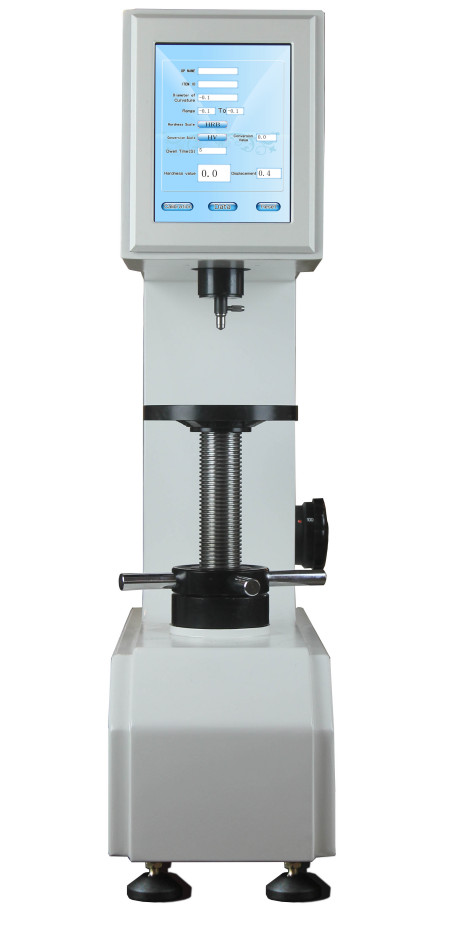

Touch Screen Closed Loop Control System Rockwell Scale Rockwell Testing Superficial Hardness Tester





Usage Range:

Surface hardness steel, material surface heat treatment and chemical processing, copper, aluminum, zinc, tin plate, chrome materials, bearing steel, cold hard castings, etc.





Main features:

  1. Electric loading, high precision sensor.
  2. Touch screen, easy to operate.
  3. According to the standard hardness block, each hardness scale is divided into high, middle and low sections for automatic correction.
  4. Built-in convex cylinder hardness value corrected.
  5. Powerful data processing function, including: HR, HB, HV and other hardness system conversion, set the qualified range, exceed the automatic alarm, can input tester, sample name and other information.
  6. Test results can be stored, processed and printed automatically



Technical specification:

Model HR-150DT-P
Initial test force 10kgf(98.07N)
Total test force 60kgf(588N) 100kgf(980N) 150kgf(1471N)
Rockwell hardness scale HRA,HRB,HRC,HRD,HRE,HRF,HRG,HRH,HRK, HRL,HRM,HRR,HRP,HRS,HRV
Measurement range HRE:70-100 HRL:100-120 HRM:85-110 HRR:114-125
Dwell time 0-99s
Hardness resolution 0.1HR
Test force accuracy

＜1.0%
Data output LCD display
Touch screen 8 inch
Data storage Can save 20 different kinds of results, built-in printer and RS-232
Carried standard GB/T230.2, GB/T3398.2, JB/T7409
Max height of specimen 200mm
The distance from indenter center to the wall 200mm
Dimension 560×200×800mm
Weight 70kg
Power AC220+5%,50～60Hz


Operation Interface:

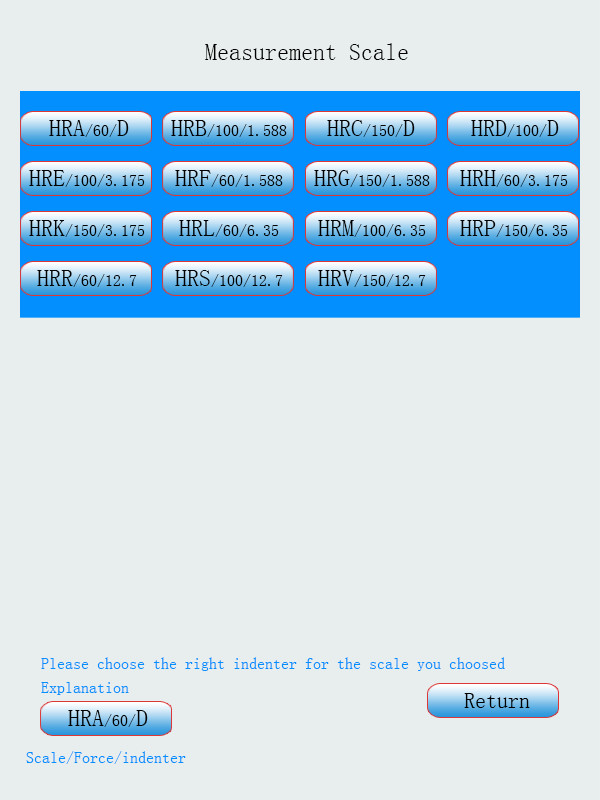

Touch Screen Rockwell Hardness Tester Closed Loop Control System 0



All Rockwell scales, 15 in total



Touch Screen Rockwell Hardness Tester Closed Loop Control System 1







Automatic correction of high, medium and low hardness numbers

Touch Screen Rockwell Hardness Tester Closed Loop Control System 2



Automatic correction of load

Touch Screen Rockwell Hardness Tester Closed Loop Control System 3



Standard accessories:

Item Quantity Item Quantity
U disk, touch pen Each 1 Large, medium, V shaped test table Each 1
Ball indenter(φ3.175,6.35,12.7mm) 3 Standard test block(HRE,HRL,HRM,HRR) 4
Level 1 Regulating screw 4
Power cord 1 Anti-dust bag 1
Certificate, warranty card 1 Manual 1
