HUATEC GROUP CORPORATION Company Profile
products
Home > products > Rockwell Hardness Tester > Touch Screen Rockwell Hardness Tester Closed Loop Control System

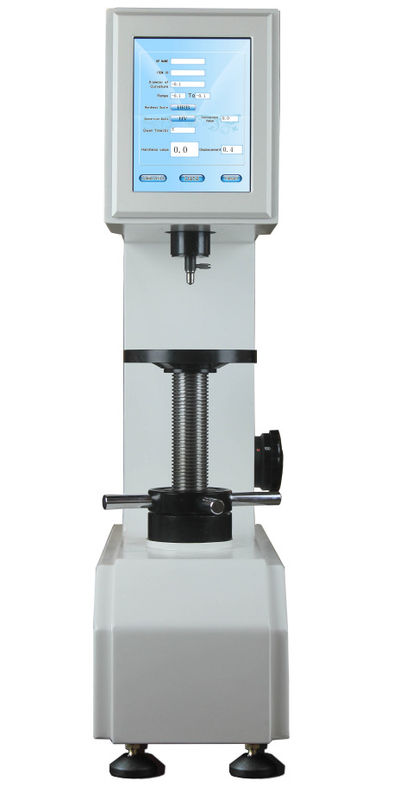

Touch Screen Rockwell Hardness Tester Closed Loop Control System
Touch Screen Rockwell Hardness Tester Closed Loop Control System
Touch Screen Rockwell Hardness Tester Closed Loop Control System

Touch Screen Rockwell Hardness Tester Closed Loop Control System

Product Details

Place of Origin: Beijing

Brand Name: HUATEC

Certification: ISO, CE, GOST

Model Number: HR-150DT-P

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Packaging Details: Standard export plywood package

Delivery Time: 4days

Payment Terms: T/T, Paypal, Western Union

Supply Ability: 500pcs per month

Get Best Price

Product Details

Product Description
Product Details
Highlight:

touch screen rockwell hardness tester

,

closed loop control rockwell hardness tester

,

touch screen rockwell hardness testing machine

Sensor:
Electric Loading, High Precision Sensor
Touch Screen:
Touch Screen 8 Inch
Value Correction:
Automatic Correction
Data Procession:
HR, HB, HV And Other Hardness System Conversion
Test Result:
Test Results Can Be Stored, Processed And Printed Automatically
Initial Test Force:
10kgf(98.07N)
Total Test Force:
60kgf(588N) 100kgf(980N) 150kgf(1471N)
Rockwell Hardness Scale:
HRA、HRB、HRC、HRD、HRE、HRF、HRG、HRH、HRK、 HRL、HRM、HRR、HRP、HRS、HRV
Measurement Range:
HRE:70-100 HRL:100-120 HRM:85-110 HRR:114-125
Data Memory:
Can Save 20 Different Kinds Of Results, Built-in Printer And RS-232
Max Height Of Specimen:
200mm
The Distance From Indenter Center To The Wall:
200mm
Machine Size:
560×200×800mm
Weight:
70kgs
Power:
AC220+5%,50～60Hz
Sensor:
Electric Loading, High Precision Sensor
Touch Screen:
Touch Screen 8 Inch
Value Correction:
Automatic Correction
Data Procession:
HR, HB, HV And Other Hardness System Conversion
Test Result:
Test Results Can Be Stored, Processed And Printed Automatically
Initial Test Force:
10kgf(98.07N)
Total Test Force:
60kgf(588N) 100kgf(980N) 150kgf(1471N)
Rockwell Hardness Scale:
HRA、HRB、HRC、HRD、HRE、HRF、HRG、HRH、HRK、 HRL、HRM、HRR、HRP、HRS、HRV
Measurement Range:
HRE:70-100 HRL:100-120 HRM:85-110 HRR:114-125
Data Memory:
Can Save 20 Different Kinds Of Results, Built-in Printer And RS-232
Max Height Of Specimen:
200mm
The Distance From Indenter Center To The Wall:
200mm
Machine Size:
560×200×800mm
Weight:
70kgs
Power:
AC220+5%,50～60Hz
Product Description

Touch Screen Closed Loop Control System Rockwell Scale Rockwell Testing Superficial Hardness Tester





Usage Range:

Surface hardness steel, material surface heat treatment and chemical processing, copper, aluminum, zinc, tin plate, chrome materials, bearing steel, cold hard castings, etc.





Main features:

  1. Electric loading, high precision sensor.
  2. Touch screen, easy to operate.
  3. According to the standard hardness block, each hardness scale is divided into high, middle and low sections for automatic correction.
  4. Built-in convex cylinder hardness value corrected.
  5. Powerful data processing function, including: HR, HB, HV and other hardness system conversion, set the qualified range, exceed the automatic alarm, can input tester, sample name and other information.
  6. Test results can be stored, processed and printed automatically



Technical specification:

Model HR-150DT-P
Initial test force 10kgf(98.07N)
Total test force 60kgf(588N) 100kgf(980N) 150kgf(1471N)
Rockwell hardness scale HRA,HRB,HRC,HRD,HRE,HRF,HRG,HRH,HRK, HRL,HRM,HRR,HRP,HRS,HRV
Measurement range HRE:70-100 HRL:100-120 HRM:85-110 HRR:114-125
Dwell time 0-99s
Hardness resolution 0.1HR
Test force accuracy

＜1.0%
Data output LCD display
Touch screen 8 inch
Data storage Can save 20 different kinds of results, built-in printer and RS-232
Carried standard GB/T230.2, GB/T3398.2, JB/T7409
Max height of specimen 200mm
The distance from indenter center to the wall 200mm
Dimension 560×200×800mm
Weight 70kg
Power AC220+5%,50～60Hz


Operation Interface:

Touch Screen Rockwell Hardness Tester Closed Loop Control System 0



All Rockwell scales, 15 in total



Touch Screen Rockwell Hardness Tester Closed Loop Control System 1







Automatic correction of high, medium and low hardness numbers

Touch Screen Rockwell Hardness Tester Closed Loop Control System 2



Automatic correction of load

Touch Screen Rockwell Hardness Tester Closed Loop Control System 3



Standard accessories:

Item Quantity Item Quantity
U disk, touch pen Each 1 Large, medium, V shaped test table Each 1
Ball indenter(φ3.175,6.35,12.7mm) 3 Standard test block(HRE,HRL,HRM,HRR) 4
Level 1 Regulating screw 4
Power cord 1 Anti-dust bag 1
Certificate, warranty card 1 Manual 1
