Ferrous Metals Nonferrous Metals Rockwell Hardness Test Machine Hra Hrb Hrc

Product Details

Place of Origin: Beijing

Brand Name: HUATEC

Certification: ISO, CE, GOST

Model Number: HR-150C

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Packaging Details: Standard export plywood package

Delivery Time: 4days

Payment Terms: T/T, Paypal, Western Union

Supply Ability: 500pcs per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                ferrous metals rockwell hardness test machine, hra rockwell hardness test machine, nonferrous metals rockwell hardness tester


Initial Test Force:	10kgf(98.07N)	Total Test Force:	60kgf(588N) 100kgf(980N) 150kgf(1471N)
Rockwell Hardness Scale:	HRA, HRB And HRC	Measurement Range:	20-88HRA，20-100HRB，20-70HRC
Max Height Of Specimen:	190mm	The Distance From Indenter Center To The Wall:	140mm
Machine Size:	500X210X660mm	Weight:	80kgs

Initial Test Force:	10kgf(98.07N)
Total Test Force:	60kgf(588N) 100kgf(980N) 150kgf(1471N)
Rockwell Hardness Scale:	HRA, HRB And HRC
Measurement Range:	20-88HRA，20-100HRB，20-70HRC
Max Height Of Specimen:	190mm
The Distance From Indenter Center To The Wall:	140mm
Machine Size:	500X210X660mm
Weight:	80kgs

Product Description

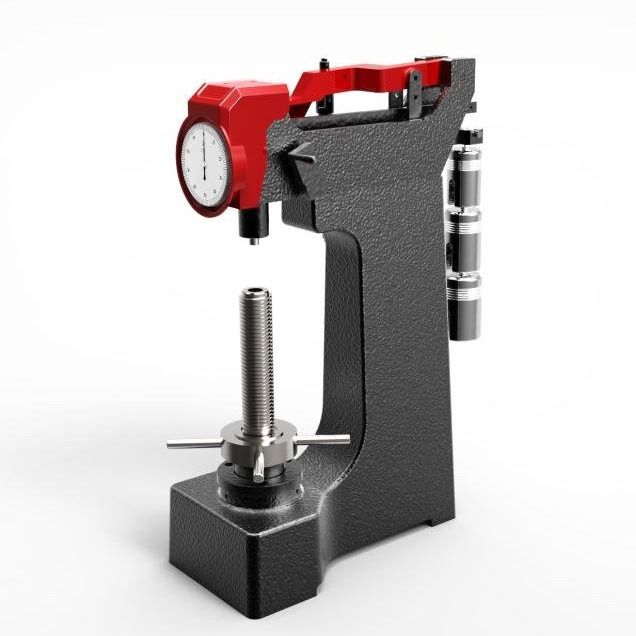

Ferrous Metals, Nonferrous Metals HRA HRB HRC Rockwell Hardness Test Machine

Usage Range:

Surface hardness steel, material surface heat treatment and chemical processing, copper, aluminum, zinc, tin plate, chrome materials, bearing steel, cold hard castings, etc.

Features:

New and unique appearance design, the main machine adopts all-cast iron structure, which is firm and durable;
It can measure HRA, HRB and HRC scales;
Simple and convenient operation

Applied Range:

It has a wide range of applications and is suitable for Rockwell hardness measurement of heat treatment such as quenching and tempering; Determine the Rockwell hardness of ferrous metals, nonferrous metals and non-metallic materials;

Technical Parameters:

Model	HR-150C
Scale	HRA,HRB,HRC
Hardness reading way	Dial pointer
Initial test force	10kgf(98.07N)
Initial test force	60kgf(588N) 100kgf(980N) 150kgf(1471N)
Measuring range	20-88HRA,20-100HRB,20-70HRC
Maximum height of specimen	190
Distance from indenter center to machine wall	140
Hardness resolution	0.5HR
Overall dimension	500X210X660mm
Weight	80kg

Standard Configuration

Name	Quantity	Name	Quantity
Host	1	Diamond indenter	1
￠1.5875mm Steel ball indenter	1	￠1.5875mm Standby steel ball	5
Large sample table(￠150mm)	1	Small sample table(￠55mm)	1
V-type sample platform(￠55mm)	1	Weights(A,B,C)	1
Hardness block	5	Product certificate	1
Product Use and Maintenance Manual	1	Packing list	1

Various hardness block optional
