Product Description

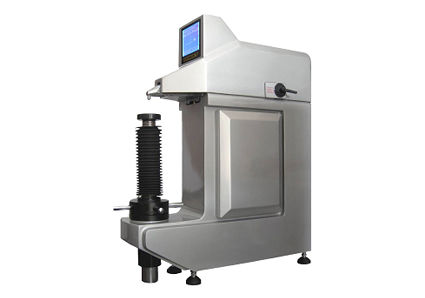

- Horizontal protrudent Indenter Design, suitable also for internal and external testing.
- Testing on Surfaces difficult to reach. Testing internal surface of rings and tubes with diameters over 23mm.
- Modern design with Titanium metallic Silver finish
- Can be used directly to measure Rockwell hardness for metal and plastic material.
- Provided with many features such as high measuring precision, wide measuring range with 15 Rockwell scales.
- The tester is suitable for testing of carbon steel, alloy steel, cast iron, non ferrous metal, and engineering plastic etc.
- Automatic load cycle. The loading, dwell, unloading process of the main test force are controlled exactly to meet standard.
- Measuring results digitally displaying and can be printed, or transmitted to external computer automatically by USB or RS-232 data output port.
- Test value can be transformed to the value of HB, HV, HLD, HK and σb value.
- The tester meeting all the following standard such as ISO 6508-2, ASTM E18.
- Preload:98.1N (10kgf)
- Total test force:588.4N (60kgf), 980.7N (100kgf), 1471N (150kgf)
- Scales:HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK,
- HRL, HRM, HRP, HRR, HRS, HRV
- Load dwell duration: 2～50s, can be set and stored
- Resolution :0.1HR
- Display:High definition backlight LCD
- Operation:Menu selectable, Membrane keypad
- Upper/lower limits setting & alarming
- Data statistics: Avg., Max., Min., S, R available
- Curved surface correcting automatically
- Memory: Max 500 items of test results stored automatically
- Data output: RS-232 to micro printer, USB port to external PC
- Testing space:260mm in vertical, 150mm in horizontal
- Dimensions: 710mm×210mm×830mm
- Power supply: AC, 220V/110V, 50～60Hz, 4A
- Net weight: 100kg
|
Standard configuration |
||
|
|
Host machine |
1 |
|
|
Standard hardness block for A scale |
1 |
|
|
Standard hardness block for B scale |
1 |
|
|
Standard hardness block for C scale |
1 |
|
|
ball indenter (1/16″) |
1 |
|
|
120°cone diamond indenter |
1 |
|
|
Mounting screws for indenter |
2 |
|
|
Flat anvil |
1 |
|
|
“V ”shape anvil |
1 |
|
|
Power supply wire |
1 |
|
|
Screwdriver for indenter mounting |
1 |
|
|
Dust cover |
1 |
|
Optional accessories: |
||
|
|
Short diamond indenter |
|
|
|
Chisel diamond indenter |
|
|
|
Slender diamond indenter |
|
|
|
1/8″ball indenter and spare steel ball |
|
|
|
1/4″ball indenter and spare steel ball |
|
|
|
1/2″ball indenter and spare steel ball |
|
|
|
φ225 anvil |
|
|
|
φ150 anvil |
|
|
|
Standard hardness block for other scales |
|
|
|
Micro printer |
|
