High Accuracy Vibration Meter Portable Vibration Monitor Automatic Power Off

  • High Accuracy Vibration Meter Portable Vibration Monitor Automatic Power Off
  • High Accuracy Vibration Meter Portable Vibration Monitor Automatic Power Off
  • High Accuracy Vibration Meter Portable Vibration Monitor Automatic Power Off
Place of Origin Beijing
Brand Name HUATEC
Certification ISO, CE, GOST
Model Number HG6450-5
Minimum Order Quantity 1pcs
Packaging Details Standard export package
Delivery Time 1-4days
Payment Terms T/T, Paypal, Western Union
Supply Ability 500pcs per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Accuracy + 5% + 2 Digits Acceleration 0.1 To 100 M/s2 / 0.01 To 10 G / 10Hz~3kHz Peak
Velocity 0.1 To 250 Mm/s / 0.01 To 15 Inch/s / 10Hz~1000Hz RMS Displacement 1 To 3000 µm / 0.03 To 120 Mil / 10 Hz~500Hz Peak-peak
Enveloped Acceleration 0.1 To 25 Unit / 5Hz~2kHz Demodulated From 3kHz~10kHz Temperature -33 To 220 OC / -27.4 To 428 OF
Battery 1/2 AA, 3.6V, 20-29mA, >100 Hours Of Continuous Operation Pickup Integrated Accelerometer With Extension Stinger And Magnet Base
Dimensions 110x35x17 Mm Weight 100 G (Including Batter
Highlight

vibration analyzer

,

digital vibration meter
Leave a Message
Product Description

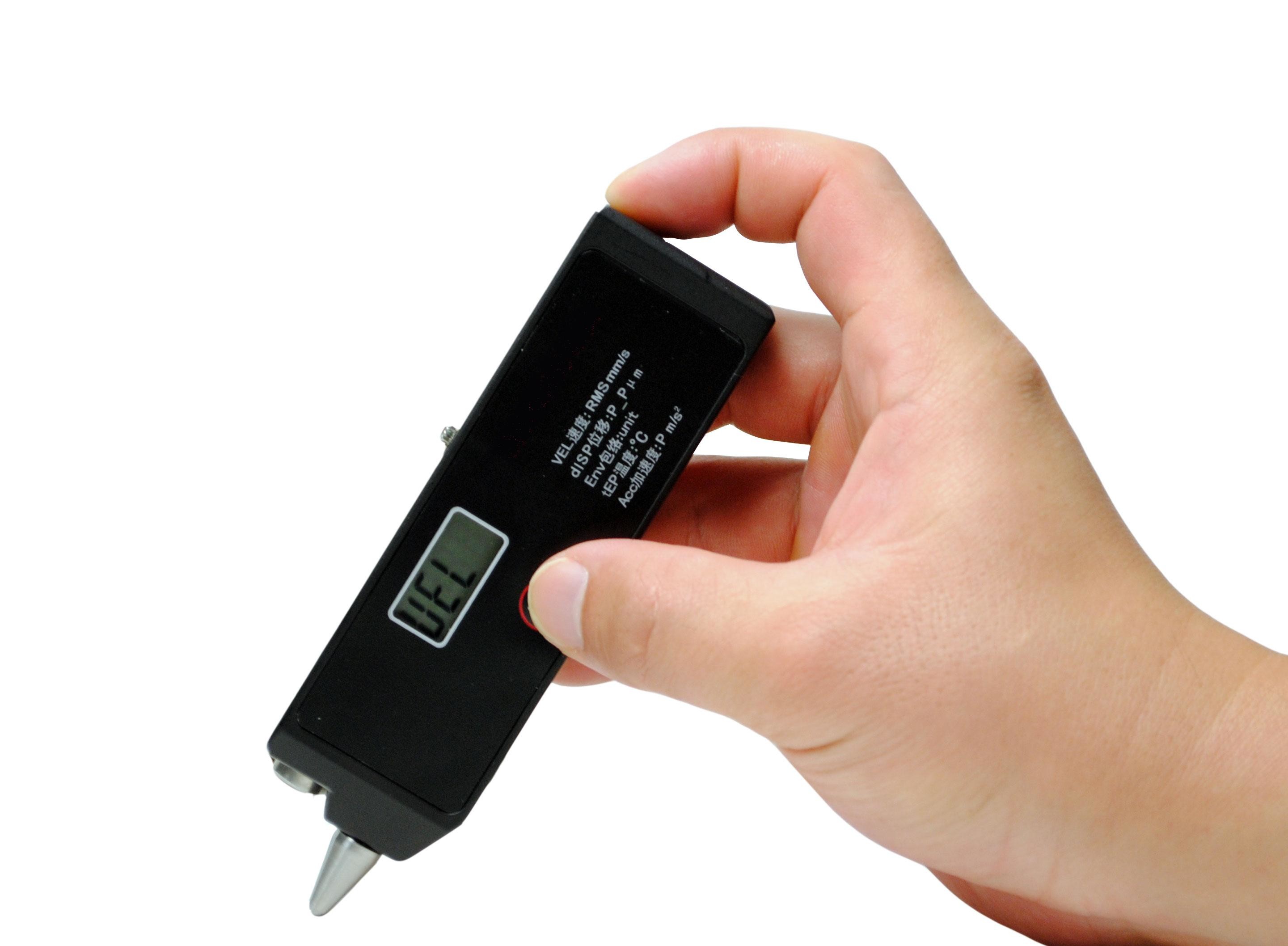

HUATEC HG6450-5 Pen Vibration Meter Portable Vibration Monitor Vibration Meters Handhel



Features:


Multi-parameter vibration, bearing parameter (acceleration envelope) & IR temperature measuring
One button control power, parameter selection, ISO10816 group selection, measurement and holding.
With remote switch and magnet base to avoid handheld problem to get reliable and consistent data.
Measuring vibration velocity, displacement & acceleration envelope to check machine/bearing health with yellow/red/green LED indicator
Build-in ISO10816-2 & -3 groups selectable
With magnet base and remote switch
Sensor included, Easy to use.
Automatic power off. 4 digital LCD display
Metal case, Robust, Reliable
Both Metric & English Unit selectable



High Accuracy Vibration Meter Portable Vibration Monitor Automatic Power Off 0High Accuracy Vibration Meter Portable Vibration Monitor Automatic Power Off 1



Specifications:

  • Liner Accuracy at 80Hz: + 5% + 2 digits
  • Measurement Range & Frequency Response & Accuracy:

Acceleration Peak (m/s2):1 to 100, 10~960Hz, ± 10%; 1 to 35, 20~950Hz, ± 5%

Velocity RMS (mm/s): 1 to 70 / 10Hz~1000Hz, ± 10%; 1.0 to 50, 20~1000Hz, ± 5%

Displacement P_P(micron): 1 to 500 / 20Hz~500Hz , ± 10%; 2 to 500, 20~450Hz, ± 5%

Enveloped Acceleration (unit): 1 to 25, 5Hz~2kHz demodulated from 3kHz~10kHz, ± 10%

Temperature(oC ):-33 to 220

  • Battery: 1/2 AA, 3.6V, 20-29mA, >100 hours of continuous operation.
  • Pickup: Integrated accelerometer with extension stinger and magnet base
  • Dimensions: 110x35x17 mm; Weight: 100 g (Including battery)

High Accuracy Vibration Meter Portable Vibration Monitor Automatic Power Off 2High Accuracy Vibration Meter Portable Vibration Monitor Automatic Power Off 3

High Accuracy Vibration Meter Portable Vibration Monitor Automatic Power Off 4High Accuracy Vibration Meter Portable Vibration Monitor Automatic Power Off 5
