Bluetooth Ultrasonic Thickness Gauge Measuring Wall Thickness Ultrasonic Thickness Probe

Place of Origin Beijing
Brand Name HUATEC
Certification ISO, CE, GOST
Model Number TG-2930
Minimum Order Quantity 1pcs
Packaging Details Standard export package
Delivery Time 1-4days
Payment Terms T/T, Paypal, Western Union
Supply Ability 500pcs per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Operating Principle ULTROSONIC Measuring Range 1.0-200mm, 0.05-8inch
Sound Velocity 500-9000m/s Display 5 Digits LCD With EL Backlight
Resolution 0.1mm Or 0.01mm Interface RS232C
Power Supply 4x1.5V AAA Battery Dimensions 126x65x27mm
Weight 81g Probe In Built, No Cable
Highlight

bluetooth ut thickness gauge

,

bluetooth ultrasonic gauge

,

lcd ultrasonic thickness gauge

Leave a Message
Product Description

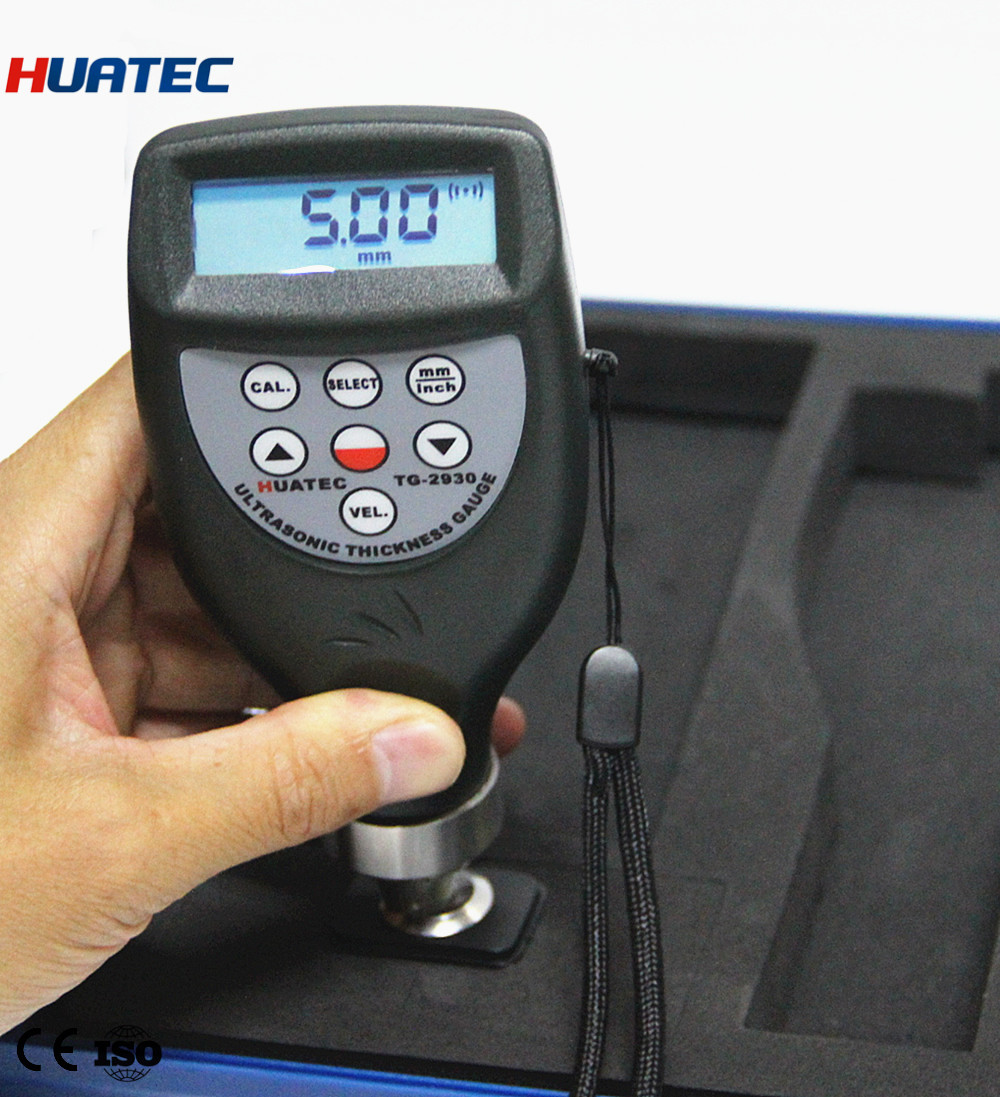

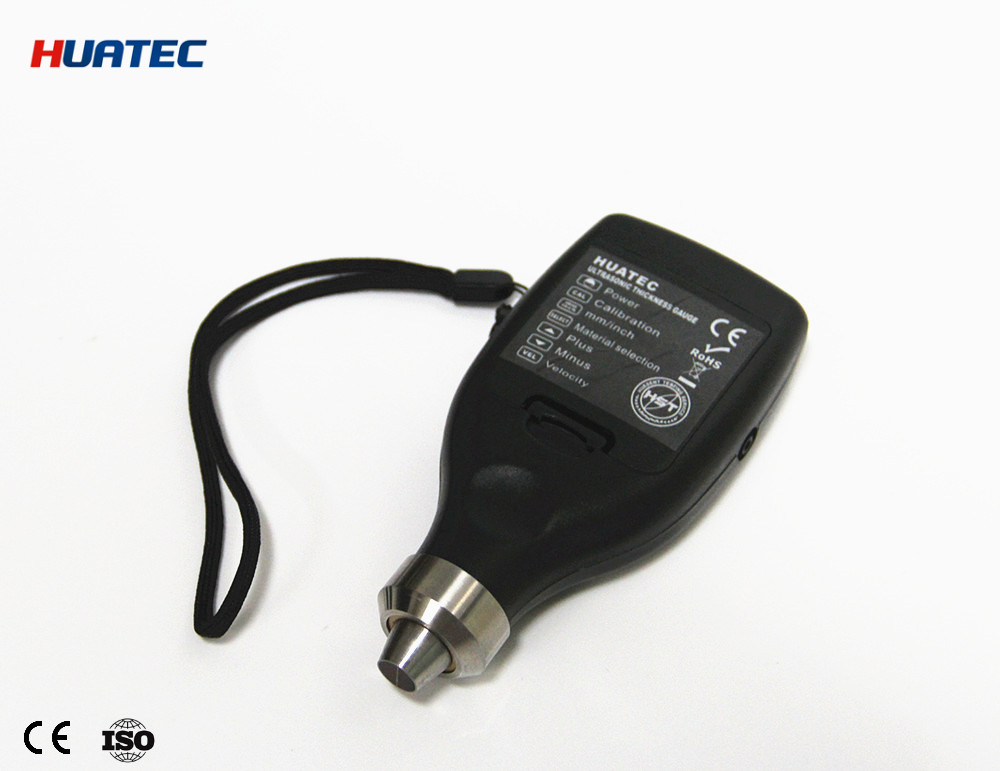

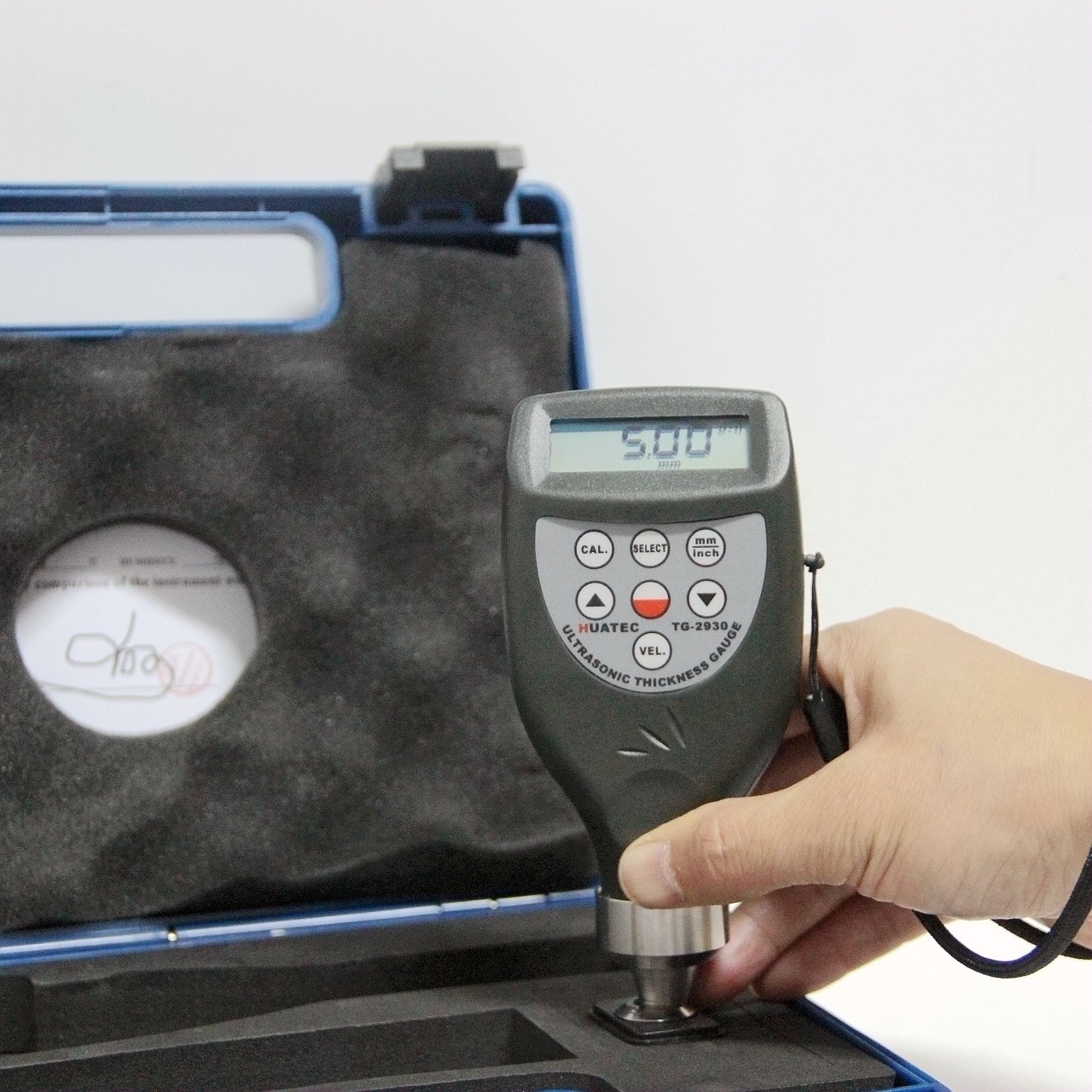

Bluetooth Ultrasonic Thickness Gauge measuring pipe wall thickness

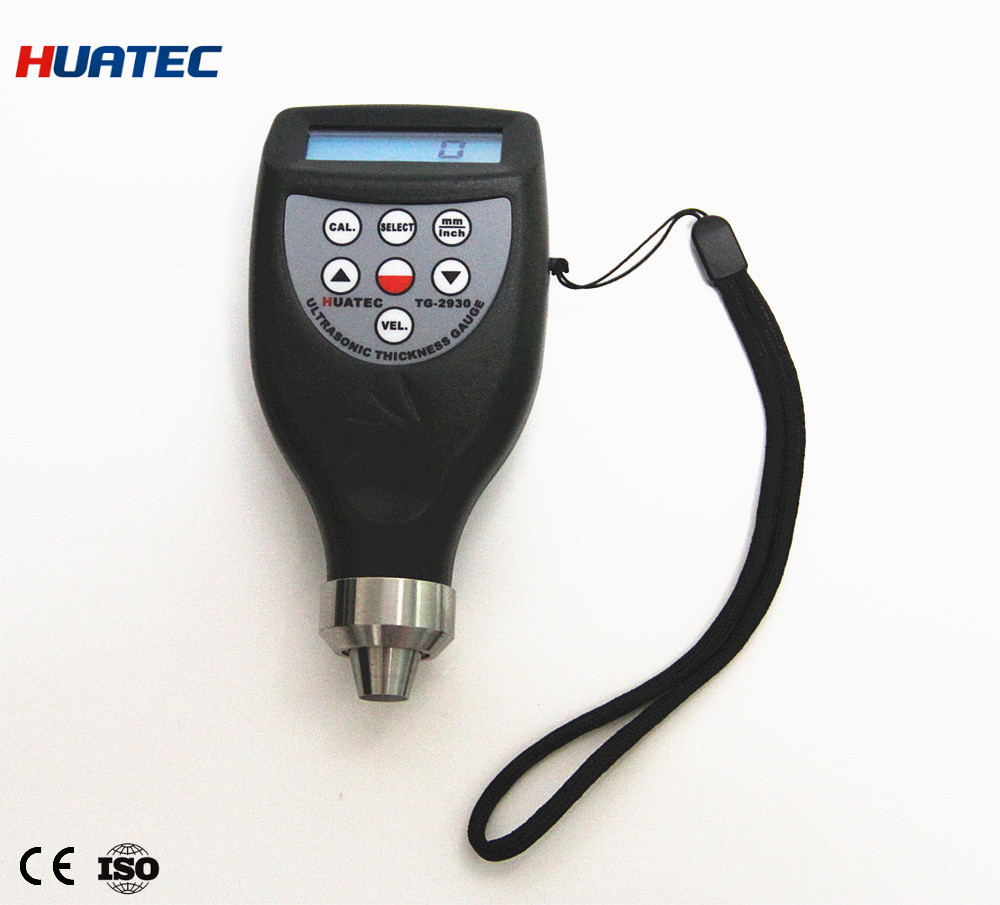

Bluetooth Ultrasonic Thickness Gauge Measuring Wall Thickness Ultrasonic Thickness Probe 0

Application:

Ultrasonic thickness gauge TG-2930 is used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc.in industries of petroleum, shipbuilding, power station, and machine manufacturing.



Measuring range (metric/imperial): 1.0-200mm, 0.05-8inch

Operating principle: ULTROSONIC

Materials measured: any hard materials, including steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, nodular cast iron and other materials

Sound velocity: 500-9000m/s

Lower limit steel pipes: ф15x2.0mm, ф20x3.0mm determined by the transducer

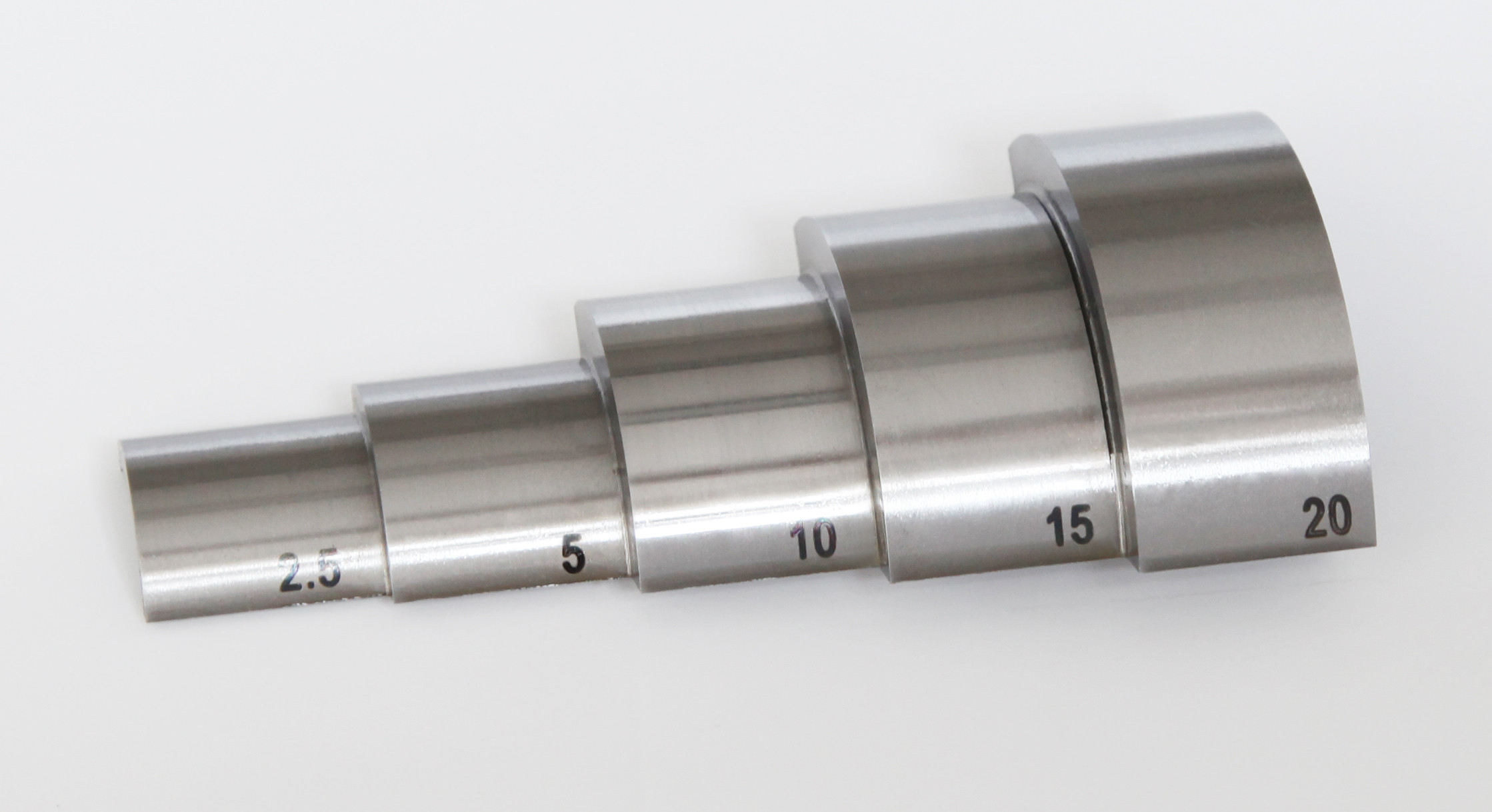

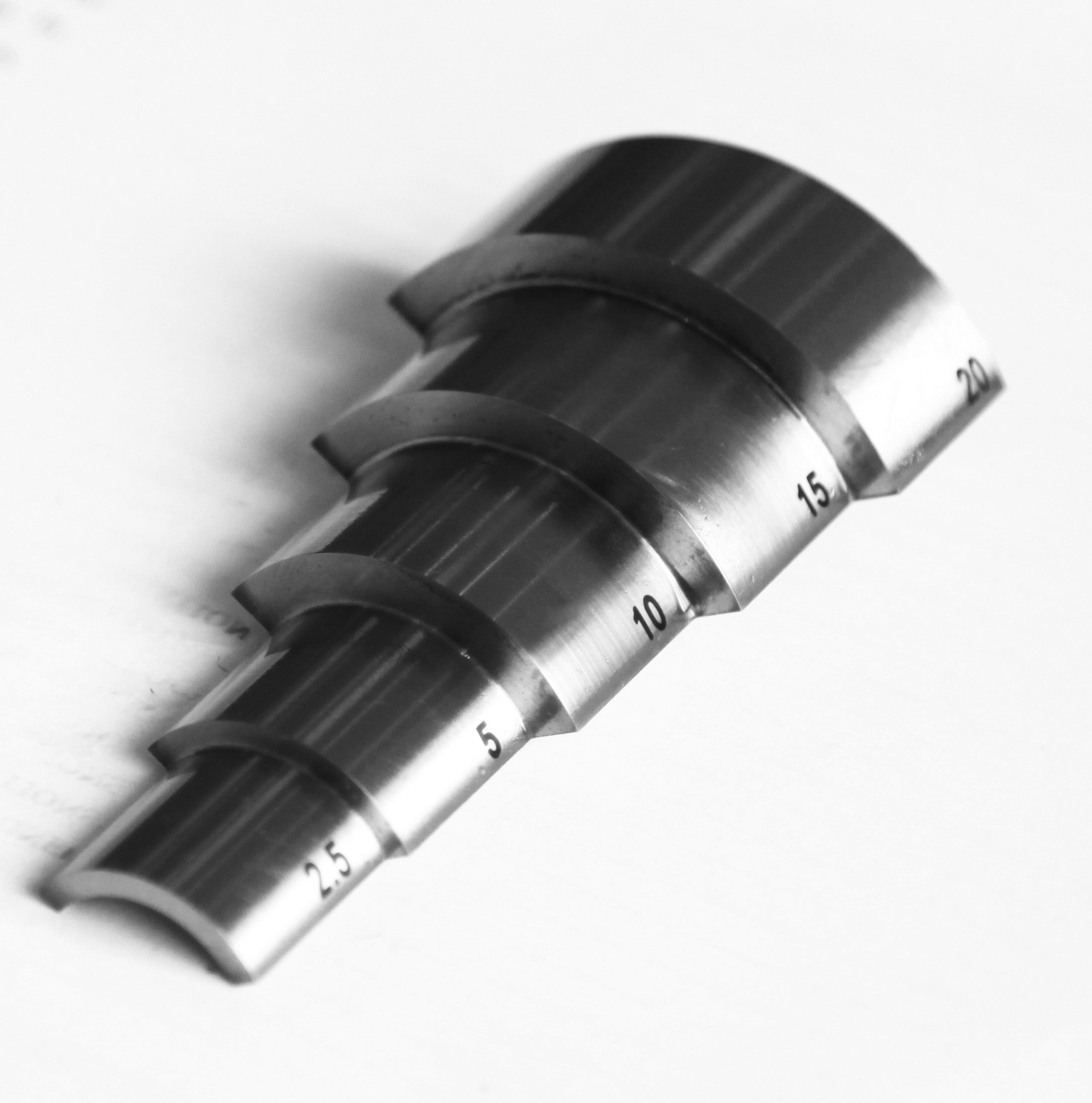

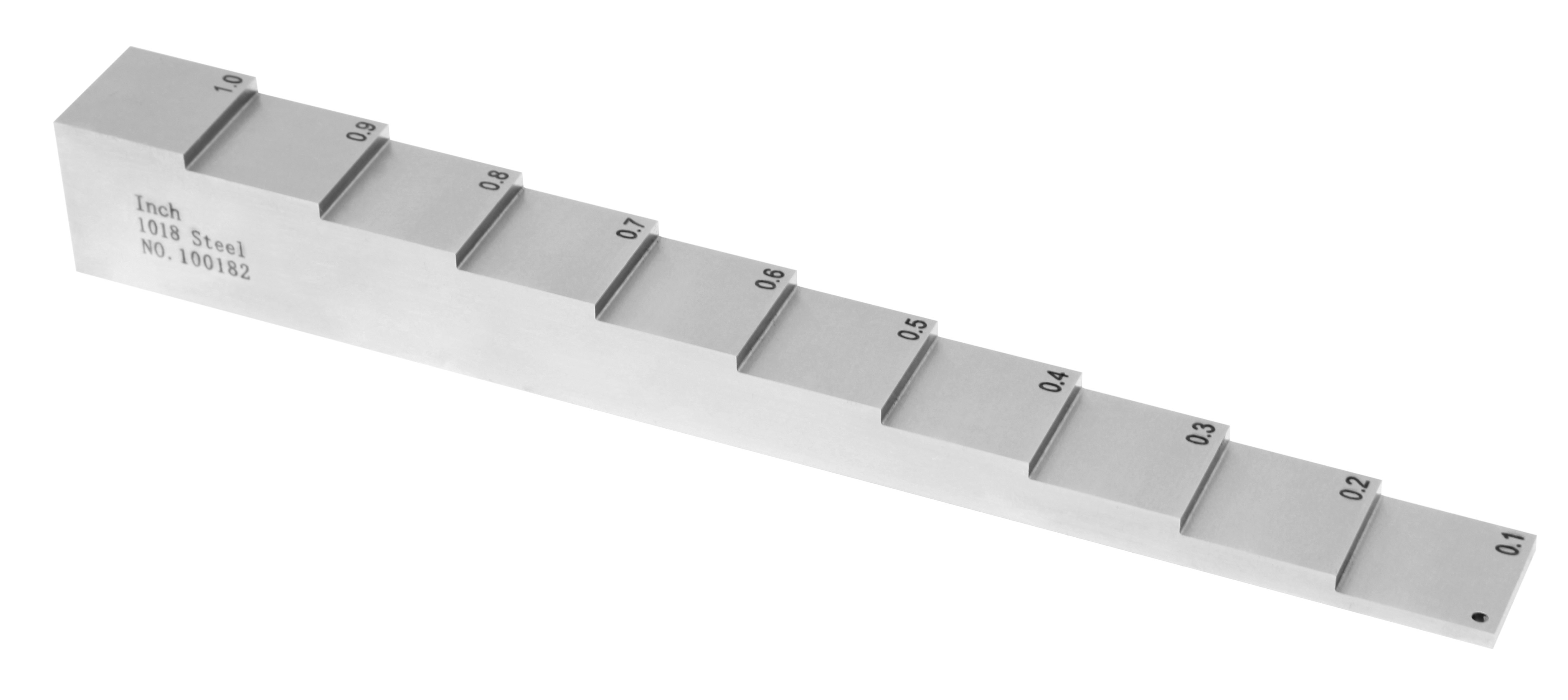

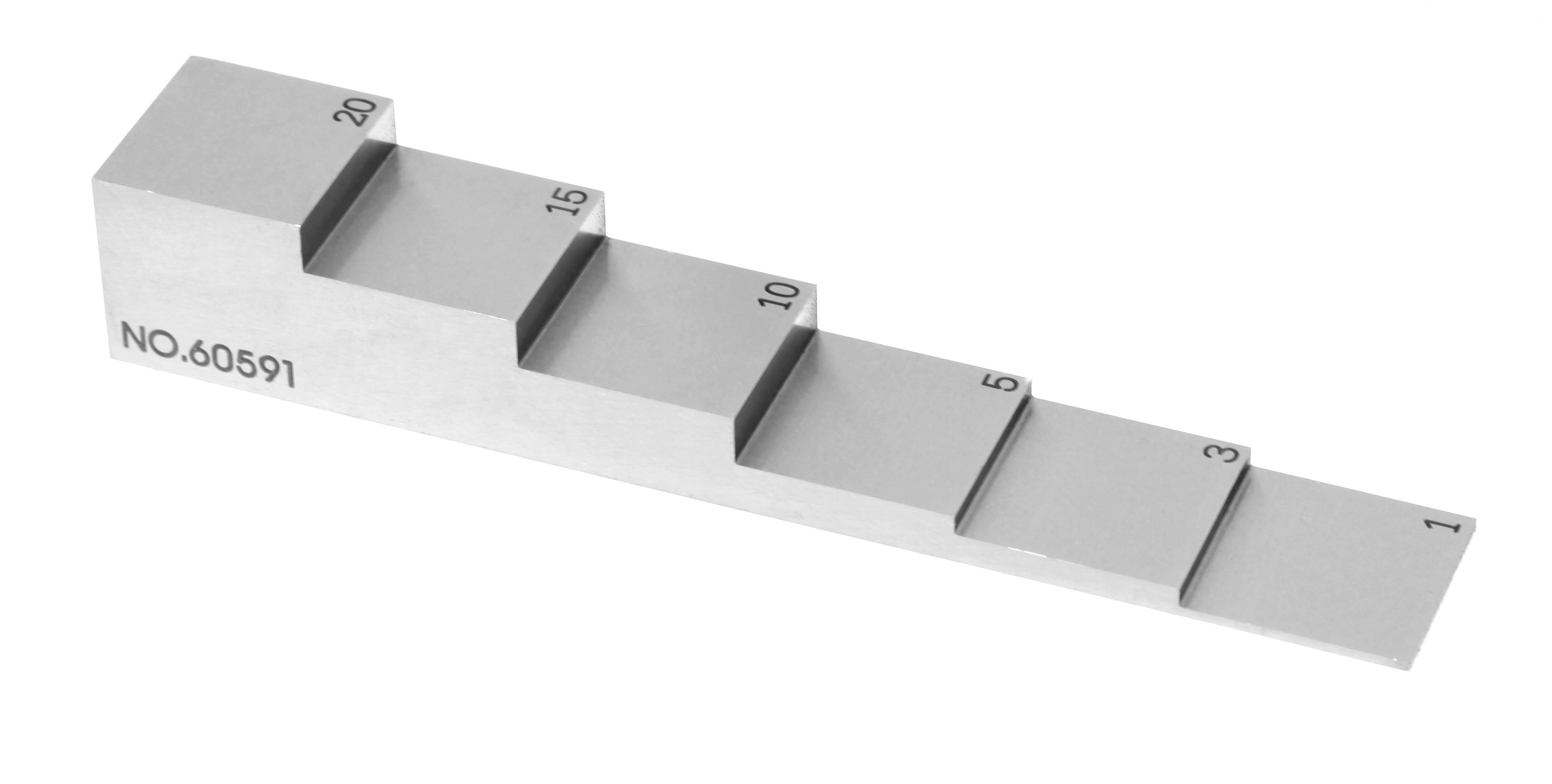

Calibration block: included

Display: 5 digits LCD with EL backlight

Resolution: 0.1mm or 0.01mm

Accuracy: ±(0.5%H+0.1)

Interface: with RS232C

Power supply: 4x1.5V AAA (UM-4)battery

Battery indicator: low battery indicator

Operating conditions:0-+45℃(32℉-104℉), ≤90%RH

Dimensions: 126x65x27mm

Weight: 81g(not including battery)

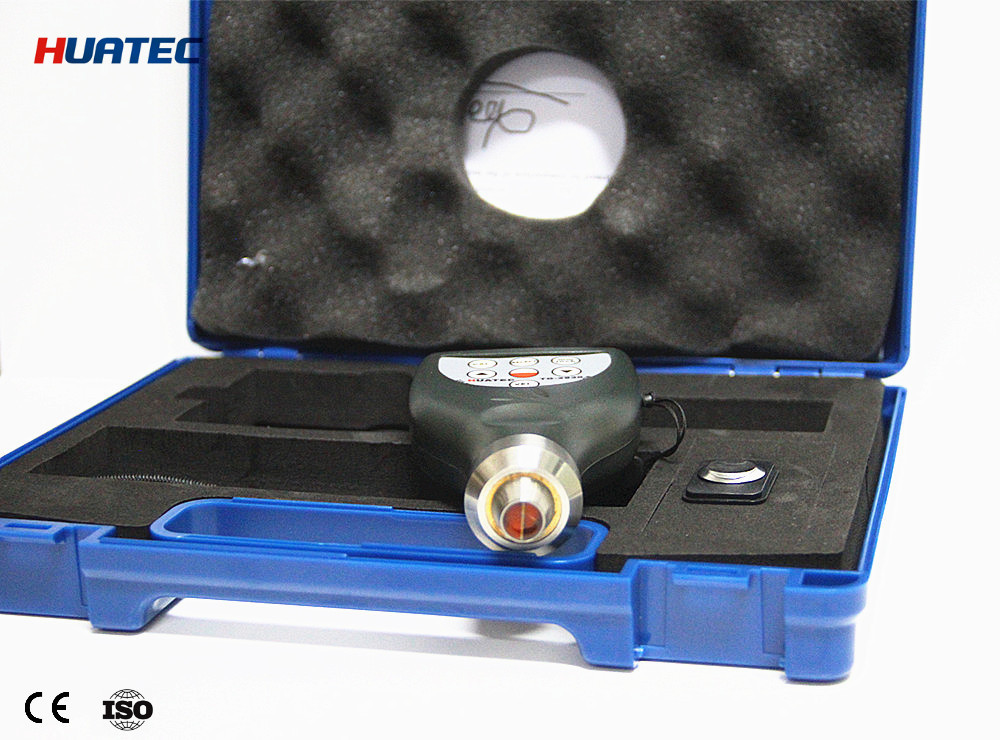

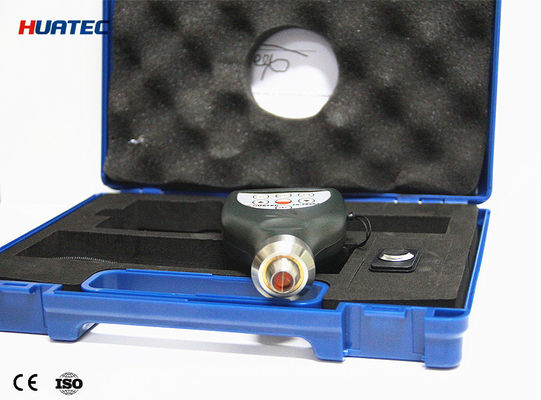

Standard Delivery

Main unit                                                1
5M Φ8 Transducer  inbuilt                     1
Couplant  bottle                                     1
Carrying case                                        1
Instruction manual                                 1



Optional Accessories

Cable and Software for RS232C interface

Bluetooth



Packaging and Shipping

Packaging: Standard export package, canton

Delivery: 3-7 days upon receipt of payment,depending on order quantity

Shipping: Can be shipped by sea, air or other means per request.



Our Services:

Warranty: One year

After sales service and maintenance: Lifelong



Sound velocity

Platinum 0.130 3300
Plexiglass 0.110 1700
Polyethylene 0.070 1900
Polystyrene 0.0930 2400
Polyurethane 0.0700 1900
Quartz 0.230 5800
Rubber, Butyl 0.070 1800
Silver 0.140 3600
Steel, Mild 0.232 5900
Steel, Stainless 0.230 5800
Teflon 0.060 1400
Tin 0.130 3300
Titanium 0.240 6100
Tungsten 0.200 5200
Uranium 0.130 3400
Water 0.584 1480
Zinc 0.170 4200
