-0.08Mpa Vacuum Metallographic Inlay Machine / Specimen Mounting Press Equipment

Place of Origin Beijing
Brand Name HUATEC
Certification ISO, CE, GOST
Model Number HVM-2
Minimum Order Quantity 1pcs
Packaging Details Standard export package
Delivery Time 1-4days
Payment Terms T/T, Paypal, Western Union
Supply Ability 500pcs per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Vacuum Chamber Dimensions φ100mm Height 50mm Vacuum -0.08Mpa
Input Voltage 220V,50Hz Overall Dimension 290 X 240 X 220mm
Highlight

vickers hardness machine

,

portable brinell hardness tester

Leave a Message
Product Description

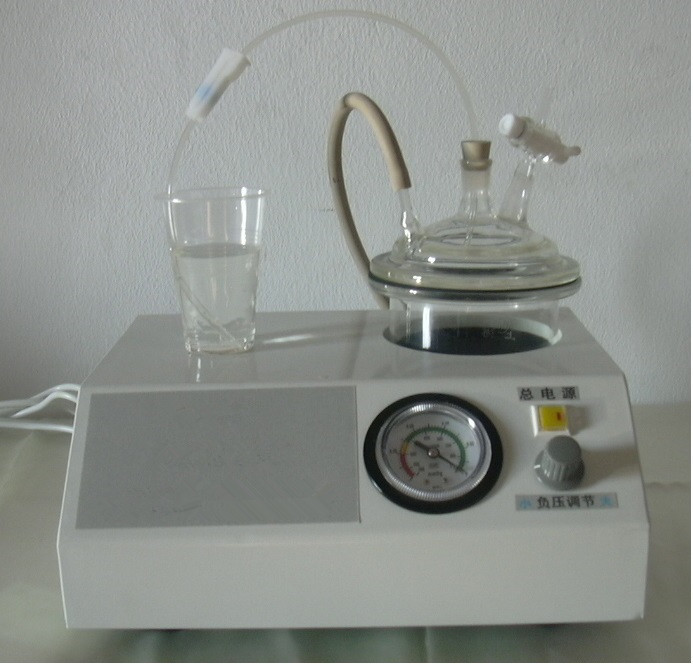

-0.08Mpa Vacuum Metallographic Inlay Machine / Specimen Mounting Press Equipment



Main Feature

Model HVM-2 Vacuum inlaying machine is a special sample set of equipment in the cold.

Through to the samples and set with resin vacuum, can remove samples and set the gases of the resin. Hole in the sample will be set with resin filling, samples and set between resin doesn't appear aperture.

At the same time 5-8 inlays 30 mm diameter of the samples

The Vacuum Inlaying Machine can be applied to various samples of cold inlaid, especially the circuit board, powder metallurgy material Mosaic; In the electronics industry, it can cooperate with stain, used for inspection of weld defects.

The Vacuum Inlaying Machine has two work modes:

Place the inlaying materials and samples in the inlaying membrane, vacuum of it at the same time, the vacuum time is short and in high efficiency

Vacuum to sample first, then join the inlay material under the condition of vacuum, at the end vacuum on inlay material and sample.In this way, the samples of gap filling more complete and closely



Technical Specifications

Overall Dimension: 290 X 240 X 220mm

The vacuum chamber size: diameter 100mm Height 50mm, This size can be customized.

Vacuum: -0.08Mpa

Power supply: 220V, 50W



Packaging and Shipping

Packaging: Standard export package, wooden case

Delivery: 5-10 days upon receipt of payment,depending on order quantity

Shipping: Can be shipped by sea, air or other means per request.



Our Services:

Warranty: One year

After sales service and maintenance: Lifelong
