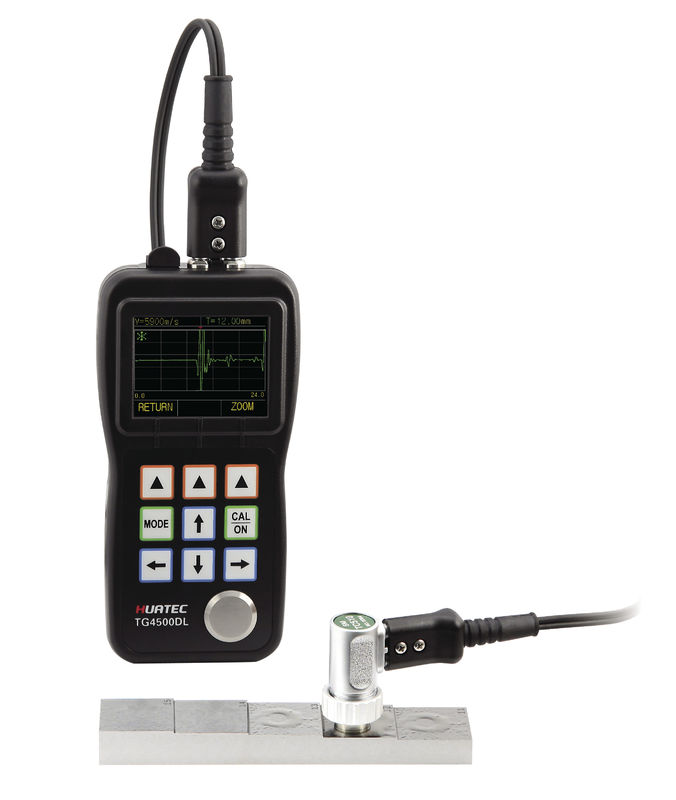

A-Scan Snapshot Ultrasonic Plastic Film Wall Thickness Gauge

Brand Name: HUATEC
Model Number: TG-4500 series
MOQ: 1pcs
Packaging Details: Standard export package
Payment Terms: T/T, Paypal, Western Union
Detail Information
Product Description
ratings& Reviews
Detail Information
Place of Origin:
Beijing
Certification:
ISO, CE, GOST
Scan Mode:
A-Scan Snapshot
Through Coating:
Echo-Echo Mode(Thru Paint & Coatings)
Memory:
Stores 100,000 Readings
Display:
2.4" Color OLED, 320X240 Pixels, Contrast 10,000:1
Measuring Range:
.60mmto 508mm(0.025" To 20.00")
Gain:
Low, Medium Or High For Varying Test Conditions
Supply Ability:
500pcs per month
Highlight:

portable ultrasonic thickness gauge

,

digital ultrasonic thickness gauge

Product Description

A-Scan Snapshot TG4500 Series Ultrasonic Thickness Gauge
A-Scan Snapshot Ultrasonic Plastic Film Wall Thickness Gauge 0

 Features:
Color 320x240 Pixels Display
A-Scan Snapshot
Echo-Echo Mode(Thru Paint & Coatings)
Stores 100,000 Readings
Gain: Low, Medium or High for varying test conditions
Specifications


Feature

TG-4500

TG-4500D

TG-4500DL

Data Logger Option

Color Display

  •
  •
  •



A-Scan Snapshot

  •
  •
  •



Gain: Low, Medium, High

  •
  •
  •



Min/Max Capture

  •
  •
  •



DIFF/RR%

  •
  •
  •



Thru-paint

X

  •
  •



Data Logger

X

X

  •
  •

Data View Software

X

X

  •
  •




Instrument Specifications

Display Type

2.4" color OLED, 320X240 pixels, contrast 10,000:1

Operating Principle

Pulse echo with dual element transducers

Measuring Range

0.60mmto 508mm(0.025" to 20.00"), depending on material, probe  and surface condition

MeasuringResolution

Selectable 0.01mm, 0.1mm(selectable 0.001", 0.01")

Units

Inch or Millimeter

Gain

Low, Medium or High for varying test conditions

Display Mode

Normal, Minimum / Maximum capture, DIFF/RR%

V-Path Correction

Automatic

Update Rate

Selectable 4Hz, 8Hz, 16Hz

MaterialVelocity Range

500 to 9999m/s (0.0197 to 0.3937in/us)

Languages

Selectable Chinese, English, Japanese

Alarm Settings

Minimum and Maximum alarms. Range of 0.25 mm to 508 mm (0.010" to 20.00"). Dynamic waveform color change on alarm

Power Requirements

2 AA size batteries

Operating Time

Approximately 40 hours

Instrument Shut-off

Selectable ALWAYS ON or AUTO OFFafter 5, 10, 20 minutes of inactivity

Operating Temperature

-10°Cto +50°C (+10°F to +120°F)

Size

153mmX 76mm X 37mm(H X W X D)

Weight

280gincluding batteries



Data Logger Option Features

Capacity

400 files, 100,000 readings

File Structure

Grid file

Rows X Columns

21 X 12

CommunicationPort

USB 2.0 (Full Speed ) port

Software

Data View PC software



Standard Configurations

Thickness Gauge

1

Probe

1

Alkaline Battery

2

Couplant

1

Carrying Case

1

Operation Manual

1

USB Cable

1(Only TG-4500DL)

Software CD

1(Only TG-4500DL)



Optional Configurations

High-temperature Probe

Cast Iron Probe

Small Probe

Mini Probe

Probe Cable

Stepped Calibration Block

Rubber Sheath

Storage Option(Only TG-4500DL)
