Digital ABS USB Portable Hardness Tester HT-6710C

Product Details

Place of Origin: Beijing

Brand Name: HUATEC

Certification: ISO,CE

Model Number: HT-6710C

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Packaging Details: Standard export package

Delivery Time: 1-4days

Supply Ability: 5000pcs per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                usb portable hardness tester, abs portable hardness tester, usb surface hardness tester


Material:	ABS	Color:	Grey
Standards:	DIN 53505, ISO 868, ISO 7619, ASTMD 2240, JISK7215	Average:	With Average Calculate Function
Peak:	Peak Value Deposit Function	Alarm:	Under-voltage Alarm Function
Communication:	USB Or RS232	Bluetooth:	Bluetooth Capability , Optional
Stroke:	2.5mm	Pressure Load:	180g
Display:	4 Digits, 10mm LCD	Measuring Unit:	HC
Product Name:	Sand Mould Surface Hardness Tester	Load:	1500g

Material:	ABS
Color:	Grey
Standards:	DIN 53505, ISO 868, ISO 7619, ASTMD 2240, JISK7215
Average:	With Average Calculate Function
Peak:	Peak Value Deposit Function
Alarm:	Under-voltage Alarm Function
Communication:	USB Or RS232
Bluetooth:	Bluetooth Capability , Optional
Stroke:	2.5mm
Pressure Load:	180g
Display:	4 Digits, 10mm LCD
Measuring Unit:	HC
Product Name:	Sand Mould Surface Hardness Tester
Load:	1500g

Product Description

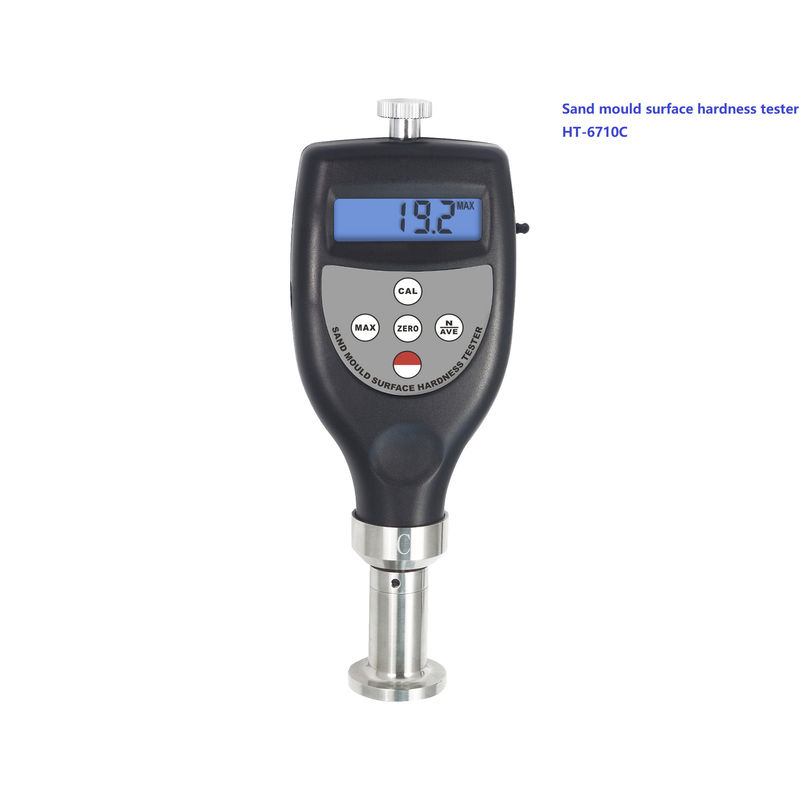

DIN 53505, ISO 868, ISO 7619 Pressure 180g Digital High Pressure Mould Wet Mould Surface Hardness Tester HT-6710C

General Application

The High Pressure Sand Mould Surface Hardness Tester is used to measure the surface hardness of the sand mould/core of the wet mold and provide technical parameters for the formulation of the molding process.

Features

* HT-6710C meets standards of DIN 53505, ISO 868, ISO 7619, ASTMD 2240, JISK7215.
* The surface hardness of sand mold is divided into three types: A, B and C, The common model is type B, among them:
Type A model HT-6710A: Suitable for the surface hardness test of fine sand mold/core in manual or mechanical low and medium pressure molding.
Type B model HT-6710B: Suitable for the surface hardness test of fine and coarse sand mold/core in manual or mechanical low and medium pressure molding.
Type C model HT-6710C: Suitable for the surface hardness test of sand mold in high pressure molding.
* The unit of type C hardness tester for sand mold surface is (g/mm²), but it is customary to use hardness H(A/B/C) instead of unit. Because their values are related and consistent, the corresponding hardness value is also large when the unit value is large (g/mm²).
* Average calculate function included.
* Peak value deposit function included.
* Under-voltage alarm function included.
* Use USB data output to connect with PC.
* Provide Bluetooth data output choice.

Selection Guide

Digital ABS USB Portable Hardness Tester HT-6710C 0

Specifications

Model/Type	HT-6710A	HT-6710B	HT-6710C
Stroke	2.50mm	2.50mm	2.50mm
Load	237g	980g	1500g
Pressure Load	90g	50g	180g
Shape and size of indenter	Spherical R2.50	Spherical R12.70	Spherical R1.20
Unit	HA	HB	HC
Display	4 digits, 10mm LCD
Parameters	Tested Result / Mean Value / Max. Value
Display Range	0H~100H(A/B/C)
Testing Range	10H~90H(A/B/C)
Accuracy	≤±1H(A/B/C)
Resolution	0.1H(A/B/C)
Battery Indicator	Low Battery Indicator
Auto Switch Off	√
Operating	Temperature: 0~40°C Humidity: <80%RH
Power Supply	2x1.5V AAA (UM-4) Battery
Dimensions	162mmx65mmx28mm
Weight	170g
Standard Accessories	Main Unit HT-6710C
	Carrying Case
	Operation manual and calibration certificate
Optional Accessories	USB Data Cable with Software
	Bluetooth Data Adapter with Software
