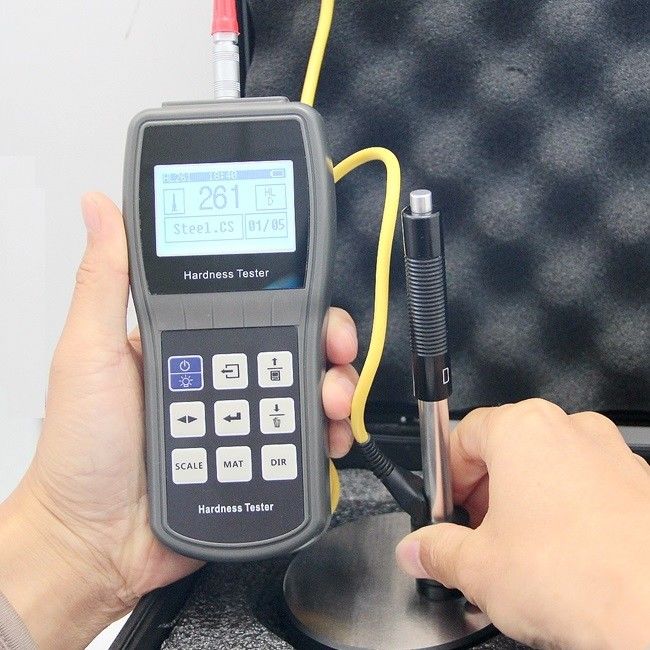

Portable Leeb Hardness Tester Device RHL350
Features
l Ultra-thin shell, more easily to hold
l Suitable for multiple impact device and 6 types of hardness scales are available for various applications
l Large and clear digital display
l Ultra-low power dissipation with three AAA batteries powered
Technical Specification:
l Hardness Scales:HL, HRC,HRB,HV,HB,HS
l Test Precision:HLD:±6 HRC:±1 HB:±4
l StandardImpact Device: impact device of Type D
l Upper / Lower Limits Setting:(170-960)HLD, (17.9-69.5)HRC, (19-683)HB, (80-1042)HV, (30.6-102.6)HS, (13.5-101.7)HRB
l Optional Impact Device:D/ C /DC / D+15 / DL/ G
l Number of Impact Devices Equipped With One Time: any
l PC Interface: USB 2.0
l Language:Chinese/English
l Screen Display:128X64 dot matrix LCD, backlight and adjustablecontrast
l Measuring Direction:360°(down,inclined down,level,inclined up and up)
l Data Memory :100 readings
l MaximumHardness of The Measured Work Piece:940HV(for D,DC,DL,D+15,C impact device)
l Radius of Rurvatureof The Measured Work: Rmin=50mm(If using Alien supporting ring, Rmin=10mm)
l Recognition Function:Recognize the type of the impact device by itself
l Measurable Material:Steel and cast steel, alloy tool steel, stainless steel,gray cast iron, nodular cast iron, aluminum casting alloy, copper zinc alloy(brass), copper tin alloy(bronze), fine copper
l Power Supply: 1.5V AAA battery ( 3 PCS)
l Working time: about 150 hours
l Shape Size:159mm*72mm*28mm
l Weight:540g
1 the shell
2 the screen display
3 the panel
4 the impact body
5 the support ring
6 the probe cable
7 ink ribbon
8 the battery(the damage caused by faulty operation problem)
