High Resolution Digital AC DC Magnetic Field Strength Meter Hall Effect Tesla Magnetometer

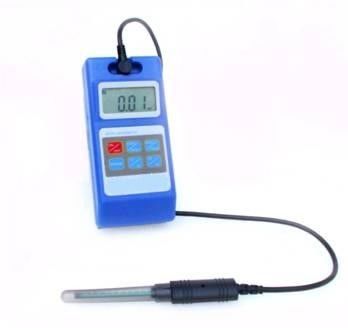

HGS-10E digital gaussimeter/tesla meter can accurately measure the magnetic induction intensity of ac and dc weak magnetic fields. It is a special instrument for detecting remanence and alternating weak magnetism of ferromagnetic material surface. The instrument can be carried around with a wide range, easy to operate and a clear LCD display.

Range of application

It is used to measure the surface remanence and dc magnetic field of steel tube, cast iron and other workpieces. The hall sensor can be equipped with longitudinal and transverse sensors according to customers' requirements.

Technical indicators

Range: 0~6mT

Discrimination: 0.001mT 0.0001mT

Frequency range: 10hz-200hz

Measured magnetic field: dc magnetic field (static magnetic field)

Ac magnetic field (dynamic magnetic field)

Ambient temperature: 5℃~40℃

Relative humidity: 20%~80% (no condensation)

Function description: peak holding function

Gs (gauss) /mT (mteslas) can be switched automatically

N/S polarity display during dc measurement

Press the button to zero quickly and automatically

Power supply: four no.5 dry batteries, external voltage regulator

Appearance size: 150mm×70mm×30mm

Instrument weight: 450g

Display mode: 4LCD

Display unit: mT/GS

Note: prepared 1 mt = 10 gs

Operation request:

1. Magnetic field distribution of material surface
2. Working magnetic field produced fro some instrument that as iron-removing device,magnet-selecting machine, magnet chuck, magnet spool and demagnetizing coil
3. Leakage Magnetic iron-surface
4. Do not use the instrument in unappropriate conditions.

5. If you find the value of testing were error in the status ofmeasurement,

   you could loosened the handle of the probe to adjust the screw of the resistance tinily.

6. If don’t ensure that the instrument is operated correctly described below, there would be error or mistake

7. Don’t attempt to repair, or disassemble, and any reconstruct this instrument.

8. Use only recommended power accessories.
9. Don’t connect the terminals of the outer power supply reversely. the inner is plus, the outer is minus.
10. Don’t drop this instrument or the probe down ground. It’ll be damaged by strong vibration.
11. Do not allow hands or other objects with dirt to touch the probe.
12. Avoid using, placing or storing the instrument in places subject to strong sunlight or high temperature, so as to humidity, water, oil, rust air, vibration and others.
