Single Phase X Ray Instrument Crystal Orientation Indicator

Product Details

Place of Origin: Beijing

Brand Name: HUATEC

Certification: ISO, CE, GOST

Model Number: HYX-3

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Packaging Details: Standard export package

Delivery Time: 1-4days

Payment Terms: T/T, Paypal, Western Union

Supply Ability: 500pcs per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                x ray instrument crystal orientation indicator, single phase x ray instrument


Input Power:	Single Phase AC220V、50HZ、0.5KW	Brand:	HUATEC
Crystal Bar Diameter:	6-8 Inches Crystal Bar	Crystal Bar Length:	150mm Max 180mm
Inoculating Crystal Diameter:	￠5-20	Inoculating Crystal Length:	150mm Max 180mm

Input Power:	Single Phase AC220V、50HZ、0.5KW
Brand:	HUATEC
Crystal Bar Diameter:	6-8 Inches Crystal Bar
Crystal Bar Length:	150mm Max 180mm
Inoculating Crystal Diameter:	￠5-20
Inoculating Crystal Length:	150mm Max 180mm

Product Description

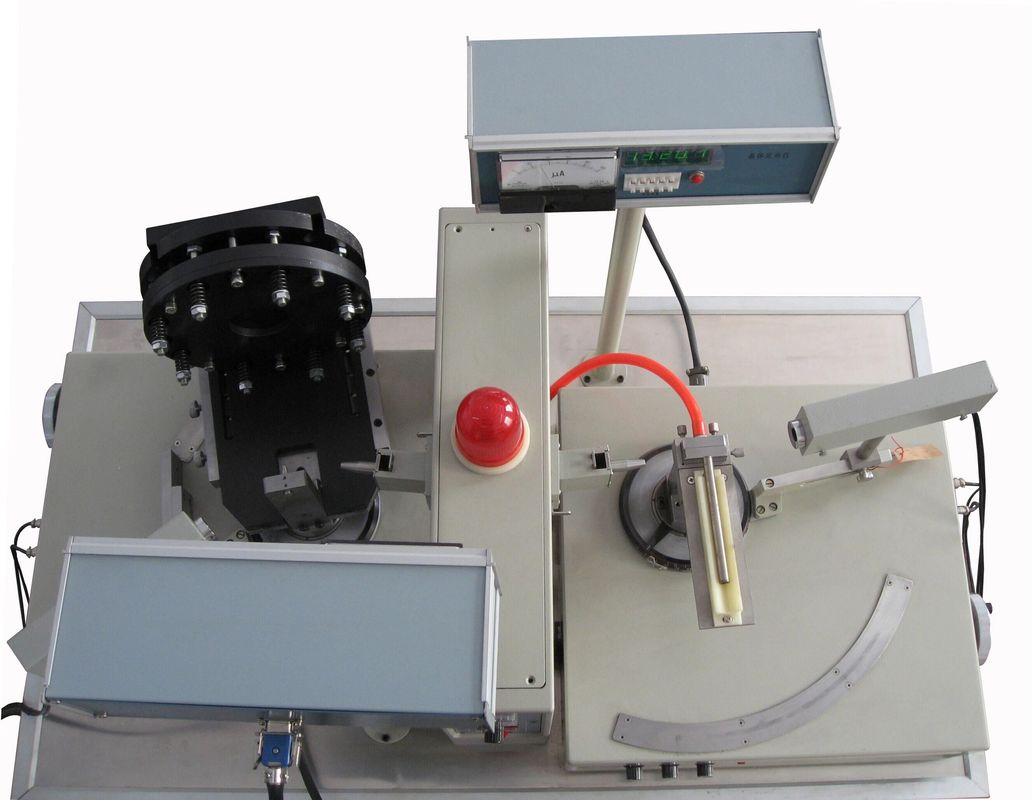

Seed Crystal Orientation Before Processing After Processing X-Ray Crystal Orientation Indicator Instrument

HYX-3 X-ray crystal orientation Indicator instrument, it is mainly used for seed crystal orientation before processing and seed orientation after processing. This equipment can be combined with HTJ-08 cutting machine of our company, also can be combined with surface grinding machine and single line cutting machine.

Standard configuration:

1. One side is equipped with special fixture to Orient the end face of the crystal rod, such as 111, 110, 100 crystal direction of silicon rod, sapphire A, C, R, etc., the measurement size φ 2-8 inches; After the test, take down the fixture, and then in HTJ-08 cutting machine drill seed crystal or surface grinding machine processing end, or inner circle cutting machine, single line cutting machine processing seed crystal.

2. The other side for indication of inoculating crystal after the above process. Test inoculating crystal dimension of: round inoculating crystal Φ5---20mm, square inoculating crystal Φ5---20mm, 150mm length.

Main parameters:

Crystal bar diameter	6-8 inches crystal bar
Crystal bar length	150mm max 180mm
inoculating crystal diameter	￠5-20
inoculating crystal length	150mm max 180mm
Clamp diameter	260mm
Testing crystal face	111,100
Indicate precision	±30″
Digital display way	θ:degree；minute；second；minimum value of 10″
Technical target	Satisfied with HYX-2 targets
