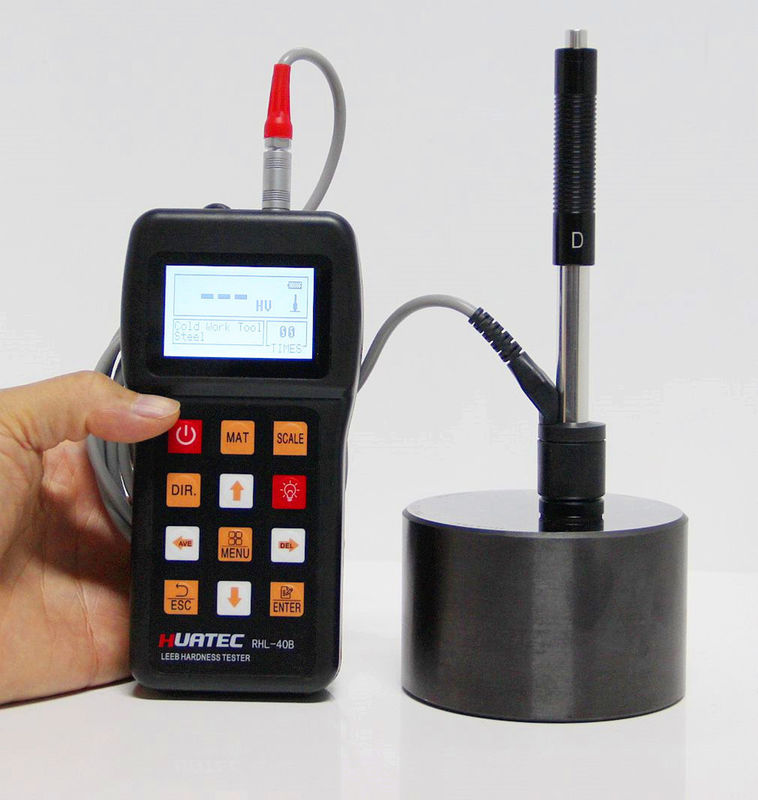

RHL-40B Portable Hardness Tester Segment LCD Display With Software Calibration Function
Features:
l Compact plastic case,suitable for use under poor working conditions. Test at any angle, even upside down.
l Wide measuring range. It can measure the hardness of all metallic materials. Direct display of hardness scales HRB, HRC, HV, HB, HS, HL
l Large screen (segment LCD), showing all functions and parameters. With EL background light.
l Large capacity memory could store 100 groups information.
l Datapro Software to connect with PC via RS232 port. Micro printer support
l Software calibration function.
Technical Specifications:
l Measuring range:
(170-960)HLD,(17-68.5)HRC,(19-651)HB,(80-976)HV,(30-100)HS,(59-85)HRA,(13-100)HRB
l Measuring direction:360°
l Hardness Scale:HL,HB,HRB,HRC,HRA,HV,HS
l Display:segment LCD
l Data memory:max. 100 groups(relative to impact times 32~1)
l Working voltage:3V(2 AA size alkaline battery)
l Continuous working period:about 100 hours(With backlight off)
l Communication interface:RS232
Main Application
l Die cavity of molds
l Bearings and other parts
l Failure analysis of pressure vessel, steam generator and other equipment
l Heavy work piece
l The installed machinery and permanently assembled parts.
l Testing surface of a small hollow space
l Material identification in the warehouse of metallic materials
l Rapid testing in large range and multi-measuring areas for large-scale work piece
Configuration:
| |
No. |
Item |
Quantity |
Remarks |
| Standard Configuration |
1 |
Main unit |
1 |
|
| 2 |
D type impact device |
1 |
With cable |
| 3 |
Standard test block |
1 |
|
| 4 |
Cleaning brush (I) |
1 |
|
| 5 |
Small support ring |
1 |
|
| 6 |
Alkaline battery |
2 |
AA size |
| 7 |
Manual |
1 |
|
| 8 |
Instrument package case |
1 |
|
| Optional Configuration |
9 |
Cleaning brush (II) |
1 |
For use with G type impact device |
| 10 |
Other type of impact devices and support rings |
|
Refer to Table 3 and Table 4 in the appendix. |
| 11 |
DataPro software |
1 |
|
| 12 |
Communication cable |
1 |
|
| 13 |
Micro Printer |
1 |
|
| 14 |
Print cable |
1 |
|
