Through Coating ultrasonic metal thickness tester ultrasonic thickness meter

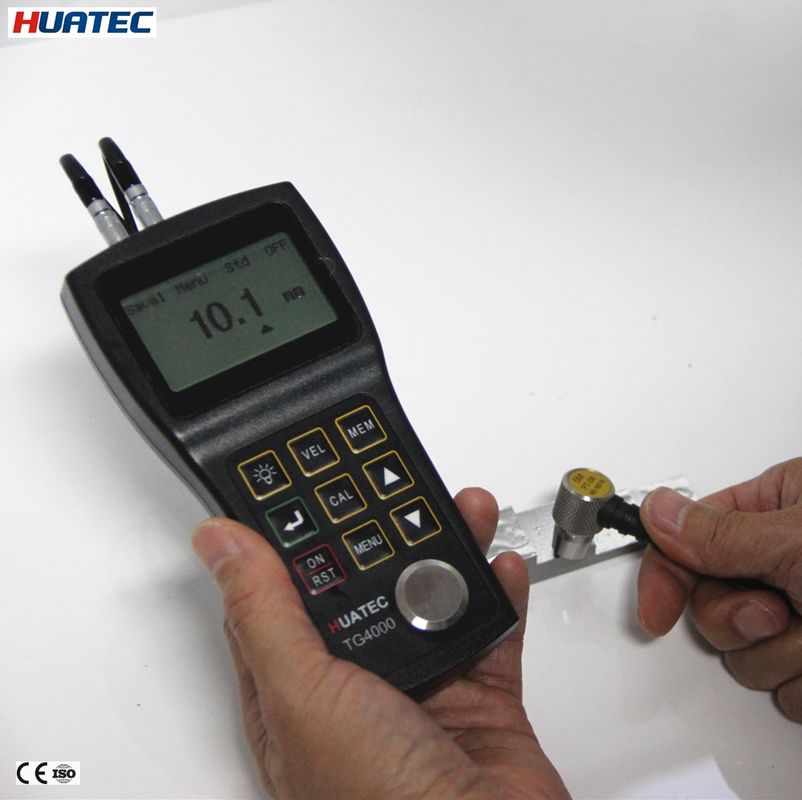

The HUATEC TG4000 is a simple to use, highly accurate, hand-held Ultrasonic Thickness Gauge with the ability to measure through paint and/or coatings. Utilizing it’s state of the art microprocessor and ultrasonic technology the HUATEC TG4000 offers you many outstanding features such as quick scan, extended memory and output. You can now test painted tanks, pipes, etc., without the need to remove the paint or make corrections for the paint thickness. It features reliable and stable readings, standard or dual element measuring modes, convenient data display (in both millimeters and inches),high resolution .01” (0.1mm), ease of operation, low power consumption(two AA batteries). These features make HUATEC TG4000 unequalled in its performance as well as its value!

TECHNICAL DATA

Display                        128X64 Pixel LCD with backlight

Measuring range     (in two function modes of Standard mode and through coating mode)

                           Standard mode        0.8 mm-- 300.0 mm in steel depending on the probe.  Special request can reach measuring range up to 500mm

                           Through coating mode   2.5 mm – 18.0 mm  (Probe PT-08 and PT-12 )

Through coating thickness: 0-2mm

Tolerance                       +/-0.05 mm in steel

Display resolution         0.1 mm

Built-in standard block   4.00 mm

Memory              500 datas in 5 groups, memory does not lose after powering off

Velocity range                1000-9999 m/s

Power                     2 pcs 1.2 V AAA batteries

Outside dimension         149X73X32 mm

Net Weight           160 g

FEATURES

 - Automatic self-calibration

- Couplant indicator

- Automatic power off in 5 minutes and manual power off function

- High-low limit alarm

- LCD brightness adjustable

- Through coating capability

- Low battery indicator

- Two points calibration

- Metric/imperial optional

- Dataview for PC communication


STANDARD DELIVERY

Ultrasonic Coating Thickness gauge TG4000 main unit with through coating mode

Hard carrying case

Couplant bottle

Standard 8 mm, 5 MHzprobe PT-08 with cable (through coating mode)

Dataview CD and communication cable


OPTIONAL ACCESSORIES

4 stepssteel test block

7 stepsmetrics steel test block

5 MHz, 4 mm contact probe

10 MHz, 4 mm, contact probe

5 MHz high temp. probe

Dataview CD and communication cable

Probe cables

Water proof housing
