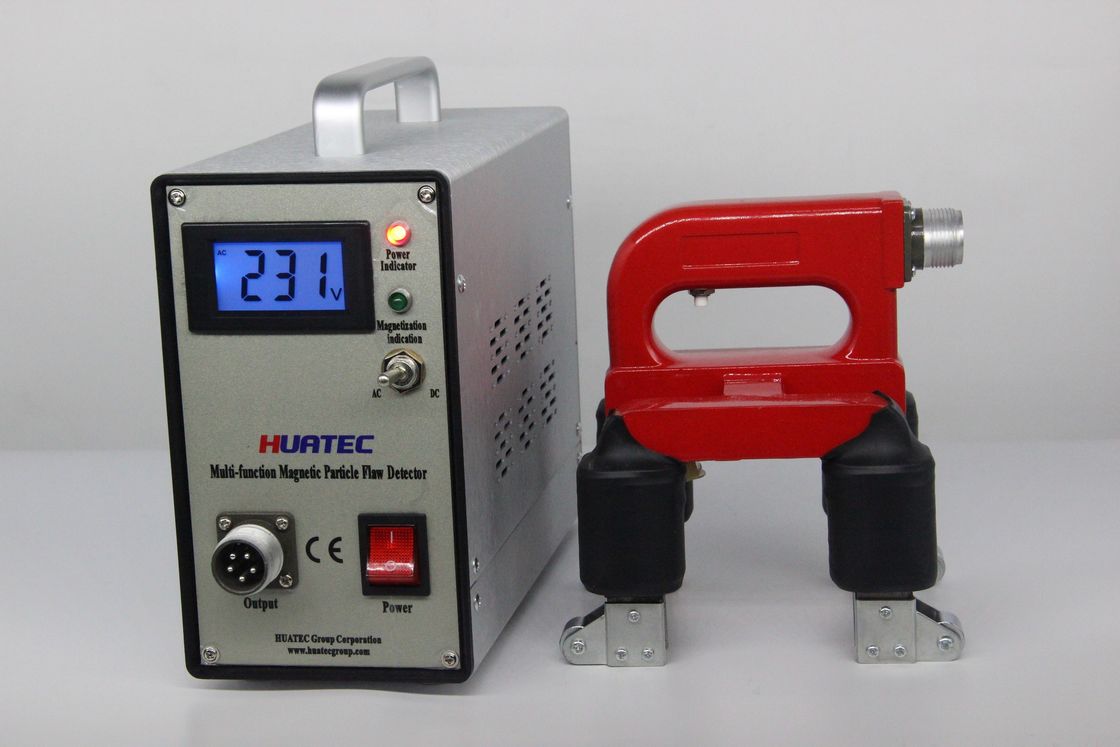

AC And DC Surface And Near Surface Cracks Portable Multifunction Magnetic Particle Test Equipment

Introduction:

HCDX-ISC composite magnetic powder flaw detector adopts silicon controlled contactless switch, with low noise, strong magnetic force, long service life and simple operation, suitable for field and laboratory use. The instrument adopts combined configuration, and users can choose probe freely according to their needs. Type A, D, E, O probe can be configured according to user requirements.

AC and DC switchable for HCDX-ISC serial portable multifunction magnetic particle flaw detector.

HCDX-ISC serial portable multifunction magnetic particle flaw detector adopts 8-bit MCU as the controller (with the phase controlled circuit), In addition, the program of MCU can enjoy lifetime free upgrades, and type A, D, E, O probe can be configured according to user requirements.

Application:

Mainly used to detect surface and near surface cracks of ferromagnetic metal parts.

Boiler pressure vessel, steel structure, forgings, castings, welding parts, machined parts, etc.

The standard probes introduction for model HCDX-ISC:

Type D probe (electromagnetic yoke probe): equipped with movable joints, can magnetize and detect the surface workpiece.

Type A probe (horseshoe probe): suitable for all kinds of fillet weld, large workpiece inside and outside corners of local magnetization inspection, equipped with working lights.

Technical parameters:

Power supply: AC 220V ± 10% 50HZ 5A

Output: AC 38V 10A

Type A.D.E.O probes are optional and available

Inspection speed: ≥6 m/min

Temperature rise of probe: ≤60℃

Working beat: it is recommended to work for a long period of continuous operation: magnetizing time ≤3 seconds, gap time ≥5 seconds

Weight: about 6.5Kg (main unit)

All optional probes parameters:

Standard delivery:

Host HCDX-ISC 1

Type D yoke probe 1

Type A probe 1

The power line 1

The probe line 1

Standard specimen 1

Operation manual 1

Certificate 1

Optional accessories:

Type A probe

O the probe

E probe

D probe

Dead weight

Test specimen

UV light
