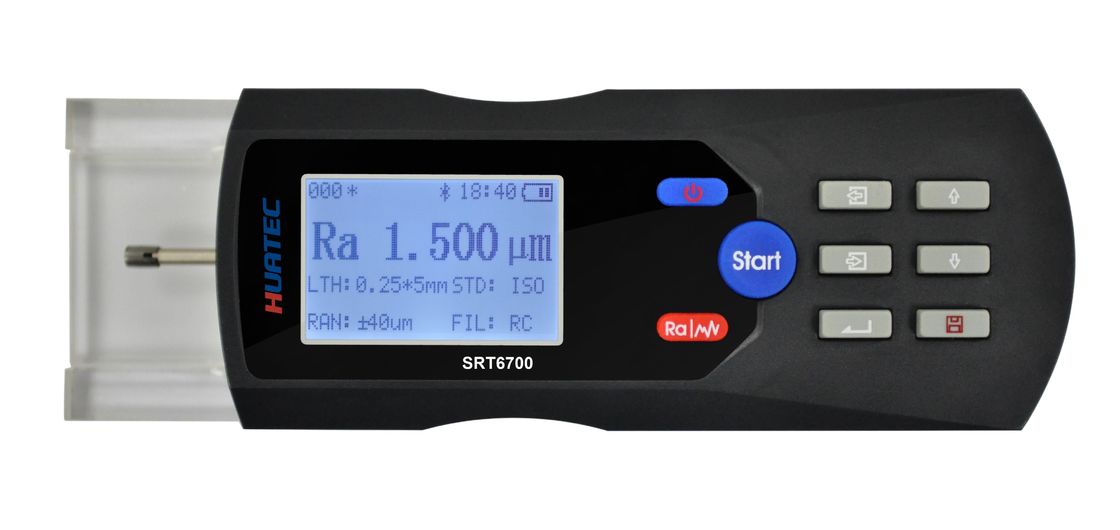

App Compatible High Resolution Surface Roughness Tester Surface Roughness Tester Portable SRT6700
Product Description
Precision roughness tester SRT6700 is a high precision instrument to test the surface degree of finish. It can measure surface roughness of the machined parts, including plane, bevel, outer cylindrical, surface, holes, trenches and axles and so on.
Features
Multi-parameter measuring: Ra, Rq, Rz, Rv, Rp, Rm, Rt, RS, Rsm, R3z, R3y, Rz(JIS), Rku, Rsk, Rmax, Rpc
Customize max 23 parameters.
Mobile/PC app compatible, convenient to be used in the small space. Mini USB interface enables communication with PC;
Online Software upgrade.
Extended memory of 8G.
High accuracy inductance sensor;
Four filtering methods of RC, PC-RC, GAUSS and D-P;
Compatible with four standards of ISO, DIN, ANSI and JIS;
128×64 dot matrix LCD displays all parameters and graphs;
ARM processor chip is used to control and process data with high speed and low power consumption;
Built-in lithium ion chargeable battery and control circuit have high capacity, without memory effect. Consecutive work time is longer than 20 hours;
Design of mechanical and electrical integration is adopted to achieve small bulk, lightweight and easy usage;
Built-in Bluetooth module enables drive the printer wirelessly to print all parameters and graphs;
Automatic switch off, memory and various prompt instructions;
Accessories of curved surface sensor, measurement stand, sheath of pickup, adjustable supporter and extending rod are available.
Main Technical Specifications
| 16 Parameters |
Ra, Rq, Rz, Rv, Rp, Rm, Rt, RS, Rsm, R3z, R3y, Rz(JIS), Rku, Rsk, Rmax, Rpc |
| Display |
Ra,Rq:0.005-16μm；Rz,Ry,Rt,Rp,Rv,Rmax,R3z:0.02-160μm；RS,RSm:1mm；Rmr:0-100%(%Rt)；Rsk:0-100% |
| Measuring range |
±20μm,±40μm,±80μm |
| Ra:0.025-12.5μm |
| Resolution (Ra) |
0.001μm |
| Filter |
RC,PC-RC,GAUSS,D-P |
| Cut Off |
0.25mm,0.8mm,2.5mm |
| Probe |
Type |
Inductive |
| Range |
160μm |
| Stylus Radius |
5μm |
| Measure Force |
4mN (0.4gf) |
| Stylus Material |
Diamond |
| Stylus Angle |
90° |
| Number of cut-offs |
1 to 5 |
| Max Running Length |
17.5mm/0.7inch |
| Min Running Length |
1.3mm/0.052inch |
| Accuracy |
≤±10% |
| Traverse Speed |
0.5mm / s, 1mm/s |
| Output |
USB and Bluetooth |
| Power |
Built-in rechargeable Battery |
| Dimensions in mm |
140×52×48 |
| Weight |
440g
|
Standard delivery
| Main unit |
1 pc |
| Standard Stylus - TS100 |
1 pc |
| Stylus sheath |
1 pc |
| Calibration block |
1 pc |
| Calibration support |
1 pc |
| USB Cable |
1 pc |
| U-Disk and software for PC/Mobile |
1 pc |
| Adjustable Stand |
1 pc |
| AC/DC Adaptor |
1 pc |
| User Manual |
1 pc |
| Display Content |
Cause |
Solutions |
| Out of Range |
Maximum value of measured signal exceeds measuring range; |
- Press Esc key to return;
- Enter menu setting status, increase measuring range, press Esc key to return;
- Measure again.
|
| Motor failure |
Mechanical fault; |
Scheme 1: Switch off and switch on again;
Scheme 2: Press Reset key;
Scheme 3: Return to factory to repair.
|
| Pickup failure |
Pickup is in automatic returning process |
- Press Esc key to return and wait till pickup returns to the start position;
2．Measure again.
|
| Working abnormally |
|
Turnoff and then restart
Switch the battery off, and then switch the battery on 10 seconds later.
|
Optional accessories:
Sensor for curve/concave/groove surface, hole sensor, measuring platform, extension rod, calibration plate.
