Product Description

Cross Hatch Cutter

Introduction:

2202 Cross Hatch Cutter is designed and manufactured according to ISO 2409-1992, GB/T9286-98, BS 3900 E6 and ASTM D3359 standards.

This instrument is designed for assessing the resistance of paint or related coatings to separation from substrates when a right-angle lattice oattern is cut into the coating, penetrating through to the substrate.

Main Technical Parameters:

1. Six working side blades:When the blade edge is not sharp enough, users can loosen the boat type nut and top thrust screw to change blade.

2. Multi-cutting blades spacing:1mm/2mm/3mm

3. The number of square:25squares/100squares

Technical Specification:

Cutting Head No.	Gap(mm)	Blades	Cutters Edges	Coating Thickness(µm)
2202/1	1	6	8	0~60
2202/2	1	11	8	0~60
2202/3	1.5	6	8	0~60
2202/4	2	6	8	61~120
2202/6	3	6	8	121~250

Order Information :

Standard Kit	Contain

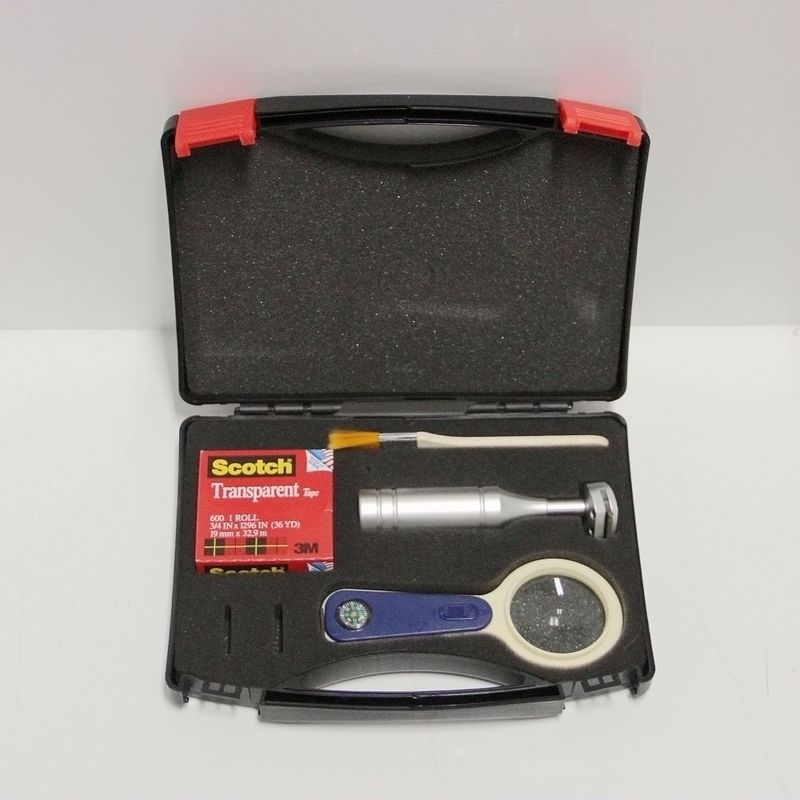

2202/1C	Cross Hatch Cutter + Carry Case + Hexagonal Screwdriver + Brush + Magnifier + Tape
2202/2C
2202/3C
2202/4C
2202/6C
Simple Kit	Contain
2202/1S	Cross Hatch Cutter + Paper Box + Hexagonal Screwdriver
2202/2S
2202/3S
2202/4S
2202/6S
