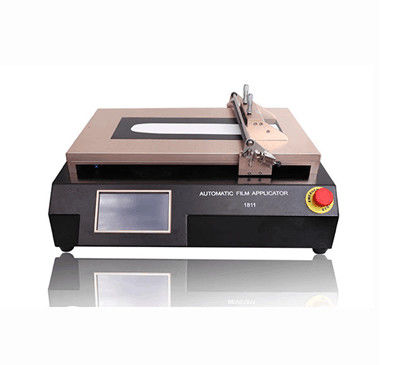

Glass Bed Vacuum Bed Electrically Heated Vacuum Automatic Film Applicator
Glass Bed Vacuum Bed Electrically Heated Vacuum Automatic Film Applicator
Glass Bed Vacuum Bed Electrically Heated Vacuum Automatic Film Applicator
Glass Bed Vacuum Bed Electrically Heated Vacuum Automatic Film Applicator
Glass Bed Vacuum Bed Electrically Heated Vacuum Automatic Film Applicator
Glass Bed Vacuum Bed Electrically Heated Vacuum Automatic Film Applicator
Glass Bed Vacuum Bed Electrically Heated Vacuum Automatic Film Applicator
Glass Bed Vacuum Bed Electrically Heated Vacuum Automatic Film Applicator

Glass Bed Vacuum Bed Electrically Heated Vacuum Automatic Film Applicator

Product Details

Place of Origin: Beijing

Brand Name: HUATEC

Certification: ISO, CE, GOST

Model Number: 1811 series

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Packaging Details: Standard export package

Delivery Time: 1-4days

Payment Terms: T/T, Paypal, Western Union

Supply Ability: 500pcs per month

Get Best Price

Product Details

Product Description
Product Details
Highlight:

oating thickness tester

,

coating thickness meter

Product Description

Automatic Film Applicator

Product Introduction:

Automatic Film Applicators are made with high precision machined components, sturdy mainframe and heavy duty power train assembly, to ensure long term reliable operation. Consistent drawdown conditions such as speed, flatness, combined with applicator gap and geometry are essential elements to obtain perfectly reproducible samples, eliminating human error and uncertainty.

Glass Bed Vacuum Bed Electrically Heated Vacuum Automatic Film Applicator 0Glass Bed Vacuum Bed Electrically Heated Vacuum Automatic Film Applicator 1Glass Bed Vacuum Bed Electrically Heated Vacuum Automatic Film Applicator 2

Introduction:

Automatic Film Applicators are made with high precision machined components, sturdy mainframe and heavy duty power train assembly, to ensure long term reliable operation. Consistent drawdown conditions such as speed, flatness, combined with applicator gap and geometry are essential elements to obtain perfectly reproducible samples, eliminating human error and uncertainty.



Software Introduction:

Advanced touch screen technology

Glass Bed Vacuum Bed Electrically Heated Vacuum Automatic Film Applicator 3

Film size:A4,A3 and User Defined.

Glass Bed Vacuum Bed Electrically Heated Vacuum Automatic Film Applicator 4

Adjustable speed.

Glass Bed Vacuum Bed Electrically Heated Vacuum Automatic Film Applicator 5

Report output:tab in the coating's name,viscosity,thickness for the report to be output.



Glass Bed Vacuum Bed Electrically Heated Vacuum Automatic Film Applicator 6

Technical Specification:

Model 1811/1 1811/2 1811/3
Speed 50-300mm/sec 50-300mm/sec 50-300mm/sec
Stroke Length (Max) 360mm 360mm 360mm
Test Panel 420×300mm 420×300mm 420×300mm
Test Platform Glass bed with clamp Vacuum bed Heated vacuum bed
Bar Coater Capacity Diameter 10-13mm 10-13mm 10-13mm
Length 320mm 320mm 320mm
Standard ASTM D823/C ASTM D823/C ASTM D823/C
Power 230±10%, 50/60Hz 230±10%, 50/60Hz 230±10%, 50/60Hz



Electrically Heated Vacuum Bed
automatic vacuum applicator is also available with an electrically heated vacuum
bed. The bed temperature can be set from ambient +5°C to + 150°C and temperature is
uniform over the whole bed.
Minimum temperature: Ambient +5ºC
Maximum temperature: +150ºC
Temperature accuracy: 1ºC



Order Information:

1811/1 Automatic Film Applicator (with glass bed)
1811/2 Automatic Film Applicator (with vacuum bed)
1811/3 Automatic Film Applicator (with electrically heated vacuum bed)
