Handheld Vibration Calibrator Of Vibration Meter Vibration Tester Vibration Analyzer

  • Handheld Vibration Calibrator Of Vibration Meter Vibration Tester Vibration Analyzer
Place of Origin Beijing
Brand Name HUATEC
Certification ISO, CE, GOST
Model Number HG5000
Minimum Order Quantity 1pcs
Packaging Details Standard export package
Delivery Time 1-4days
Payment Terms T/T, Paypal, Western Union
Supply Ability 500pcs per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Highlight

vibration analyzer

,

digital vibration meter
Leave a Message
Product Description

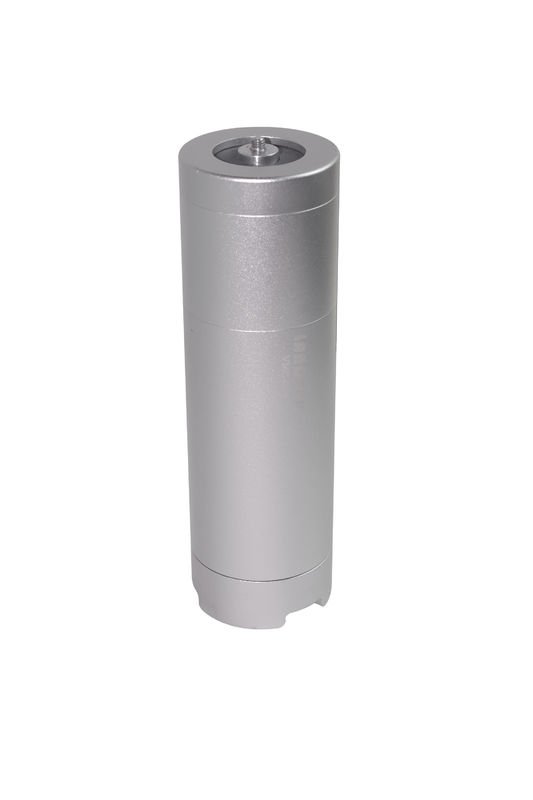

Handheld Vibration Calibrator Of Vibration Meter Vibration Tester Vibration Analyzer





The Vibration Calibrator is a small, self-contained handheld shaker designed for quick and easy check-ing of accelerometers, vibration monitoring systems and recording systems. Providing a known and controlled RMS vibration for verification of accelerometers weighing up to 150g.



*Operates at 159.2 Hz.

*10 mm/s RMS velocity output.

*Drives vibration sensors up to 150g.

*CE compliant.



Operating Frequency 159.2 Hz ± 0.5 %
Acceleration Output 10 m/s² (RMS) ± 3%
Velocity Output 10 mm/s (RMS) ± 3%
Displacement Output 10 um (RMS) ± 3%
Transverse Output < 5%
Distortion < 3%
Maximum Load 150 g
Ramp-Up Time < 3 Seconds
Operating Conditions

Temperature: -10~40°C

Humidity : < 85 %RH
Internal Battery 1x9V 6F22
Size (Diameter x Height) 56 mm x 200 mm
Weight (with batteries) 900 g



Standard Accessories:

1. Vibration Calibrator Main Unit

2. Carrying Case

3. Manual Book
