HUATEC ISO 2954 Digital Vibration Meter Piezoelectric Transducer

  • HUATEC ISO 2954 Digital Vibration Meter Piezoelectric Transducer
Place of Origin Beijing
Brand Name HUATEC
Certification ISO, CE, GOST
Model Number HG-6361
Minimum Order Quantity 1pcs
Price 180-250USD
Packaging Details Standard export package
Delivery Time 1-4days
Payment Terms T/T, Paypal, Western Union
Supply Ability 500pcs per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Highlight

portable vibration meter

,

vibration analyzer
Leave a Message
Product Description

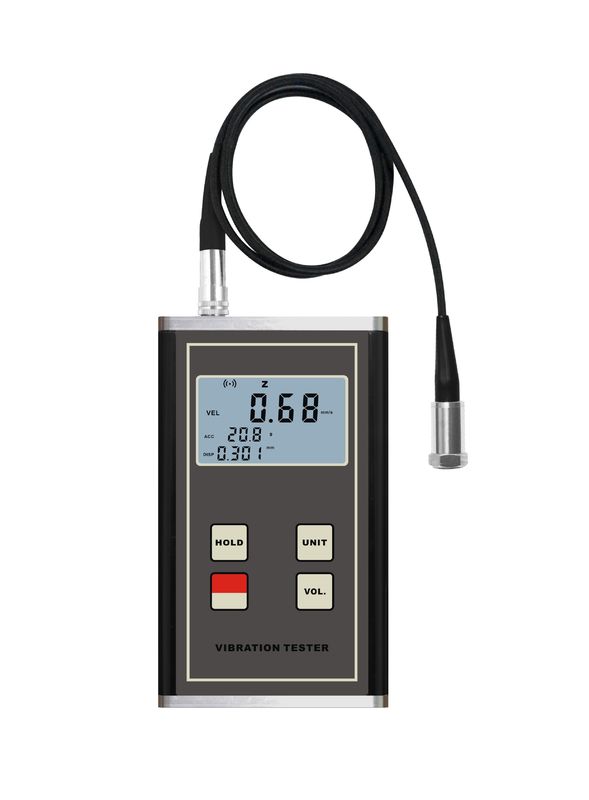

HUATEC ISO 2954 Digital Vibration Meter Piezoelectric Transducer Vibration Tester





Used for measuring periodic motion, to check the imbalance and deflecting of moving machinery. Specifically designed for present measuring various mechanical vibration. So as to provide the data for the quality control, run time and equipment upkeep.





* Can display on screen the parameters of Displacement, Velocity and Acceleration simultaneously.

* In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.
* Specially designed for easy on site vibration measurement of all rotating machinery for quality control,commissioning, and predictive maintenance purposes.

* Individual high quality ccelerometer for accurate and repeatable measurements.
* Wide frequency range (10Hz~10kHz) in acceleration mode.
* Optional headphones for use as electronic stethoscope.
* Bearing condition monitoring function.
* Use “USB data output” and “RS-232 data output” to connect with PC.

* Provide “Bluetooth ™ data output” choice.



Specification of vibration meter

Sensor Piezoelectric Transducer
Measuring Parameters & Range Acceleration: 0.1~400 m/s² 0.3~1312 ft/s² 0.0~40 g Equivalent Peak
Velocity: 0.01~400 mm/s 0.004~16.0 inch/s True RMS
Displacement: 0.001~4.0 mm 0.04~160.0 mil Equivalent Peak-peak
Frequency: 5 Hz ~ 1k Hz
Frequency Range Acceleration: 10 Hz ~ 10k Hz
Velocity: 10 Hz ~ 1k Hz
Displacement: 10 Hz ~ 1k Hz
Accuracy 5 % of Reading + 2 digits
Metric / Imperial Conversion
Analogue Output AC Output 0~2.0 V Peak Full Scale (Load Resistance: Above 10k)
Max. Value Hold
Power Off Manual Power Off or Auto Power Off
Battery Indicator Low Battery Indicator
Data Output USB, RS-232, Bluetooth
Operating Conditions Temperature: 0~50 °C Humidity: <90 %RH
Power Supply 2 x 1.5V AA size (UM-3) Battery
Dimensions 130 x 76 x 32 mm
Weight 340 g (Not Including Batteries)



Standard Accessories:

1. Vibration Meter Main Unit

2. Magnetic Suction Seat

3. Piezoelectric Transducer

4. Probe (Cone)

5. Probe (Spherical)

6. Carrying Case

7. Manual Book

Optional Accessories:

1. Headset

2. USB, RS-232 data cable with software

3. Bluetooth data out put with software



HUATEC ISO 2954 Digital Vibration Meter Piezoelectric Transducer 0
