USB Concrete Test Hammer

  • USB Concrete Test Hammer
  • USB Concrete Test Hammer
Place of Origin Beijing
Brand Name HUATEC
Certification ISO, CE, GOST
Model Number HTH-1000
Minimum Order Quantity 1pcs
Packaging Details Standard export package
Delivery Time 1-4days
Payment Terms T/T, Paypal, Western Union
Supply Ability 500pcs per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Test Range 50~80Mpa Standard Impact Energy 9.8J
Interface USB Communication Port Stiffness Of Tension Spring 10N/cm
Friction Of Pointer Slider 0.4N~0.8N Weight ≈3.5KG
Highlight

hammer testing concrete

,

digital concrete test hammer
Leave a Message
Product Description

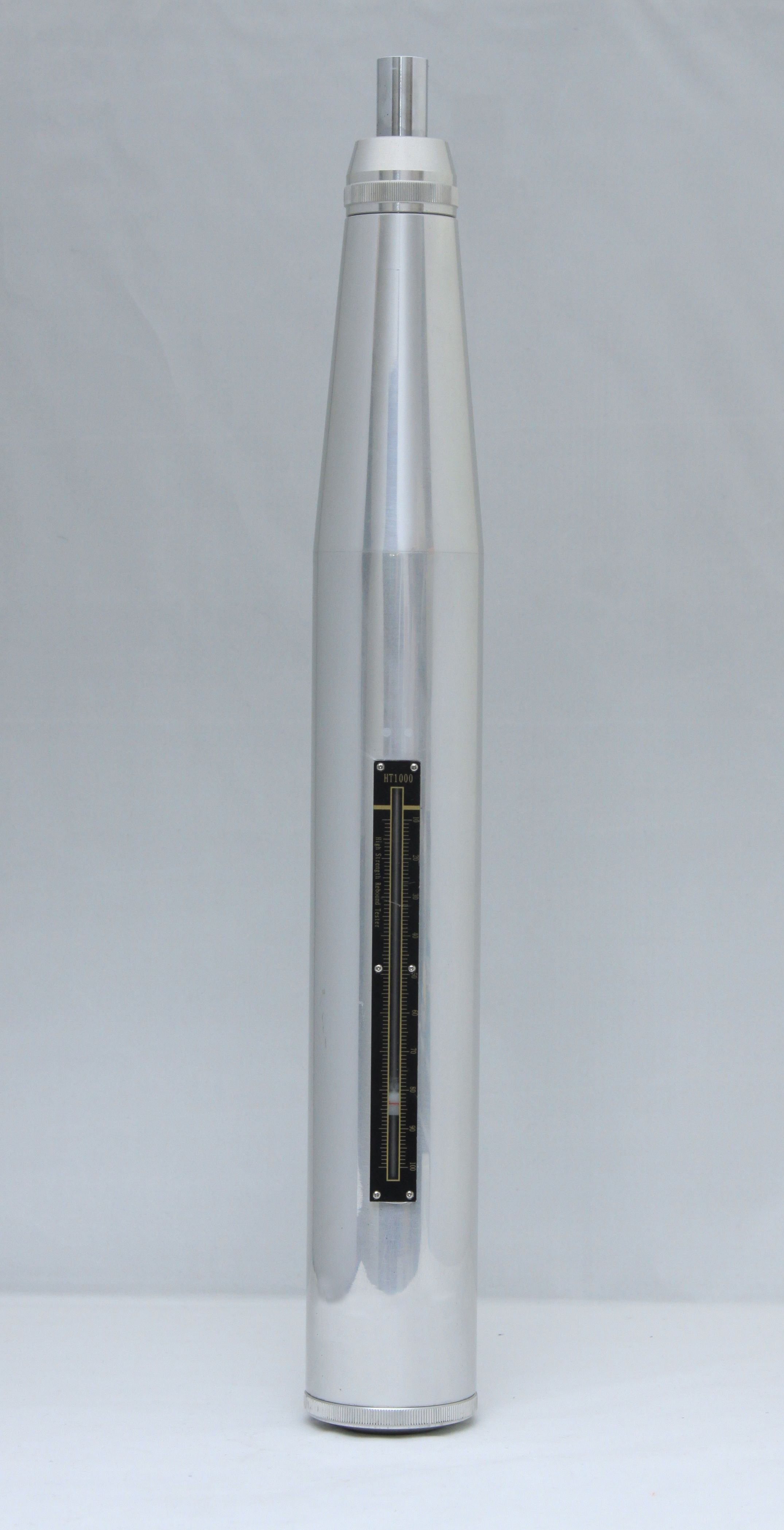

Hammer Test For Concrete





Test range: 50~80Mpa

Standard impact energy:9.8J

test hardness and strength

USB communication port



Brief introduction:

Submit to JGJ/T23-2001 technology regulation. The instrument is suitable for testing strength of tall building structure, bridge and concrete component etc.



Trait:

1)Center rod use imported material, high precision and wear proof:

2)Shell use super hard aluminums, protect instrument from damage on site work and prolong use life;

3)Pointer slider is outside ring structure, easy to adjust friction, and assure equal friction between pointer slider and axis. And assure the precision of instrument, compare with similar other brand product, it’s good precision, longer use life and better price.



Parameter:

Test range: 50~80Mpa

Standard impact energy:9.8J

Stroke of rebound hammer: 140mm

Friction of pointer slider: 0.4N~0.8N

Average rebound value on steel anvil: 83±2

Stiffness of tension spring: 10N/cm

Size: Φ65*486mm

Weight: ≈3.5KG
