xProduct Details
| Display | 4.5 Digits LCD With EL Backlight | Measuring Range | 0.75～300mm (in Steel) |
|---|---|---|---|
| Sound Velocity | 1000~9999 M/s | Resolution | 0.1mm |
| Accuracy | ±(0.5%Thickness+0.04)mm, Depends On Materials And Conditions | Size | 150×74×32 Mm |
| Weight | 245g | ||
| Highlight | digital ultrasonic thickness gauge,through coating thickness gauge |
||
Product Description

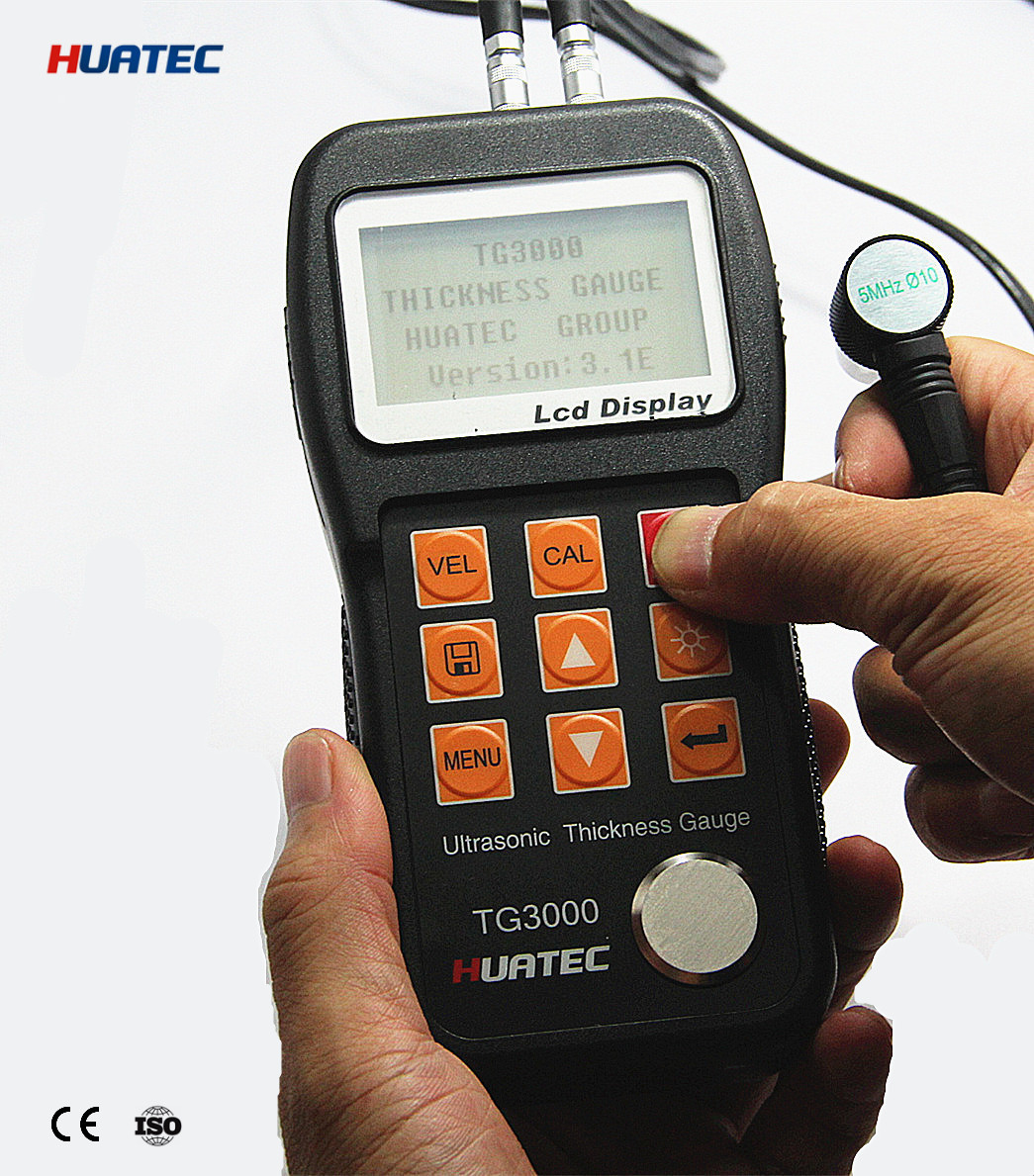

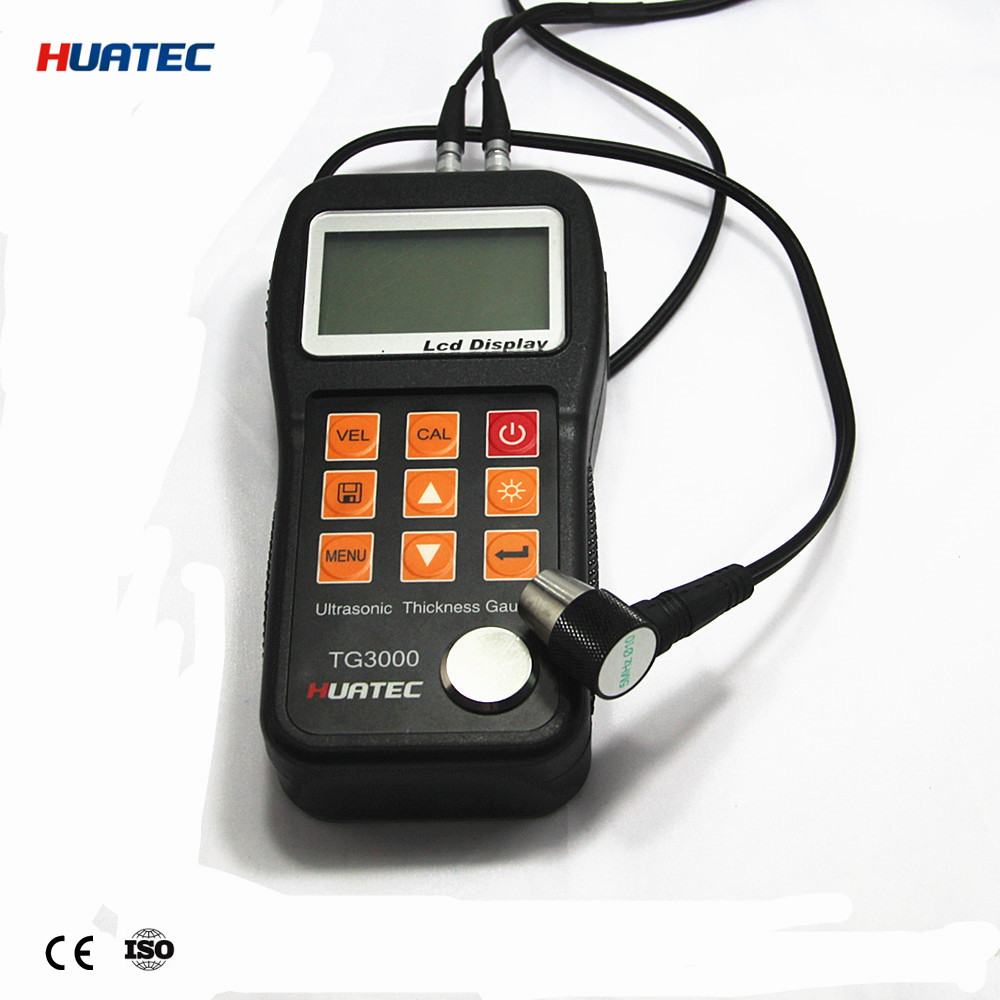

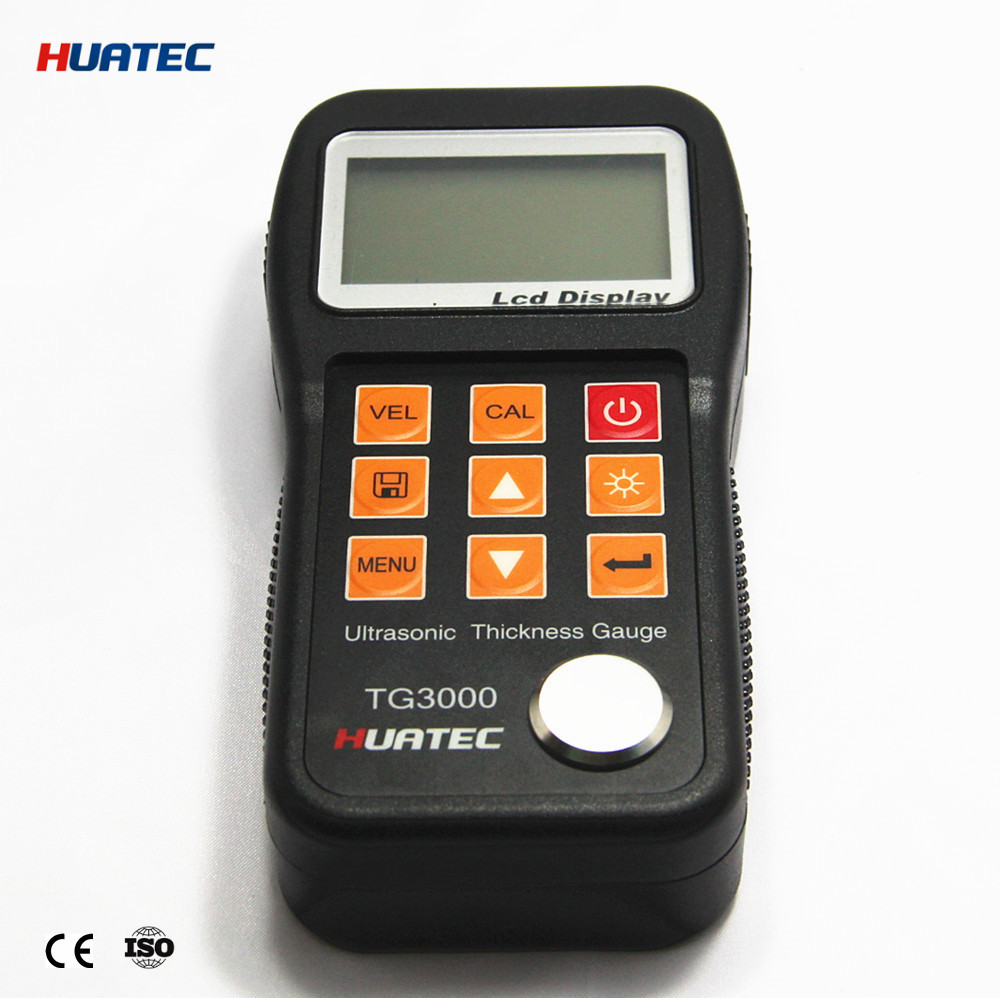

Ultrasonic Testing Thickness Measurement Ultrasonic Steel Thickness Gauge Ultrasonic Thickness Gauge TG3000
Main Features
1.Capable of performing measurements on a wide range of material, including metals, plastic, ceramics, composites, epoxies, glass and other ultrasonic wave well-conductive materials.
2.Transducer models are available for special application, including for coarse grain material and high temperature applications.
3.Two-Point Calibration function.
4.Two work modes: Single point mode and Scan mode.
5.Coupling status indicator showing the coupling status.
6.Auto sleep and auto power off function to conserve battery life.
Specifications
1.Display: 4.5 digits LCD with EL backlight.
2.Measuring Range:0.75～300mm (in Steel).
3.Sound Velocity Range: 1000~9999 m/s.
4.Resolution: 0.1mm.
5.Accuracy: ±(0.5%Thickness+0.04)mm, depends on materials and conditions
6.Units:Metric/Imperial unit selectable.
7.Four measurements readings per second for single point measurement, and ten per second for Scan Mode.
8.Memory for up to 20 files (up to 99 values for each file) of stored values.

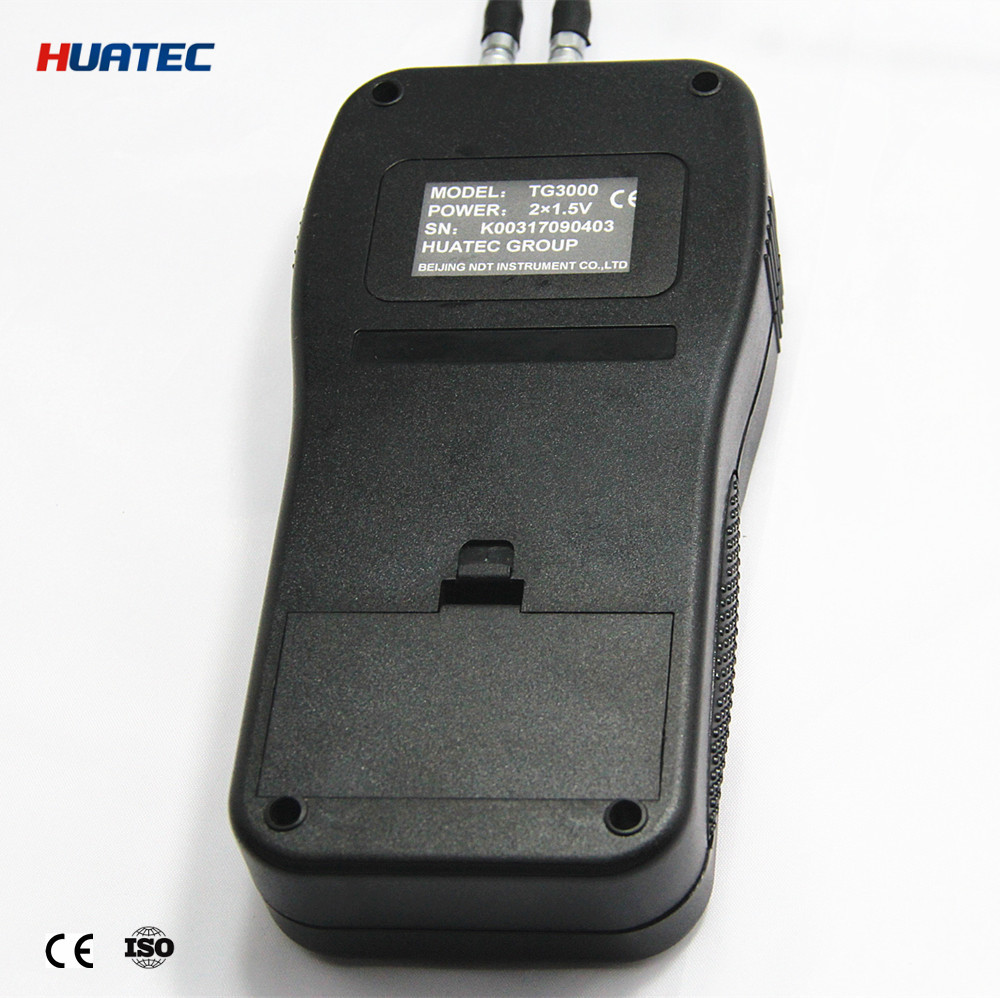

9.Power Source:Two “AA” size, 1.5 Volt alkaline batteries. 100 hours typical operating time (EL backlight off).
10.Outline dimensions:150×74×32 mm. Weight:245g

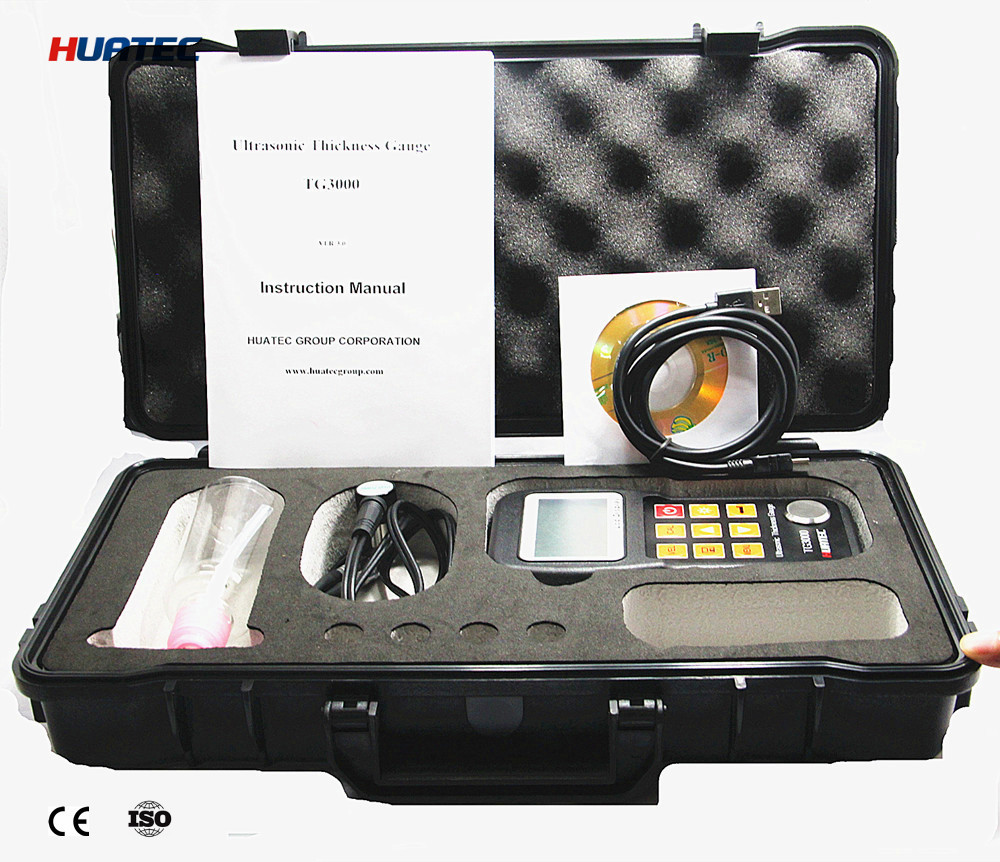

Configuration
|
|
No.
|
Item
|
Quantity
|
Remarks
|
|
Standard Configuration
|
1
|
Main body
|
1
|
|
|
2
|
Transducer
|
1
|
Model: N05/90°
|
|
|
3
|
Couplant
|
1
|
|
|
|
4
|
Instrument Case
|
1
|
|
|
|
5
|
Operating Manual
|
1
|
|
|
|
6
|
Alkaline battery
|
2
|
AA size
|
|
|
Optional Configuration
|
7
|
Transducer: N02
|
|
|
|
8
|
Transducer: N07
|
|
||
|
9
|
Transducer: HT5
|
|
Probe optional
|
Model
|
Freq
MHZ
|
Diam
mm
|
Measuring Range
|
Lower limit
|
Description
|
|
N02
|
2
|
22
|
3.0mm～300.0mm(In Steel)
|
20
|
for thick, highly attenuating, or highly scattering materials
|
|
N05
|
5
|
10
|
1.2mm～230.0mm(In Steel)
|
Φ20mm×3.0mm
|
Normal Measurement
|
|
N05
/90°
|
5
|
10
|
1.2mm～230.0mm(In Steel)
|
Φ20mm×3.0mm
|
Normal Measurement
|
|
N07
|
7
|
6
|
0.75mm～80.0mm
(In Steel)
|
Φ15mm×2.0mm
|
For thin pipe wall or small curvature pipe wall measurement
|
|
HT5
|
5
|
14
|
3～200mm (In Steel)
|
30
|
For high temperature (lower than 300℃) measurement.
|
