Sand Mould Wet Mould Portable Hardness Testing Equipment HT-6710B Digital

  • Sand Mould Wet Mould Portable Hardness Testing Equipment HT-6710B Digital
  • Sand Mould Wet Mould Portable Hardness Testing Equipment HT-6710B Digital
  • Sand Mould Wet Mould Portable Hardness Testing Equipment HT-6710B Digital
Place of Origin Beijing
Brand Name HUATEC
Certification ISO,CE
Model Number HT-6710B
Minimum Order Quantity 1pcs
Packaging Details Standard export package
Delivery Time 1-4days
Supply Ability 5000pcs per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material ABS Standards DIN 53505, ISO 868, ISO 7619, ASTMD 2240, JISK7215
Average With Average Calculate Function Peak Peak Value Deposit Function
Alarm Under-voltage Alarm Function Communication USB Or RS232
Bluetooth Bluetooth Capability Optional Stroke 2.5mm
Pressure Load 50g Display 4 Digits, 10mm LCD
Measuring Unit HB Product Name Sand Mould Surface Hardness Tester
Load 980g
Highlight

sand mould portable hardness testing equipment

,

digital portable hardness testing equipment

,

wet mould digital hardness tester
Leave a Message
Product Description

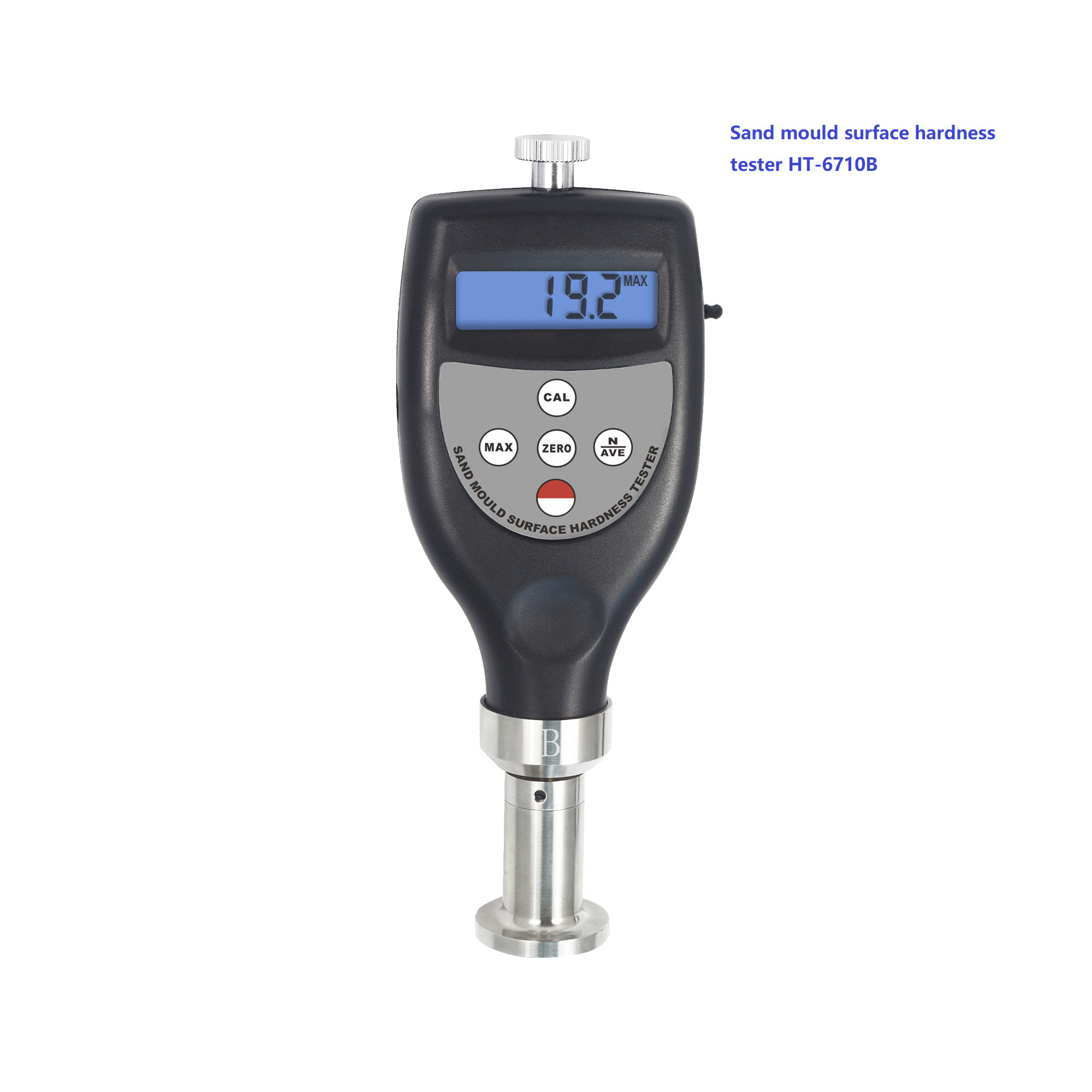

Digital Sand Mould Wet Mould Portable Hardness Testing Equipment HT-6710B



Main application

The HUATEC HT-6710B Digital Sand Mould Surface Hardness Tester is used to measure the surface hardness of the sand mould/core of the wet mold and provide technical parameters for the formulation of the molding process.



Features

* It meets international standards of DIN 53505, ISO 868, ISO 7619, ASTMD 2240, JISK7215.
* The surface hardness of sand mold is divided into three types: A, B and C, The common model is type B, among them:
  Type HT-6710A: Suitable for the surface hardness test of fine sand mold/core in manual or mechanical low and medium pressure molding.
  Type HT-6710B: Suitable for the surface hardness test of fine and coarse sand mold/core in manual or mechanical low and medium pressure molding.
  Type HT-6710C: Suitable for the surface hardness test of sand mold in high pressure molding.
* The unit of type HT-6710B hardness tester for sand mold surface is (g/mm2), but it is customary to use hardness H(A/B/C) instead of unit. Because their values are related and consistent, the corresponding hardness value is also large when the unit value is large (g/mm2).
* With average calculate function.
* Peak value deposit function.
* Under-voltage alarm function.
* Use USB data output to connect with PC.
* Bluetooth data output optional.

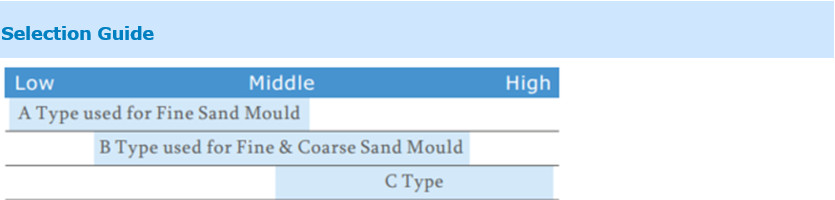

Selection Guide



Sand Mould Wet Mould Portable Hardness Testing Equipment HT-6710B Digital 0



Technical specifications

Model HT-6710A HT-6710B HT-6710C
Stroke 2.50mm 2.50mm 2.50mm
Load 237g 980g 1500g
Pressure Load 90g 50g 180g
Shape and size of indenter Spherical R2.50 Spherical R12.70 Spherical R1.20
Unit HA HB HC
Display 4 digits, 10mm LCD
Parameters Tested Result / Mean Value / Max. Value
Display Range 0H~100H(A/B/C)
Testing Range 10H~90H(A/B/C)
Accuracy ≤±1H(A/B/C)
Resolution 0.1H(A/B/C)
Battery Indicator Low Battery Indicator
Auto Switch Off √
Operating Temperature: 0~40°C Humidity: <80%RH
Power Supply 2x1.5V AAA (UM-4) Battery
Dimensions 162mmx65mmx28mm
Weight 170g
Standard Accessories Main Unit HT-6710B
  Carrying Case
  Operation manual and calibration certificate
Optional Accessories USB Data Cable with Software
  Bluetooth Data Adapter with Software
