Sand Mould Wet Mould Portable Hardness Testing Equipment HT-6710B Digital

Product Details

Place of Origin: Beijing

Brand Name: HUATEC

Certification: ISO,CE

Model Number: HT-6710B

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Packaging Details: Standard export package

Delivery Time: 1-4days

Supply Ability: 5000pcs per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                sand mould portable hardness testing equipment, digital portable hardness testing equipment, wet mould digital hardness tester


Material:	ABS	Standards:	DIN 53505, ISO 868, ISO 7619, ASTMD 2240, JISK7215
Average:	With Average Calculate Function	Peak:	Peak Value Deposit Function
Alarm:	Under-voltage Alarm Function	Communication:	USB Or RS232
Bluetooth:	Bluetooth Capability Optional	Stroke:	2.5mm
Pressure Load:	50g	Display:	4 Digits, 10mm LCD
Measuring Unit:	HB	Product Name:	Sand Mould Surface Hardness Tester
Load:	980g

Material:	ABS
Standards:	DIN 53505, ISO 868, ISO 7619, ASTMD 2240, JISK7215
Average:	With Average Calculate Function
Peak:	Peak Value Deposit Function
Alarm:	Under-voltage Alarm Function
Communication:	USB Or RS232
Bluetooth:	Bluetooth Capability Optional
Stroke:	2.5mm
Pressure Load:	50g
Display:	4 Digits, 10mm LCD
Measuring Unit:	HB
Product Name:	Sand Mould Surface Hardness Tester
Load:	980g

Product Description

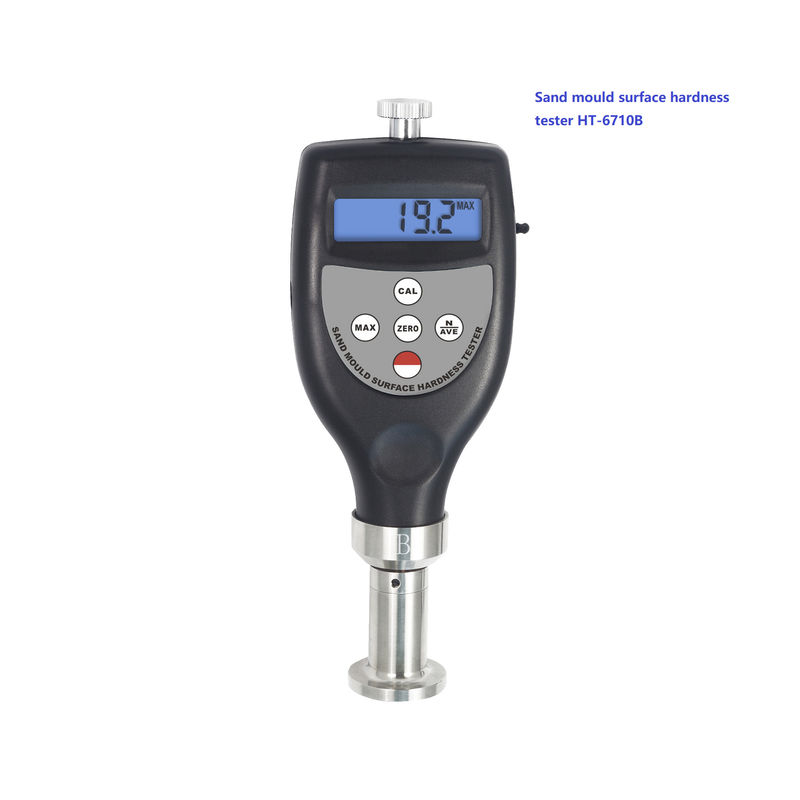

Digital Sand Mould Wet Mould Portable Hardness Testing Equipment HT-6710B

Main application

The HUATEC HT-6710B Digital Sand Mould Surface Hardness Tester is used to measure the surface hardness of the sand mould/core of the wet mold and provide technical parameters for the formulation of the molding process.

Features

* It meets international standards of DIN 53505, ISO 868, ISO 7619, ASTMD 2240, JISK7215.
* The surface hardness of sand mold is divided into three types: A, B and C, The common model is type B, among them:
Type HT-6710A: Suitable for the surface hardness test of fine sand mold/core in manual or mechanical low and medium pressure molding.
Type HT-6710B: Suitable for the surface hardness test of fine and coarse sand mold/core in manual or mechanical low and medium pressure molding.
Type HT-6710C: Suitable for the surface hardness test of sand mold in high pressure molding.
* The unit of type HT-6710B hardness tester for sand mold surface is (g/mm²), but it is customary to use hardness H(A/B/C) instead of unit. Because their values are related and consistent, the corresponding hardness value is also large when the unit value is large (g/mm²).
* With average calculate function.
* Peak value deposit function.
* Under-voltage alarm function.
* Use USB data output to connect with PC.
* Bluetooth data output optional.

Selection Guide

Sand Mould Wet Mould Portable Hardness Testing Equipment HT-6710B Digital 0

Technical specifications

Model	HT-6710A	HT-6710B	HT-6710C
Stroke	2.50mm	2.50mm	2.50mm
Load	237g	980g	1500g
Pressure Load	90g	50g	180g
Shape and size of indenter	Spherical R2.50	Spherical R12.70	Spherical R1.20
Unit	HA	HB	HC
Display	4 digits, 10mm LCD
Parameters	Tested Result / Mean Value / Max. Value
Display Range	0H~100H(A/B/C)
Testing Range	10H~90H(A/B/C)
Accuracy	≤±1H(A/B/C)
Resolution	0.1H(A/B/C)
Battery Indicator	Low Battery Indicator
Auto Switch Off	√
Operating	Temperature: 0~40°C Humidity: <80%RH
Power Supply	2x1.5V AAA (UM-4) Battery
Dimensions	162mmx65mmx28mm
Weight	170g
Standard Accessories	Main Unit HT-6710B
	Carrying Case
	Operation manual and calibration certificate
Optional Accessories	USB Data Cable with Software
	Bluetooth Data Adapter with Software
