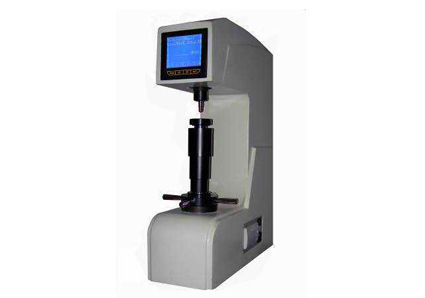

Rockwell Superficial Hardness Tester HR45P

  • Rockwell Superficial Hardness Tester HR45P
Place of Origin Beijing
Brand Name HUATEC
Certification ISO, CE, GOST
Model Number HR-45P
Minimum Order Quantity 1pcs
Packaging Details Standard export package
Delivery Time 1-4days
Payment Terms T/T, Paypal, Western Union
Supply Ability 500pcs per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Highlight

rockwell superficial hardness tester

,

vickers hardness machine
Leave a Message
Product Description
·       HR45P can be used directly to measure Rockwell Superficial hardness for metal and plastic material.
·       Provided with many features such as high measuring precision, wide measuring range with 15 Rockwell scales.
·       Automatic test force switch according the selected scale without manual operation.
·       Automatic load cycle. The loading, dwell, unloading process of the main test force are controlled exactly to meet standard.
·       Measuring results digitally displaying and can be printed, or transmitted to external computer automatically.
·       The tester is suitable for testing of carbon steel, alloy steel, cast iron, non ferrous metal, and engineering plastic etc., especially small and thin parts.
·       Test value can be transformed to the value of HB, HV, HK and σb value.
·       The tester meets all the following standards such as ISO 6508-2, ASTM E18, BS EN ISO6508-2, GB/T230.2.
·       Preload:29.4N(3kgf)
·       Total test force:147.1N(15kgf), 294.3N(30kgf), 441.3N(45kgf)
·       Scales:HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HR15W, HR30W, HR45W, HR15X, HR30X, HR45X, HR15Y, HR30Y, HR45Y
·       Load cycle: 3～8s
·       Load dwell duration: 2～50s, can be set
·       Resolution :0.1HR
·       Display:High definition backlight LCD
·       Operation:Menu selectable, Membrane keypad
·       Upper/lower limits setting & alarming
·       Data statistics: Avg., Max., Min., S, R available
·       Curved surface correcting automatically
·       Memory: Max 500 items of test results stored automatically
·       Data output: USB port to external PC
·       With integrated micro-printer and printing measuring results automatically
·       Testing space:200mm in vertical, 165mm in horizontal
·       Dimensions: 550mm×200mm×720mm
·       Power supply: AC, 220V/110V, 50～60Hz, 4A
·       Net weight: 90kg



 Standard configuration



Host machine

1



Standard hardness block for 30N scale

1



Standard hardness block for 30T scale

1



ball indenter (1/16″)

1



120°cone diamond indenter

1



Mounting screws for indenter

2



Flat anvil

1



“V ”shape anvil

1



Power supply wire

1



Screwdriver for indenter mounting

1



Dust cover

1

Optional accessories:



Short diamond indenter



Chisel diamond indenter



Slender diamond indenter



1/8″ball indenter and spare steel ball



1/4″ball indenter and spare steel ball



1/2″ball indenter and spare steel ball



φ225 anvil



φ150 anvil



Standard hardness block for other scales



Micro printer
