ISO6506, ASTM E-10 Automatic Brinell Hardness Tester HBA-3000S

Place of Origin Beijing
Brand Name HUATEC
Certification ISO, CE, GOST
Model Number HBA-3000S
Minimum Order Quantity 1pcs
Packaging Details Standard export package
Delivery Time 1-4days
Payment Terms T/T, Paypal, Western Union
Supply Ability 500pcs per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Color White Conform To ISO6506, ASTM E-10
CCD Separated CCD Camera Measuring Range 3.18HBW~658HBW
Accuracy Of Indention Measureing ±0.5%
Highlight

portable brinell hardness tester

,

rockwell superficial hardness tester

Leave a Message
Product Description

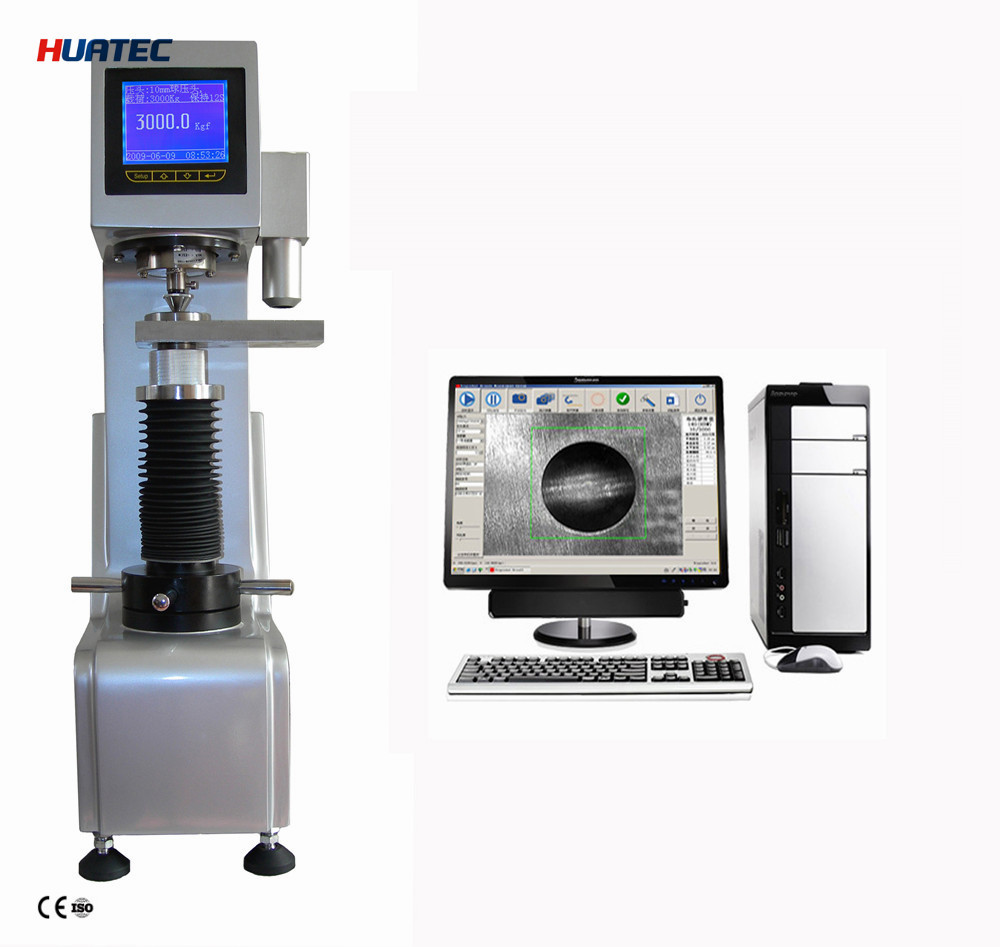

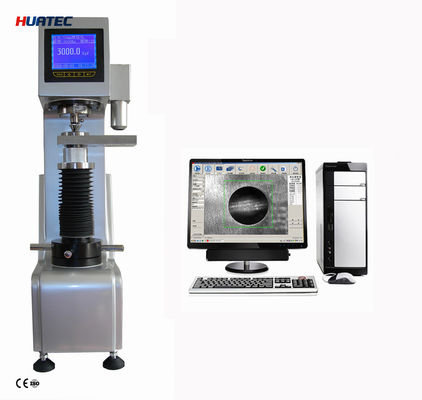

(MODEL:HBA-3000S, Separated CCD Camera style)
Conforms to: ISO6506, ASTM E-10

ISO6506, ASTM E-10 Automatic Brinell Hardness Tester HBA-3000S 0

The Brinell hardness testing creates the largest indentation comparing all other hardness testing methods. It is able to reflect the comprehensive features of the material, and is unaffected by the microstructure and inhomogeneous of the specimen. So it with high precision and widely used in industry such as metallurgy, forging, casting, unhardened steel and nonferrous metals, as well as in the laboratories, universities , and scientific research institutes.

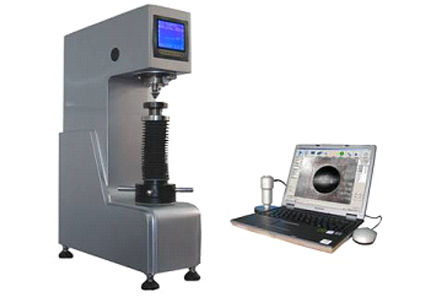

HBA-3000S can combine HBI-10M or HBI-10A Brinell indention tester to compose an advanced automatic Brinell testing system. Or matching a 20X optical microscope to form an economical combination.

Specification:

  • Innovative closed-loop technology. The tester incorporates the latest load cell technology. The test load is applied via a closed-loop control unit with a load cell, a DC motor and an electronic measurement and control unit. The result is highly accurate measurements at all test loads up to 0.5%. The common load overshoot or undershoot as known from traditional dead weight, or open-loop, systems is eliminated. The absence of mechanical weights not only eliminates friction problems but also makes the equipment less sensitive to misalignments caused by vibrations.
  • The whole weight of the tester is 50% less than the traditional dead weights type tester.
  • Test load selection by keyboard and LCD screen. No need of handling heavy weights or cleaning the messy oil.
  • Fully automatic test cycles. The hardness Tester features a fully automatic test cycle, load application, holding, unloading, is performed fully automaticly. This greatly improves reproducibility of test results since operator influence is eliminated.

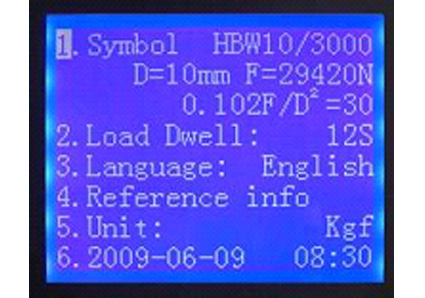

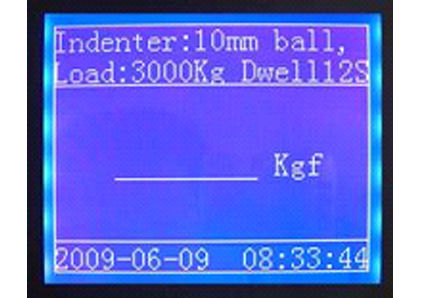

  • Selectable dwell times by screen. The indenter, load, and other test informations are showing clearly on the large LCD screen.

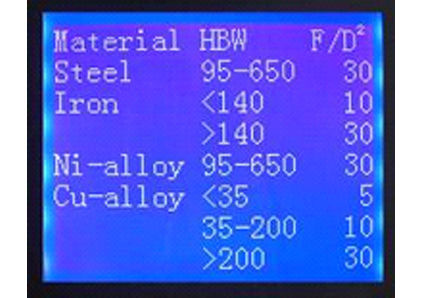

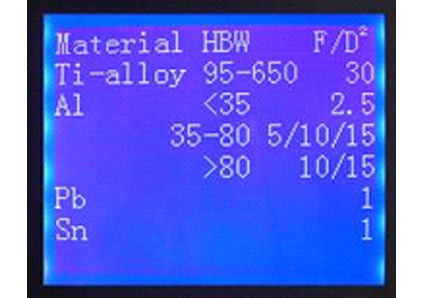

  • The directions for 0.102F/D2 ratios selecting according to the materials and hardness range can be showing on the screen.


ISO6506, ASTM E-10 Automatic Brinell Hardness Tester HBA-3000S 1ISO6506, ASTM E-10 Automatic Brinell Hardness Tester HBA-3000S 2ISO6506, ASTM E-10 Automatic Brinell Hardness Tester HBA-3000S 3ISO6506, ASTM E-10 Automatic Brinell Hardness Tester HBA-3000S 4

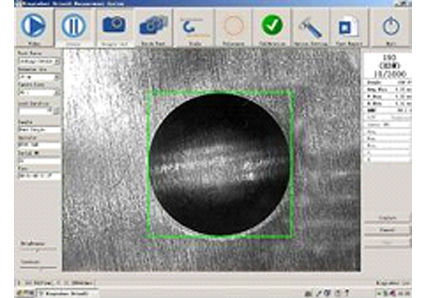

  • Separated CCD Camera make the test more flexible and movable. The special Brinell indention measure system can measure the Brinell indention accurately, quickly, reliably. It is a new measuring method by using CCD camera to capture the indention image, instead of reading diameter from optical microscope.


ISO6506, ASTM E-10 Automatic Brinell Hardness Tester HBA-3000S 5

Technical data:


Loads:3000kgf (29400N), 1500Kgf (14700N), 1000Kgf (9800N), 750Kgf(7355N), 500Kgf (4900N),
           250Kgf (2452N), 187.5Kgf (1839N), 125Kgf (1226N), 100Kgf (980N), 62.5Kgf(612.9N)

Load dwell duration: 2s~99s, can be set and stored

Tungsten Carbide Ball indenter: 10mm, 5mm, 2.5mm

Measuring range: 3.18HBW~658HBW

Accuracy of indention measureing: ±0.5%

Accuracy of Brinell Hardness Value:

HardnessRange(HBW)

Error (%)

Repeatability(%)

≤ 125

± 2.5

≤ 3.0

125 < HBW ≤ 225

± 2.0

≤ 2.5

> 225

± 1.5

≤ 2.0

Max measurable height: 230 mm

Max measurable depth: 140 mm

Dimensions: 530mm×260mm×750mm

Power supply: 220/110 V, 50/60 Hz, 4A

Weight: 110kg

Standard blocks: 125-350HBW10/3000, 125-350HBW10/1000





Standard configuration
    Host machine    1
    Standard block  125-350HBW10/3000    1
    Standard block  125-350HBW10/1000    1
    Ф10mm Tungsten Carbide Ball indenter    1
    Mounting screws for indenter    1
    Screwdriver for indenter mounting    1
    Flat anvil, 80mmx185mm    1
    Software disc
    USB Key    1
    USB Cable    1
    Power supply wire    1
    Dust cover    1

Optional accessories:
    “V ”shape anvil, 80mmx185mm
    Standard blocks of other value
    Ф5mm Tungsten Carbide Ball indenter
    Ф2.5mm Tungsten Carbide Ball indenter
    Ф10mm Tungsten Carbide Ball
    Ф5mm Tungsten Carbide Ball
    Ф2.5mm Tungsten Carbide Ball
