xProduct Details
| Indenter To Wall Distance | 200mm | Test Maximum Heigh | Rockwell：220mm、 Brinell Vickers：150mm |
|---|---|---|---|
| Shape Size | 560*260*800mm | Hardness Scale | HBW1/5、HBW2.5/62.5、HBW1/10、HBW2.5/15.625、HBW1/30、HBW2.5/31.25、HBW2.5/62.5、HBW10/100、HBW5/125、HBW2.5/187.5 (select 10 Scales) |
| Test Force Application Method | Automatic | System | Closed-loop Control System |
| Test Force Correction | Test Force Is Automatically Corrected | Memory | 12. U-disk Of Measurement Data Is Saved In EXCEL |
| Test Force | 5～187.5kgf | Objective | 2.5X，5X（10X，20X Optional） |
| Highlight | Knoop brinell hardness test equipment,Knoop brinell hardness machine,2.5X Brinell Hardness Test Equipment |
||
Product Description

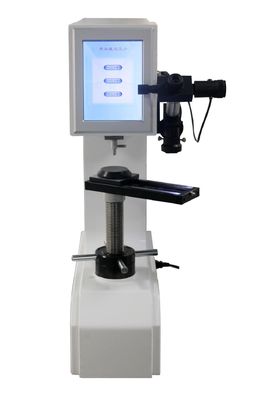

HBRV-187.5DX Brinell Hardness Machine Brinell Hardness Test Equipment Knoop Hardness Test
HBRV-187.5DX Senior Digital Brinell, Rockwell, Vickers Universal hardness testers series ( with Touch Screen)
Brief Introduction
Hardness is one of the important mechanic characteristics of the material while the hardness testing is an important method to judge the quality of the metal material or its component parts. The hardness of the metal is correspondent to its mechanic characteristics, and so its mechanic characteristics such as the strength, tiredness, wriggling and wearing out can be tested out approximately through its hardness testing .
Digital multi-functional hardness tester with Brinell, Rockwell, Vickers three testing methods, multi-functional hardness tester of seven grade test force ,it can meet the needs of a variety of hardness tests. Test force loading, dwell, unload adopted automatic switching mechanism, test force transformation obtained by the rotation of hand wheel, indentation measured by precision encoder and sensor and calculated the hardness value by the internal system program. So it is easy to operate, fast and intuitive interface, basically, no human operation error, with its high sensitivity, stability, it is suitable for workshops and laboratories.
The main function as follows:
- Brinell, Rockwell, Vickers three testing methods；
- Conversion of different hardness scales
- Selection of dwell time
- Modifications of time and date
- Output of testing results
Main features:
- Equipped Brinell, Rockwell, Vickers test methods
2. Electronic and electric loading, high precision sensor, with a unique closed-loop control system
3. Eyepiece structure with digital encoder, measuring D1, D2 value, LCD directly display hardness value and D1, D2 value
4. Directly select the hardness scale, the force value automatically changes in the test parameters
- The test force is automatically corrected, and each force is automatically compensated. The accuracy of the force is improved by an order of magnitude
- Can be calibrated according to standard hardness block or length scale
- The test force can be automatically corrected by standard dynamometer
8. The hardness values of brinell, rockwell and vickers can be converted
- Touch screen, easy to operate
- Automatic hardness conversion according to national standard /ASTM
- Set password protection setting parameters, more sample and test information
- U-disk of measurement data is saved in EXCEL format for easy editing and processing
Technical specification:
| Model | HBRV—187.5DX |
| Test force | 5～187.5kgf |

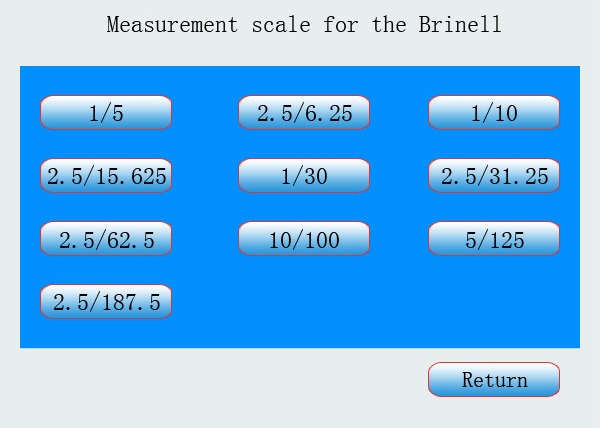

| Brinell scale |
HBW1/5,HBW2.5/62.5,HBW1/10,HBW2.5/15.625,HBW1/30,HBW2.5/31.25,HBW2.5/62.5,HBW10/100,HBW5/125,HBW2.5/187.5 (select 10 scales) |
| Hardness resolution | 0.1HBW |

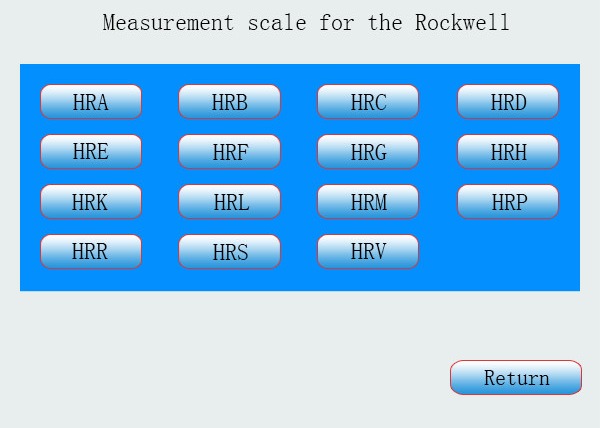

| Rockwell scale | HRA,HRB,HRC,HRD,HRE,HRF,HRG,HRH,HRK,HRL,HRM,HRP,HRR,HRS,HRV |
| Hardness resolution | 0.1HR |

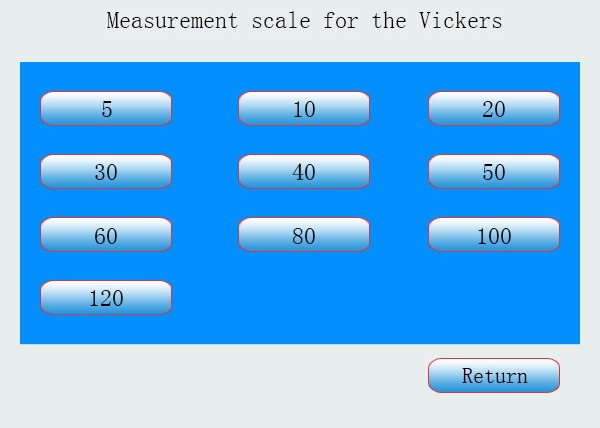

| Vickers scale |
HV5,HV10,HV20,HV30,HV40,HV50,HV60,HV80,HV100,HV120 (select 10 scales) |
| Hardness resolution | 0.1HV |
| Objective | 2.5X,5X(10X,20X optional) |
| Magnification of microscope | Brinell:37.5X, Vickers:75X |
| Hardness measurement | Brinell:8～650HBW Rockwell:20～100HR Vickers:8～2900HV |
| Data output | LCD display,U disk |
| Max height of specimen | Rockwell:220mm, Brinell Vickers:150mm |
| Head - wall distance | 200mm |
| Dimension | 560*260*800mm |
| Weight | About 70Kg |
| Power | AC220V+5%,50-60Hz |
Standard Accessories (The Packing List):
| Item | Quantity | Item | Qunatity |
| Lighting (internal lighting, external lighting) | 1 | Test block(HRC high,HRC low HRB ,HBW2.5/187.5,HV30) | 5 |
| Rockwell,Vickers diamond indenter | Each 1 | Ball indenter(φ1.5875,2.5,5mm) | 3 |
| Eyepiece(15X) | 1 | Objective(2.5X,5X) | 2 |
| Sliding test table | 1 | Large, medium, V-test sets | Each 1 |
| U memory disk, touch pen | Each 1 | Fuse 2A | 2 |
| Level | 1 | Regulating screw | 4 |
| Power cable | 1 | Dust bag | 1 |
| Certificate, warranty card | 1 | Manual | 1 |
