Brinell & Vickers Hardness Tester HBV-30A, Automatic Brinell Hardness Tester

  • Brinell & Vickers Hardness Tester HBV-30A, Automatic Brinell Hardness Tester
  • Brinell & Vickers Hardness Tester HBV-30A, Automatic Brinell Hardness Tester
Place of Origin Beijing
Brand Name HUATEC
Certification ISO, CE, GOST
Model Number HBV-30A
Minimum Order Quantity 1pcs
Packaging Details Standard export package
Delivery Time 1-4days
Payment Terms T/T, Paypal, Western Union
Supply Ability 500pcs per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Color White Conform To GB/T 4340.2, GB/T 231.2, ISO6506-2, ISO6507-2, ASTM E92 And ASTM E10
Measuring Range 8-650HBW, 10-3000HV Max. Height Of Test Piece 130mm
Dimensions 438 X 382 X 708mm Weight About 88kgs
Highlight

vickers hardness machine

,

portable brinell hardness tester
Leave a Message
Product Description

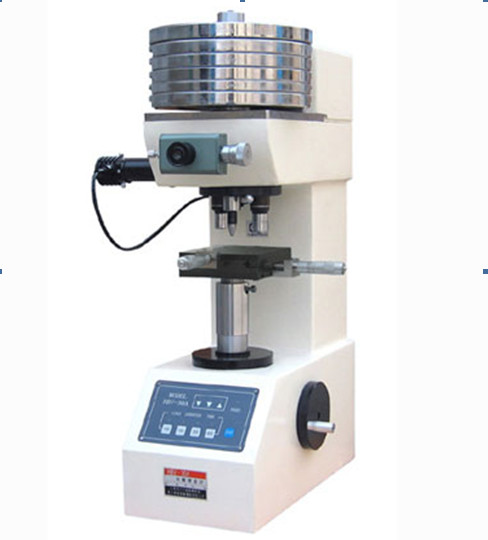

Brinell & Vickers Hardness Tester HBV-30A, Automatic Brinell Hardness Tester



Feature & Use:

* Automatic testing process, no human operating error

* Precision conforms to GB/T 4340.2, GB/T 231.2, ISO6506-2, ISO6507-2, ASTM E92 and ASTM E10

It's suitable to determine the Vickers hardness of steel, non-ferrous metals, ceramics, treated layers of metal surface, and the hardness grads of carburized, nitrided and hardened layers of metals. It is also suitable to determine the Vickers hardness of micro and super thin parts and the Brinell hardness of soft metals and small parts.



Specifications

   Measuring range: 8-650HBW, 10-3000HV

   Test force: 9.807, 24.52, 49.03, 98.07, 196.1, 294.2N

                    (1, 2.5, 5, 10, 20, 30kgf)

   Max. height of test piece: 130mm

   Depth of throat: 100mm

   Magnifications of the measuring system: 500X, 125X

   Min. scale value of the optical micrometer: 0.25um

   Power supply: 220 AC or 110V AC, 50 or 60Hz

   Dimensions: 438 x 382 x 708mm

   Weight: approx. 88kg



Standard accessories

   Coordinate anvil: 1 pc.

   Large flat anvil: 1 pc.

   Small flat anvil: 1 pc.

   V-notch anvil: 1 pc.

   Tungsten carbide ball penetrator: Φ1, Φ2mm, 1 pc. each

   Diamond pyramid penetrator: 1 pc.

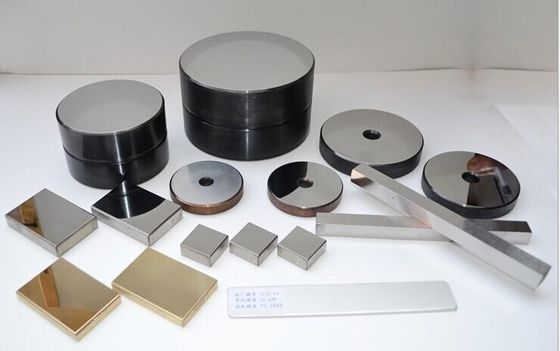

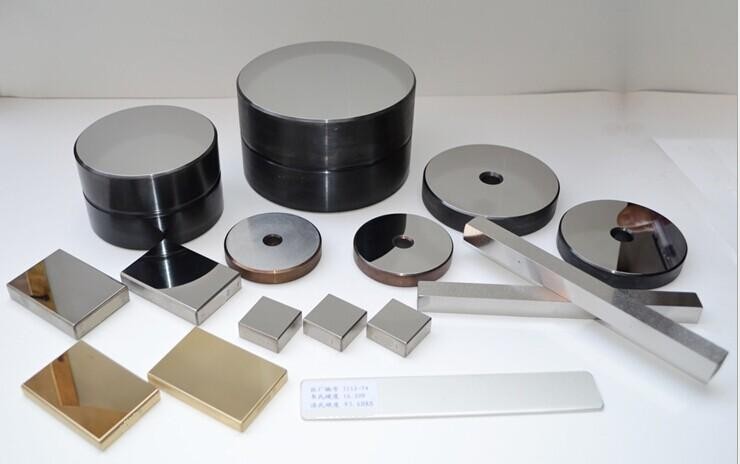

   Brinell standardized block: 2 pcs.

   Vickers standardized block: 2 pcs.

   Electronic calculator: 1 pc.
