Astm E10 3000kgf Portable Hardness Tester Brinell Hydraulic

Place of Origin Beijing
Brand Name HUATEC
Certification ISO, CE, GOST
Model Number HB-P3000
Minimum Order Quantity 1pcs
Packaging Details Standard export package
Delivery Time 1-4days
Payment Terms T/T, Paypal, Western Union
Supply Ability 500pcs per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Test Force 3000 Kgf (1000 Kgf, 750 Kgf, 500 Kgf Optional) Test Ball 10mm Carbide Alloy Ball (5mm Optional)
Test Range 32~650 HBW Opening Dimension 350 Mm (Height) X 100 Mm (Throat Depth)
Indicator Error Complies With ISO 6506, ASTM E10, And ASTM E110 Weight 13.8kg Net
Name Brinell Hardness Tester Portable
Highlight

astm e10 portable hardness tester brinell

,

3000kgf portable hardness tester brinell

,

hydraulic portable brinell hardness tester

Leave a Message
Product Description

3000kgf Hydraulic Brinell Hardness Tester Portable With Brinell Scale Testing Brinell Machine ISO 6506, ASTM E10, and ASTM E110.

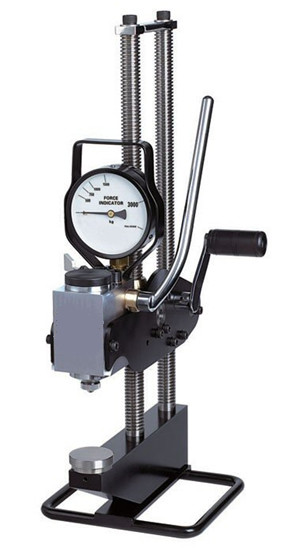

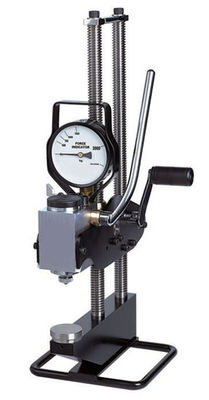

HUATEC HB-P3000 PORTABLE HYDRAULIC BRINELL HARDNESS TESTER



Main Features

Test principle. Apply hydraulic principle permitting loading 3,000 kgf manually.

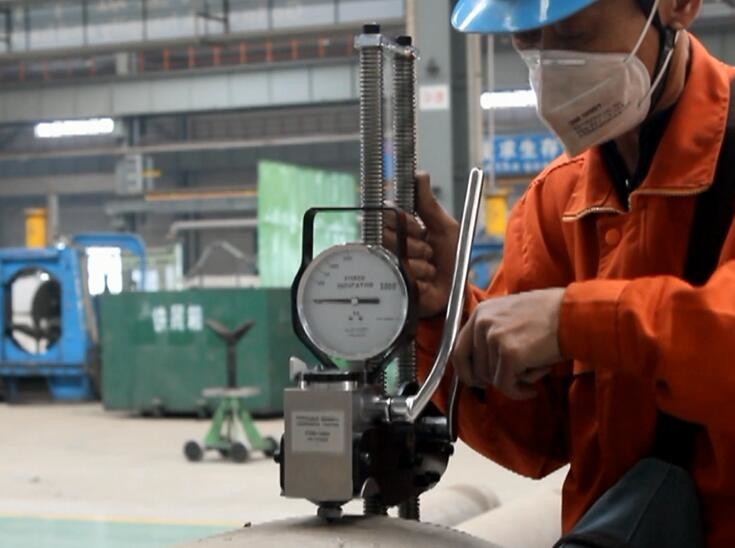

On-site Testing. It could be applied in workshop, simple operation, easy carrying, and testing body hardness of large parts piece by piece.

Permanent Indentation. By 3,000 kgf and 10mm test ball, the indentation is permanent for re-inspecting.

High Reliability. It follows Brinell hardness test method completely, the same as desk testers, reflecting the actual mechanical property of material or parts.

High Accuracy. Indication error, repeatability error and test force accuracy comply with ISO, and ASTM standards, the same as desk testers.

Wide Application Range. As long as clamped to the parts, it could test parts in any shape and size.

Wide Test Range. It could test various common metal materials by its combination of different test force and test head, that is, wide test range.



Application

On-site test of steel products, nonferrous metal, castings, forgings, and semi-finished heat treatment parts.

Applied to too large parts for desk testers to test. Replace Leeb testers which are in low accuracy and reliability.

Indentation could be read by Brinell indentation measurement system and hardness values displayed directly.



Technical Parameters

Test Force: 3000 kgf (1000 kgf, 750 kgf, 500 kgf optional)

Test Ball: 10mm Carbide alloy ball (5mm optional)

Test Range: 32~650 HBW

Opening Dimension: 350 mm (Height) x 100 mm (Throat depth)

Indicator Error: complies with ISO 6506, ASTM E10, and ASTM E110.

Repeatability Error: complies with ISO 6506, ASTM E10, and ASTM E110.

Test Force Error: complies with ISO 6506, ASTM E10, and ASTM E110.

Weight: 13.8 kg



Standard Accessories

Hardness Tester HUATEC HB-P3000

Handle

Brinell hardness block

Anvil (flat, V-type, spot-type )

20X Reading Microscope

10mm Carbide alloy ball



Optional Accessories

Brinell Hardness Block (high or low value)

Carbide alloy ball (5 mm, 10 mm)

Spare Parts (Hydraulic oil capsule, Hydraulic oil, O-ring etc.)

Maintaining Tools

Brinell Indentation Measurement System

Rechargeable Angle Grinder
