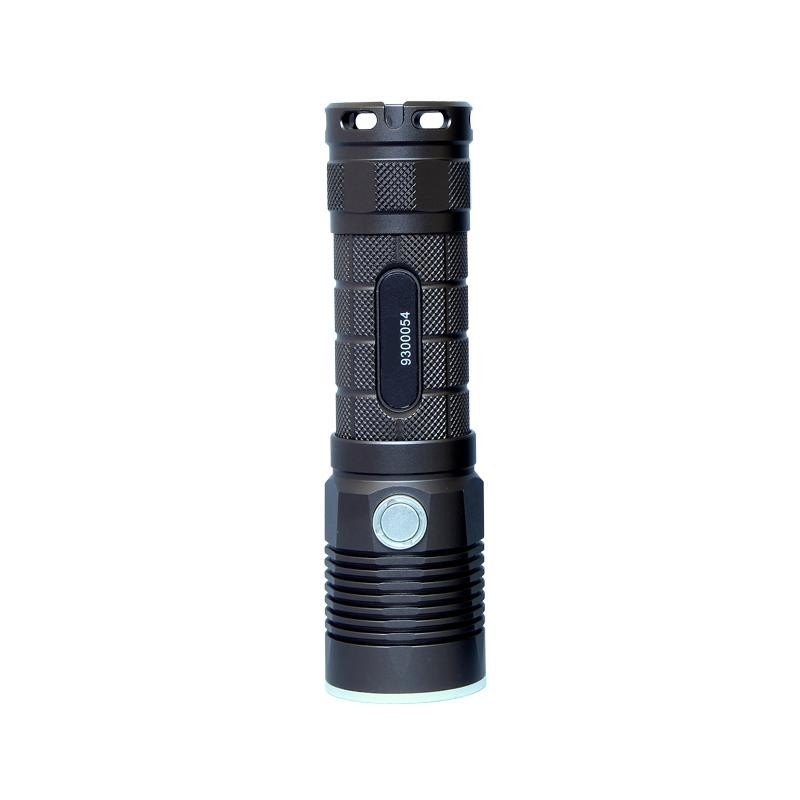

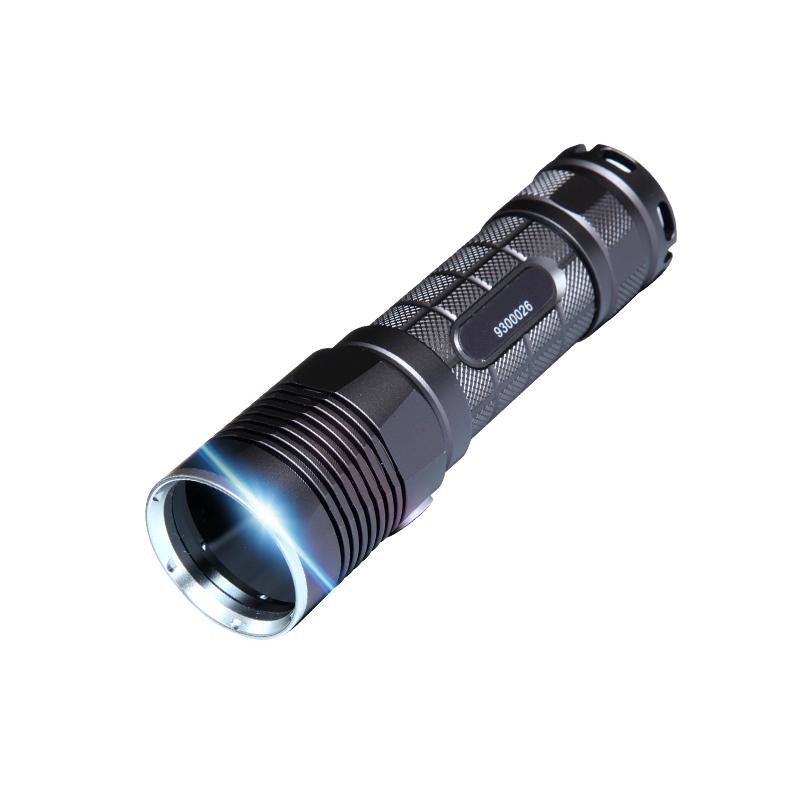

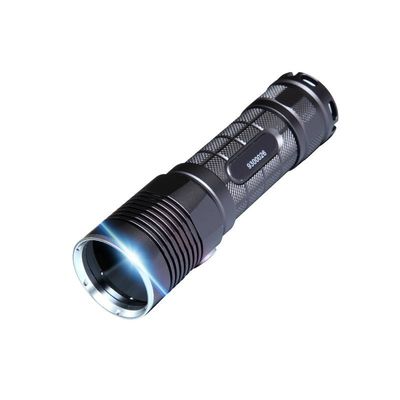

Aluminum Alloy Pocket LED Ultraviolet Lamp 365nm Ultraviolet Band IEC 60529

  • Aluminum Alloy Pocket LED Ultraviolet Lamp 365nm Ultraviolet Band IEC 60529
  • Aluminum Alloy Pocket LED Ultraviolet Lamp 365nm Ultraviolet Band IEC 60529
  • Aluminum Alloy Pocket LED Ultraviolet Lamp 365nm Ultraviolet Band IEC 60529
Place of Origin Beijing
Brand Name HUATEC
Certification ISO, CE, GOST
Model Number DG-10 30 50 70
Minimum Order Quantity 1pcs
Packaging Details Standard export package
Delivery Time 1-4days
Payment Terms T/T, Paypal, Western Union
Supply Ability 500pcs per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Color Black Lifetime Of Lamp Beads 20000 Hours
Power Supply AC100~240V 50/60Hz
Highlight

dye flaw detection

,

penetrant test block
Leave a Message
Product Description

Aluminum alloy pocket lamp type LED Ultraviolet Lamp 365nm Ultraviolet band IEC 60529

DG Series pocket lamp type LED Ultraviolet Lamp is professional portable UV Lamp researched and developed by our company. A complete range of specifications of UV Lamp can meet different requirements. The series possesses ultra-high brightness, long working hours and stable quality etc., and it conforms the National Pressure-bearing Equipment NDT Standard (NB/T 47013-2015).

Main Application

  1. Fluorescence Penetrant Testing
  2. Fluorescence Magnetic Particle Flaw Detection
  3. Fluorescence Leak Detection
  4. Oil Stain, Blot Testing
  5. Special Gas, Oil and Gas Pipeline Testing
  6. Fluorescence Reflection Detection for Special Materials
  7. Criminal Investigation and Legal Medical Expert Survey
  8. Paper Money Authentication, Jewel Appreciation
  9. Agriculture, Foodstuff, Medical Treatment and other relevant industries.

Characteristic and Performance

  1. HUATEC DG Series adopts high-power 365nm Ultraviolet band LED Lamp Beads produced by Japanese NICHIA company, 100% free from UV-B and UV-C element,spectrum is pure.
  2. The lifetime of Lamp Beads reach up to 20000 hours, efficient,energy conservation and environmental protection.
  3. Quick Start, can reach the maximum illuminance as soon as switch on.
  4. Ultra-low power consumption,high efficiency.Stand-by time is far more than likewise products.
  5. Cold light source makes cold operation, outputs the illuminance lasted and steadily.
  6. Optical filter is black vitaglass.
  7. High strength aviation aluminum alloy shell with anodize surface.
  8. Enhance thermal design, can be used continuous for long time.
  9. Configure dedicated high speed charger for each lamp.
  10. Anti magnetic field interference function makes it possible to work in the strong magnetic field.
  11. Dust prevention and waterproof standards reach IEC 60529- IP66 grade, suit to different environments, more safety and reliable.

4. Technical Parameters



Mode

Parameters

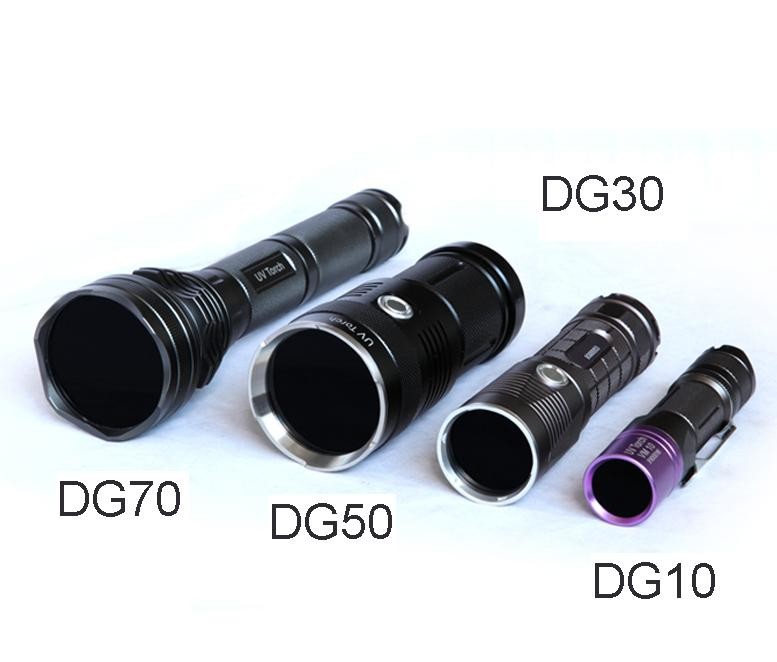

DG-10DG-30DG-50DG-70
Lamp BeadsNICHIA 365nm Ultraviolet band LED Lamp Beads
Lamp Bead Amount13
Input Voltage3.7-4.2V3.7-4.2V3.7-8.4V3.7-4.2V
Output Power3W9W
Intensity of Ultraviolet Ray at 38cm Distance

≥10000
uW/cm2

≥13000
uW/cm2

≥20000
uW/cm2

≥20000
uW/cm2

Irradiated Area at 38cm Distance￠70mm￠45mm￠55mm￠80mm
Diameter of Light Inlet Window￠22￠34￠55￠50
Battery ModelICR 18650ICR 26650ICR 26650ICR 18650
Battery Capacity2600mAh4800mAh4800mAh2600mAh
Number of Battery1124
Charging Time≥5H≥6H≥7H≥5H
Working Hours≥4H≥5H≥8H≥5H
Battery LifeMore than 500 time for fully charge and discharge
Outline DimensionA￠28 mm￠40 mm￠62 mm￠60 mm
B￠24 mm￠33 mm￠34 mm￠50 mm
L128 mm144 mm240 mm143 mm
Weight(including Battery)140g240g520g610g


Aluminum Alloy Pocket LED Ultraviolet Lamp 365nm Ultraviolet Band IEC 60529 0


Diagram of Outline Dimension
Configuration List


 DG-10DG-30DG-50DG-70
Main Device1111
Battery1124
Charger1111
Suit case1111
Operating Manual1111
Certification1111
Warranty Card1111
Packing List1111


Optional Configuration

 DG-10DG-30DG-50DG-70
Protective Glass1111
Triangle Holder 1



Aluminum Alloy Pocket LED Ultraviolet Lamp 365nm Ultraviolet Band IEC 60529 1
