Aluminium Hardness Tester Barcol Hardness Tester Barcol Impressor HBA-100

Place of Origin Beijing
Brand Name HUATEC
Certification ISO, CE, GOST
Model Number HBA-100
Minimum Order Quantity 1pcs
Packaging Details Standard export package
Delivery Time 1-4days
Payment Terms T/T, Paypal, Western Union
Supply Ability 500pcs per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Hardness Scale HS,HV,HB Warranty 12 Months
Product Name Hardness Tester Key Words Metal Hardness Tester
Highlight

metal hardness tester

,

handheld hardness tester

Leave a Message
Product Description

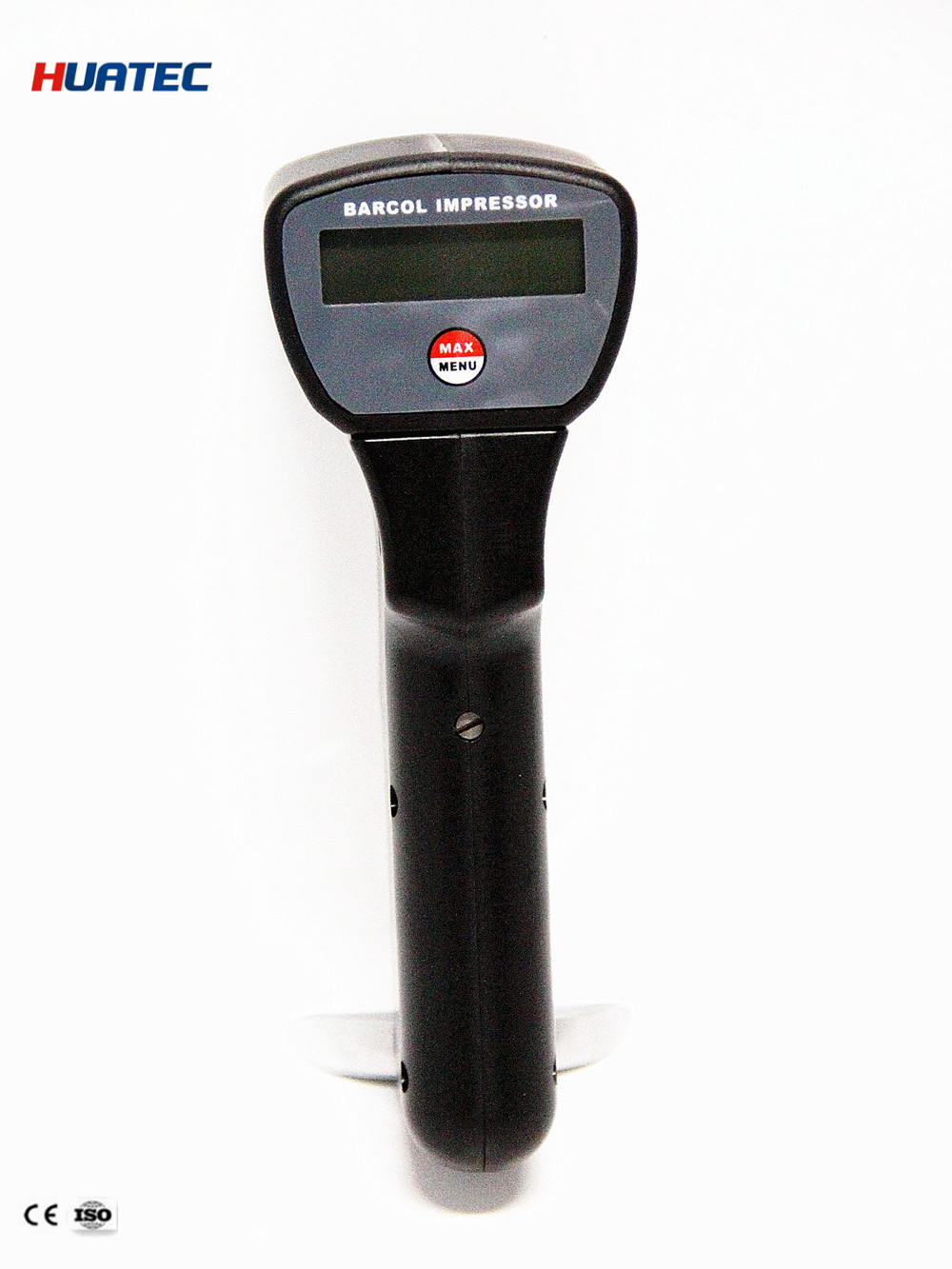

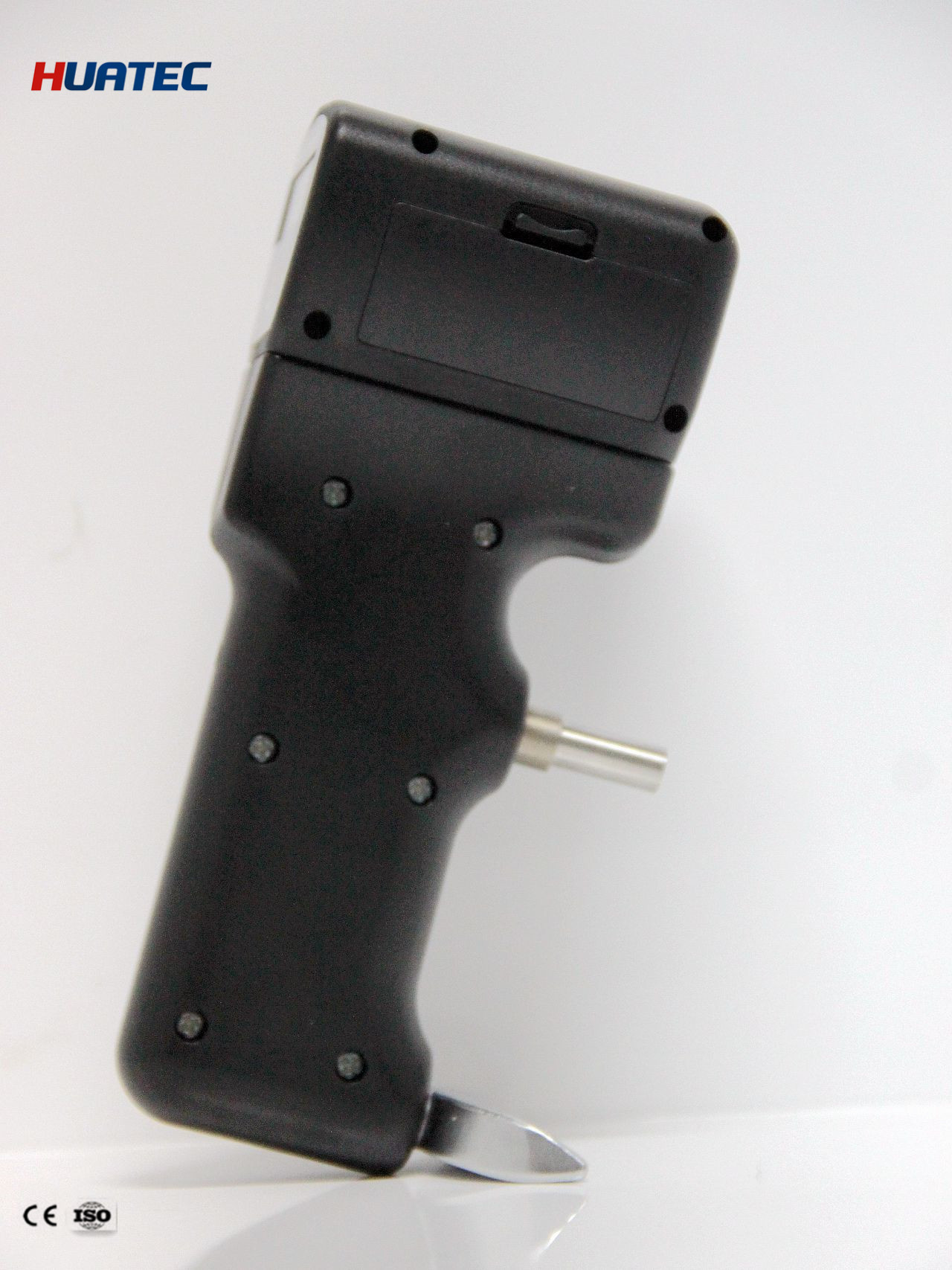

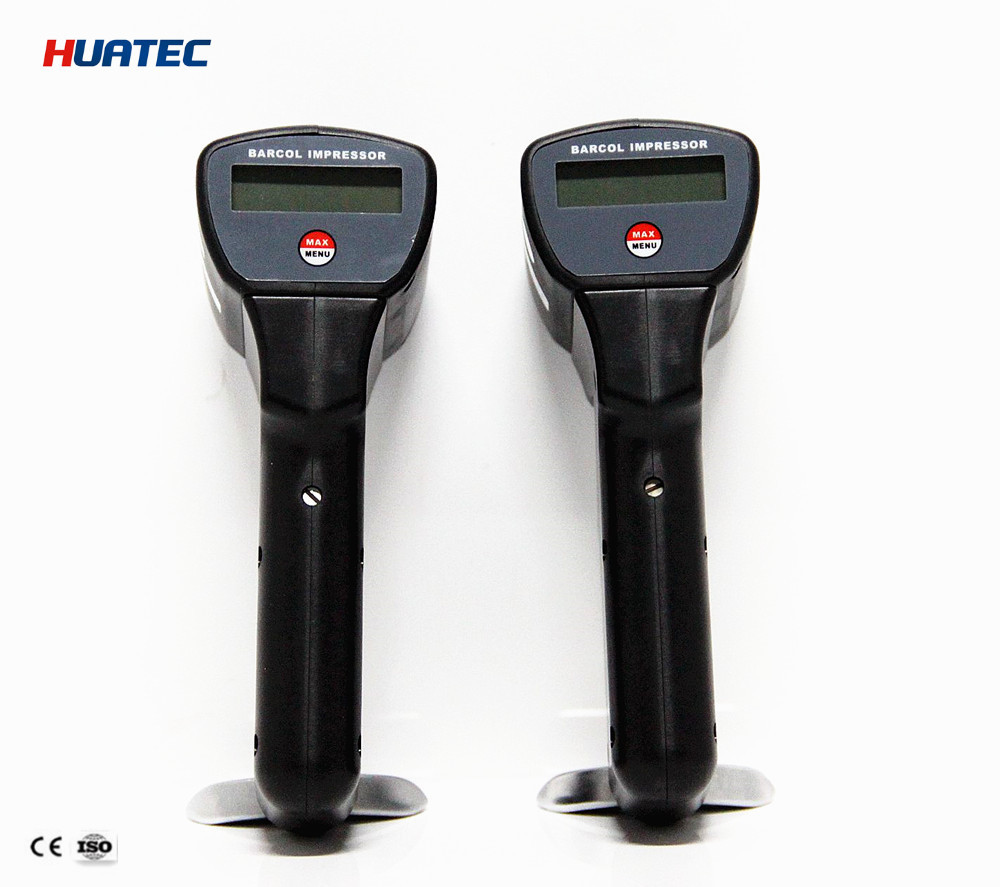

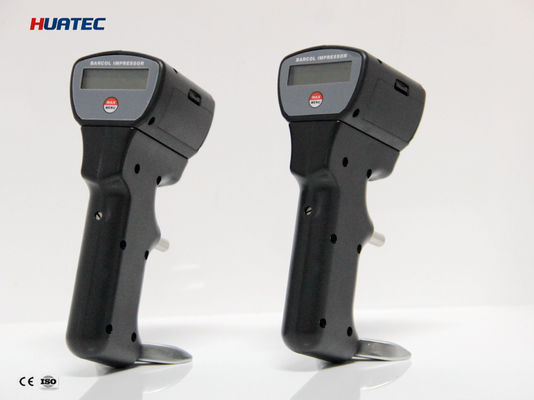

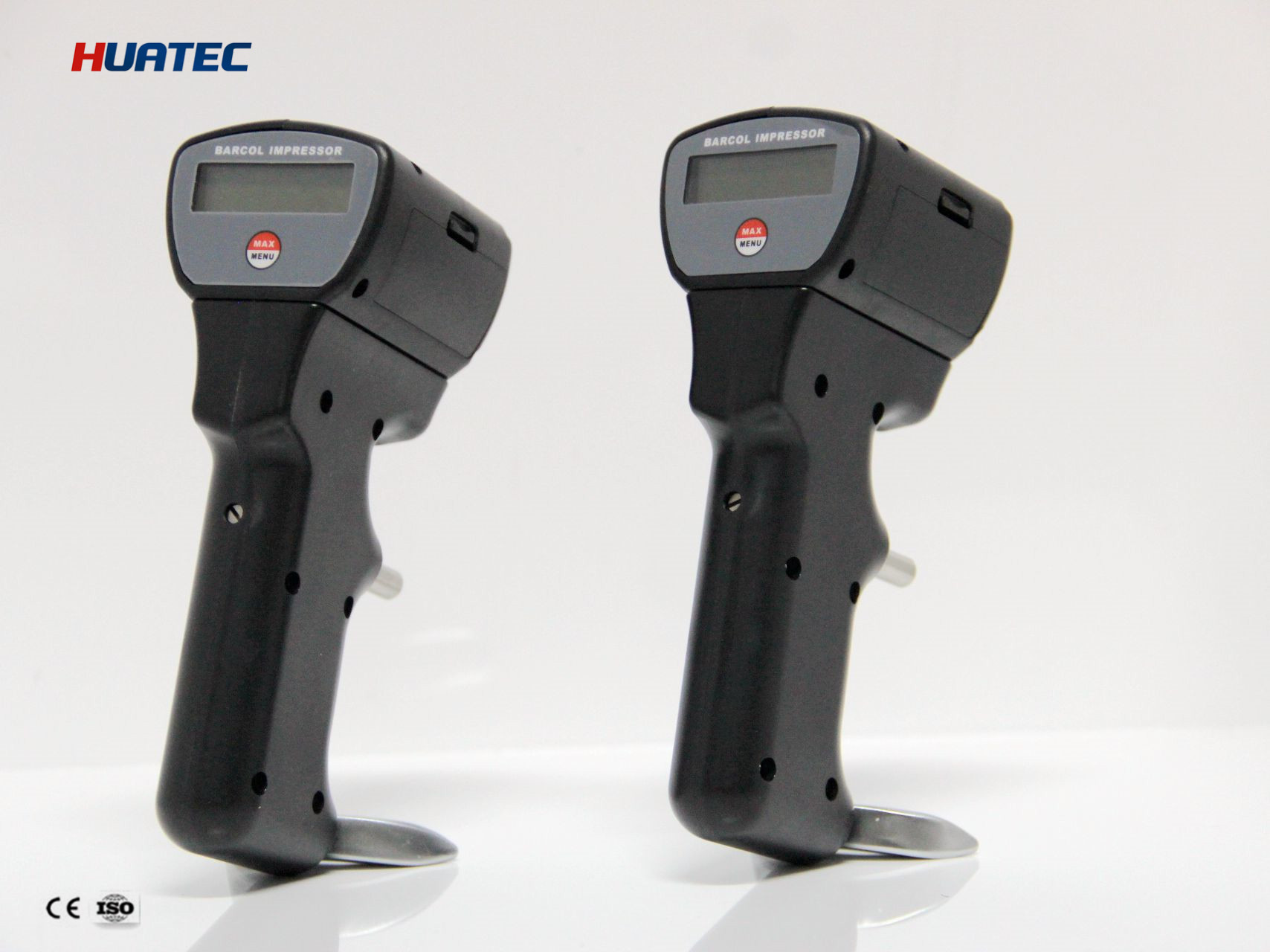

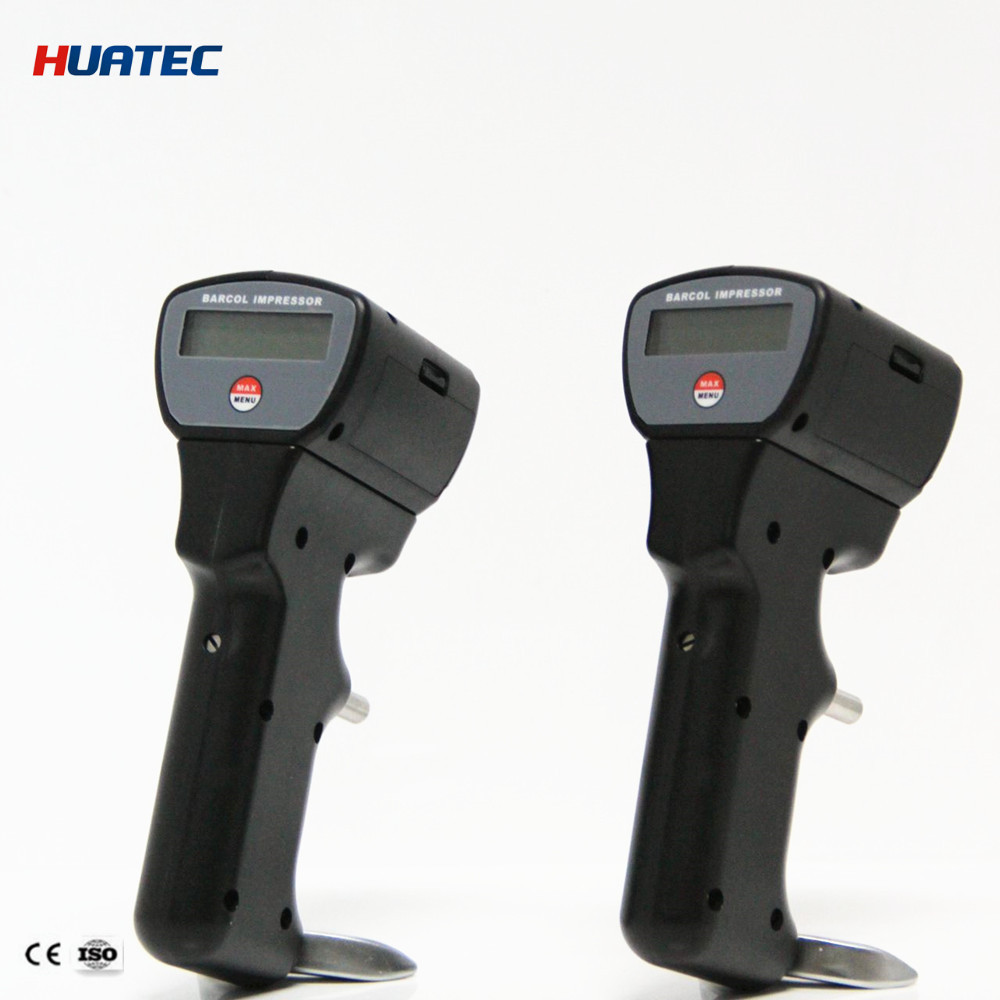

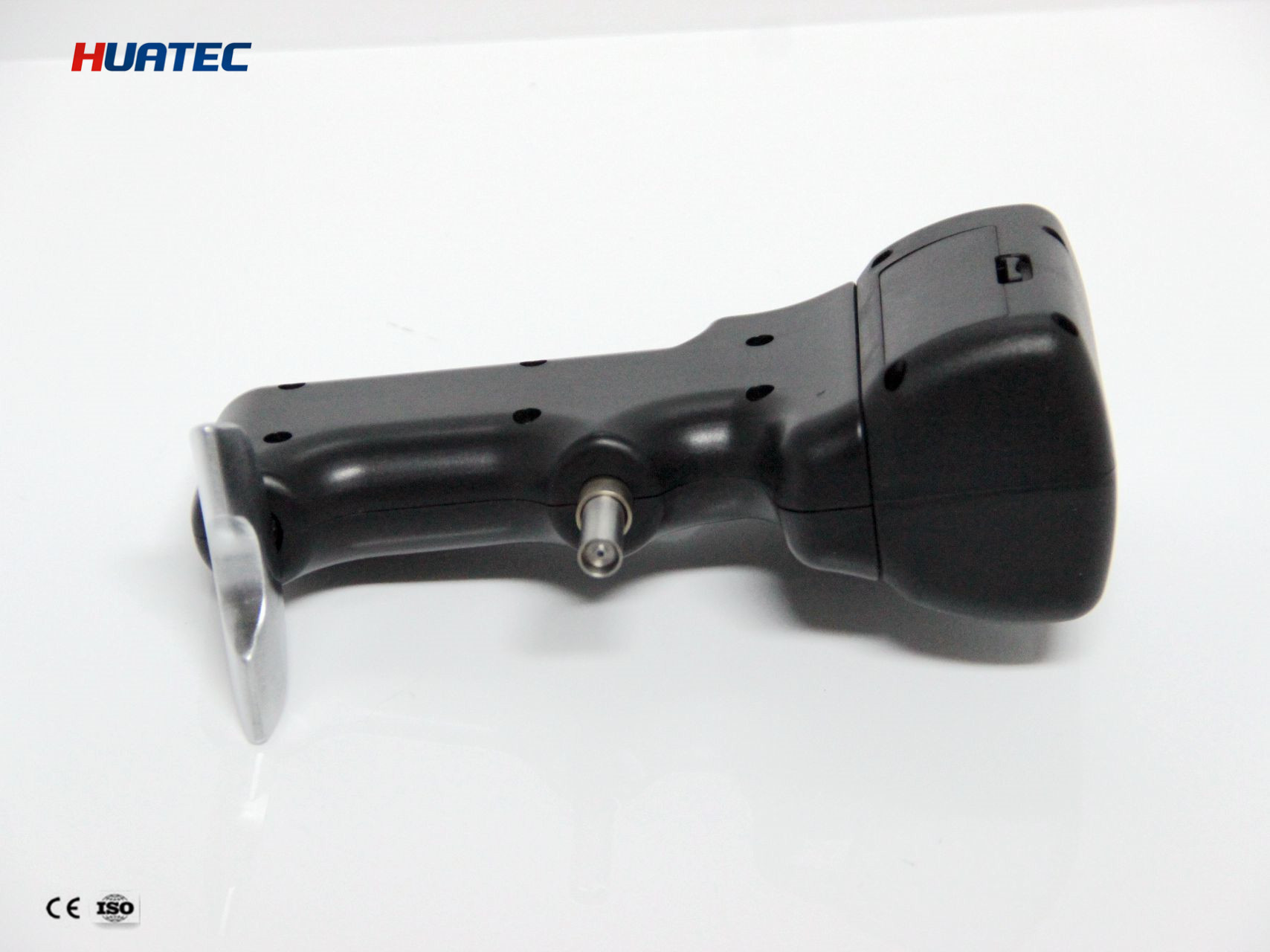

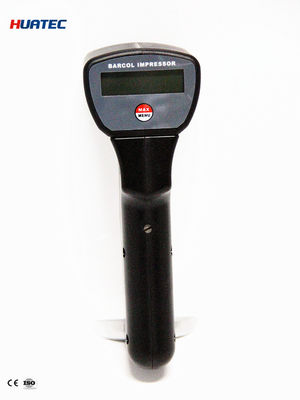

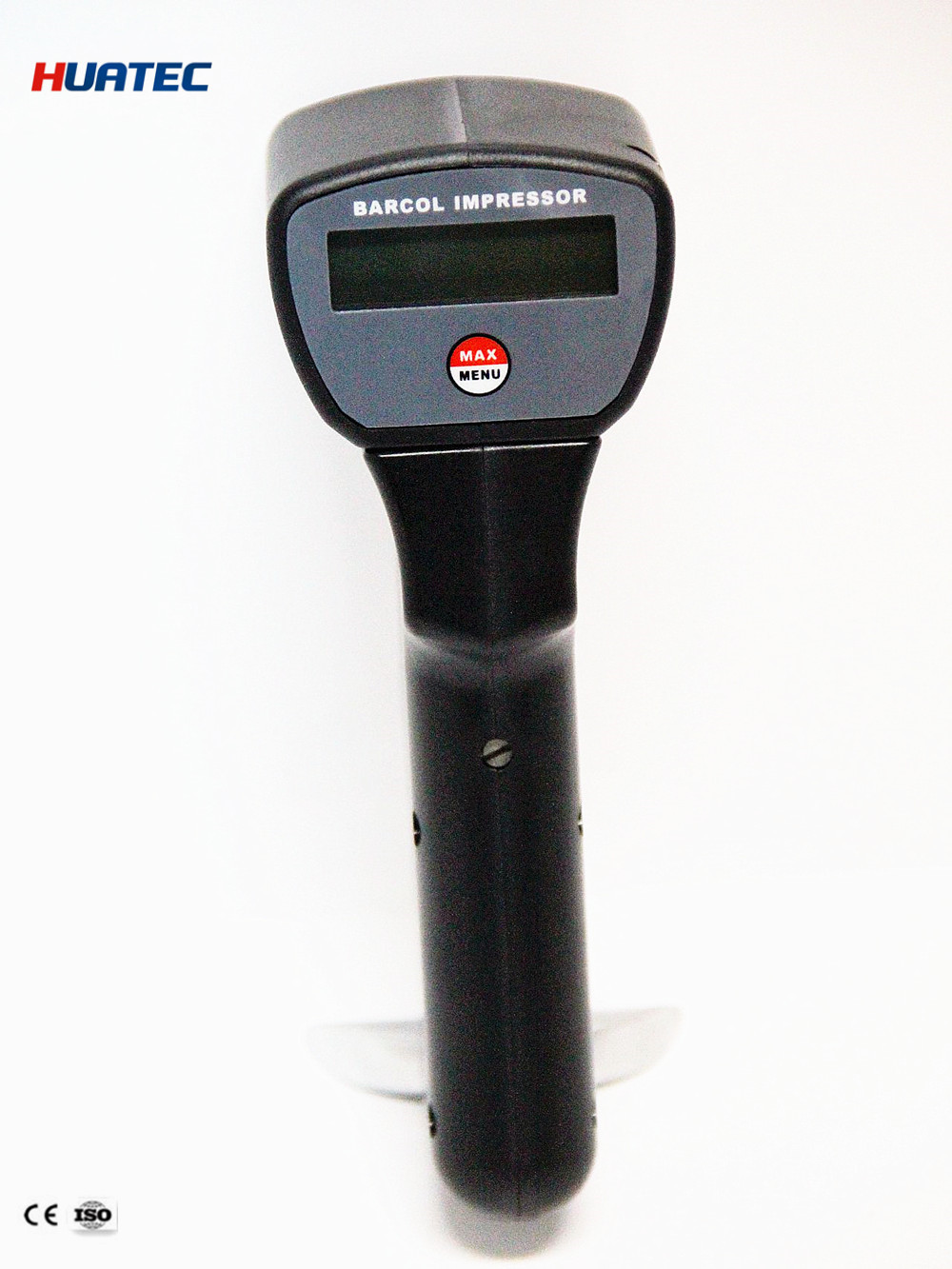

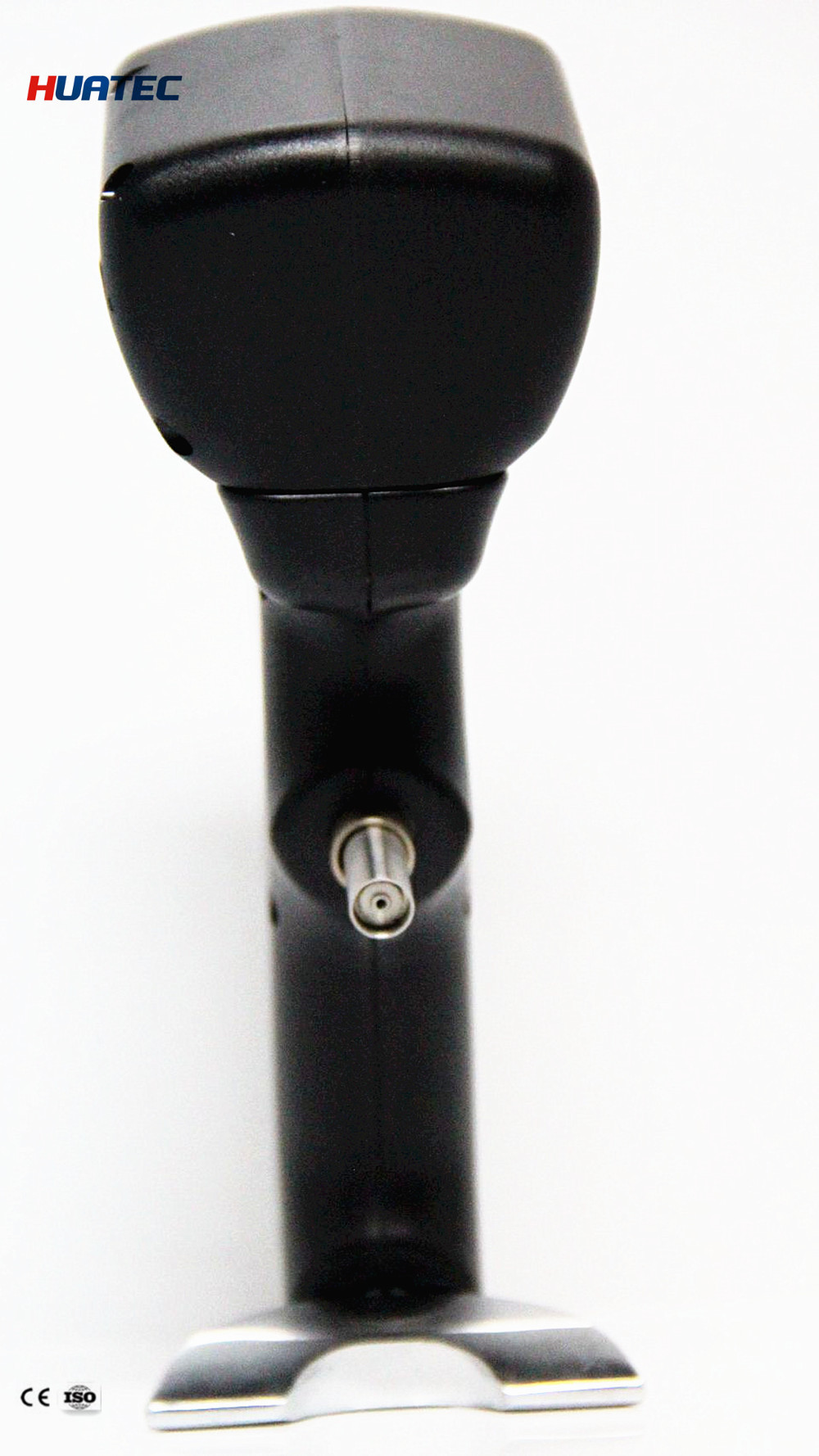

Aluminium Hardness Tester Barcol Hardness Tester Barcol Impressor HBA-100



Main features
Portable indentation hardness tester.

Single hand operation; no operating experience required; can test any workpiece which is  reachable in any site.

Wide valid testing range equivalent to Brinell hardness 25-150HBW. Used to test the hardness of all kinds of aluminum, from very soft aluminum to very hard aluminum alloys.

1,High sensitivity. Featured with 100 scales, much more sensitive than Webster hardness testers applied in aluminum alloys industry.

2,No supporting required. Can test from only one side of the workpiece. No need to move or support the workpiece.
Used to test super large and thick worpieces and assembly parts.

3,Easy conversion. The test results can be converted to HB, HR, HV and HW easily through conversion table.

4,Comply to standard ASTM B648-2000.



Technical parameters

1,Indenter:              26°panhead cone, head face diameter 0.176mm
2,Testing Range:      0~100HBa,equivalent to 25~150HBW
3,Resolution:             0.5HBa
4,Indication error:     hardness range 42~52HBa, ±2HBa
                               hardness range 84~88HBa ±1HBa
5,Repeatability error: hardness range 42~52HBa, ±2HBa
                               hardness range 84~88HBa ±1HBa
6, Net weight:           0.5kg

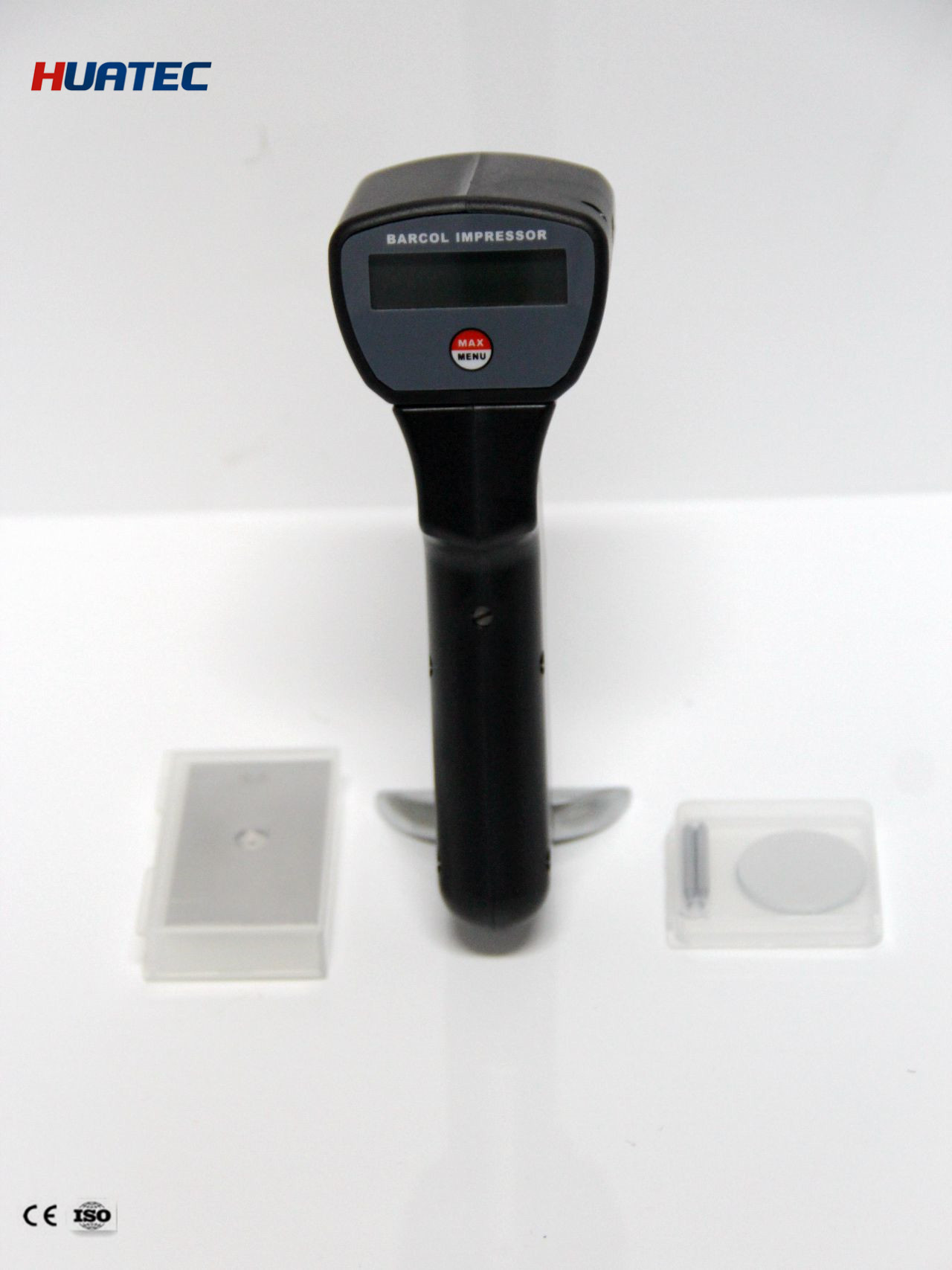

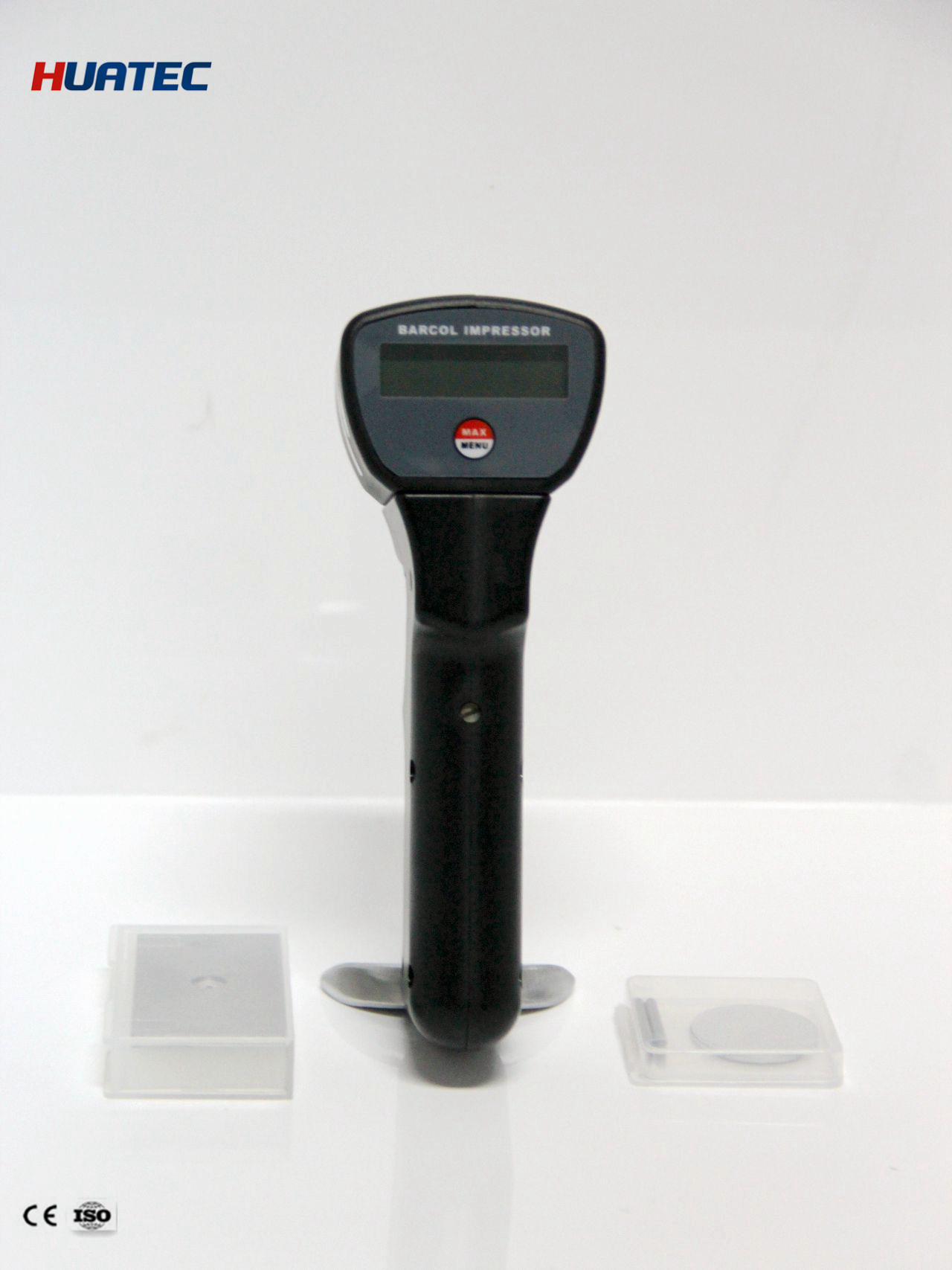

Standard accessories

Main unit          1 pc   Standard block       2pcs    Spanner          1pc

Manual            1pc    Cerficate            1pc
