Aluminium Hardness Tester Barcol Hardness Tester Barcol Impressor HBA-100

Product Details

Place of Origin: Beijing

Brand Name: HUATEC

Certification: ISO, CE, GOST

Model Number: HBA-100

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Packaging Details: Standard export package

Delivery Time: 1-4days

Payment Terms: T/T, Paypal, Western Union

Supply Ability: 500pcs per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                metal hardness tester, handheld hardness tester


Hardness Scale:	HS,HV,HB	Warranty:	12 Months
Product Name:	Hardness Tester	Key Words:	Metal Hardness Tester

Hardness Scale:	HS,HV,HB
Warranty:	12 Months
Product Name:	Hardness Tester
Key Words:	Metal Hardness Tester

Product Description

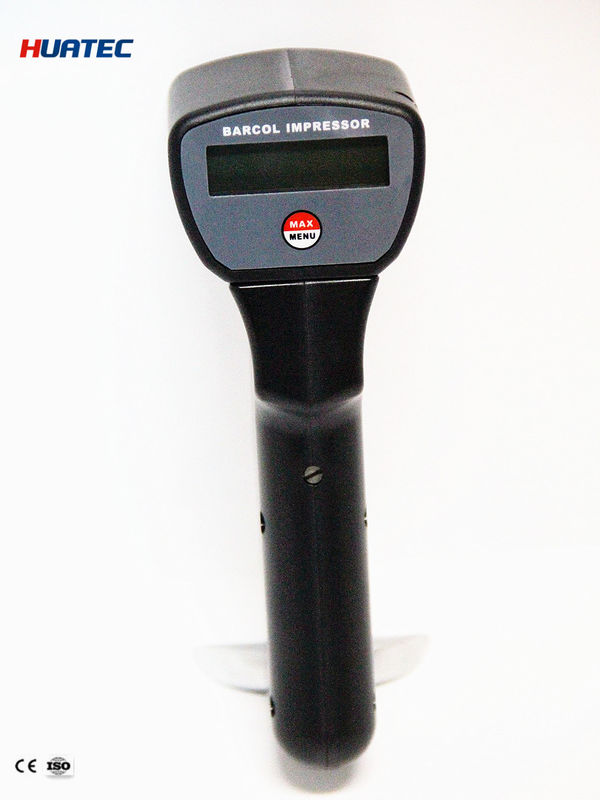

Aluminium Hardness Tester Barcol Hardness Tester Barcol Impressor HBA-100

Main features
Portable indentation hardness tester.

Single hand operation; no operating experience required; can test any workpiece which is reachable in any site.

Wide valid testing range equivalent to Brinell hardness 25-150HBW. Used to test the hardness of all kinds of aluminum, from very soft aluminum to very hard aluminum alloys.

1,High sensitivity. Featured with 100 scales, much more sensitive than Webster hardness testers applied in aluminum alloys industry.

2,No supporting required. Can test from only one side of the workpiece. No need to move or support the workpiece.
Used to test super large and thick worpieces and assembly parts.

3,Easy conversion. The test results can be converted to HB, HR, HV and HW easily through conversion table.

4,Comply to standard ASTM B648-2000.

Technical parameters

1,Indenter:              26°panhead cone, head face diameter 0.176mm
2,Testing Range:      0~100HBa,equivalent to 25~150HBW
3,Resolution:             0.5HBa
4,Indication error:     hardness range 42~52HBa, ±2HBa
                               hardness range 84~88HBa ±1HBa
5,Repeatability error: hardness range 42~52HBa, ±2HBa
                              hardness range 84~88HBa ±1HBa
6, Net weight:           0.5kg

Standard accessories

Main unit 1 pc Standard block 2pcs Spanner 1pc

Manual 1pc Cerficate 1pc
