Accurate Ultrasonic Thickness Gauge Abs Material With Dual Element Probe

  • Accurate Ultrasonic Thickness Gauge Abs Material With Dual Element Probe
  • Accurate Ultrasonic Thickness Gauge Abs Material With Dual Element Probe
  • Accurate Ultrasonic Thickness Gauge Abs Material With Dual Element Probe
  • Accurate Ultrasonic Thickness Gauge Abs Material With Dual Element Probe
  • Accurate Ultrasonic Thickness Gauge Abs Material With Dual Element Probe
  • Accurate Ultrasonic Thickness Gauge Abs Material With Dual Element Probe
  • Accurate Ultrasonic Thickness Gauge Abs Material With Dual Element Probe
Place of Origin Beijing
Brand Name HUATEC
Certification ISO CE
Model Number TG-3250
Minimum Order Quantity 1
Packaging Details Standard export package
Supply Ability 500 per months

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material ABS Accuracy 0.03mm Or 0.3%*H
Interface Mini-USB Interface For Communication Principle Support Pulse-Echo, Echo-Echo, Interface-Echo Measurement Modes, Gain Adjustable
Testing Range 0.75-400mm Steel Resolution 0.001mm / 0.0001inches
Display FSTN LCD Display With Backlight Sound Velocity 1 ~ 19999 M/s
Size 157mm*78mm*37mm Weight 260g
Memory 1000 Datas Display Value Coating And Base Material Value
Highlight

portable ultrasonic thickness gauge

,

through coating thickness gauge
Leave a Message
Product Description

Portable Ultrasonic Thickness Gauge Ultrasonic Pipe Thickness Gauge Ultrasonic Steel Thickness Gauge

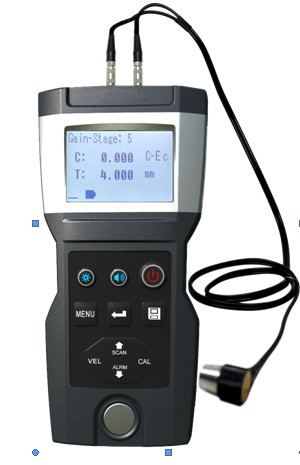

Thru Coating Ultrasonic Thickness Gauge TG-3250



TG-3250 is a high precision digital ultrasonic thickness gauge. Based on the same operating principles as SONAR it is capable of measuring the thickness of various materials with accuracy as high as 0.001 millimeters, or 0.0001inches. It is adapted to measure the thickness of good conductor for ultrasonic, such as metal (steel, cast iron, aluminum, copper), plastic, ceramic, glass, glass fiber and so on



Features:

  • High precision timing chip & V-Path model used for precision measurement
  • Real-time Temperature Compensation Technic supporting One-time probe calibration for long term usage.
  • Thru-paint measurement (Standard Version), simultaneously measure coatings and material thicknesses (Advanced Version)
  • Bluetooth & Mini-USB interface for printing & communication, host software upgradable
  • Can work with dual element probe and also single element probes.



Main Functions:

  • Support Pulse-Echo, Echo-Echo, Interface-Echo measurement modes, gain adjustable
  • Scan mode, min/max capture mode, differential mode & alarm mode support
  • Sound velocity calibration by known thickness
  • Storage capacity of 1000 measurements with thickness, velocity, time, etc.
  • Communicate with PC or smart phones, support online measurement & command control (OC version)

                 Technical Parameters

Measure Range 0.75~400 mm (Steel) Sound Velocity Range 1 ~ 19999 m/s
Resolution 0.001mm / 0.0001inches Accuracy 0.03mm or 0.3%*H
Measuring Period 4 times per second Probe Frequency 2MHz,3MHz,5MHz,7.5MHz
Calibration Mode Probe Calibration & Two Point Calibration Calibration block 4.000mm(Steel)
Measurement Mode P-E, I-E, E-E Gain Adjustable 16 Stages
Measuring Mode Single point, scan, min/max capture, differential, alarm Data Storage 1000 measurements, including thickness, sound velocity, time, etc.
Display English / Chinese selectable,
FSTN LCD Display with backlight		 Display Content Thickness, Sound velocity, Stability, Battery, Measuring Mode, etc.
Communication Bluetooth & Mini-USB interface, virtual serial port protocol Print Optional portable Bluetooth thermal printers
Power Supply 3.7V Li-Ion chargeable battery Power off Timeout power off, low battery power off
Usage Temperature -10 ~ 50 °C Storage Temperature -30 ~ 60 °C
Size 157mm*78mm*37mm Weight About 260g
Shell Material ABS & PC alloy Box Material ABS (IK08 / IP67)


                  Probe Parameters

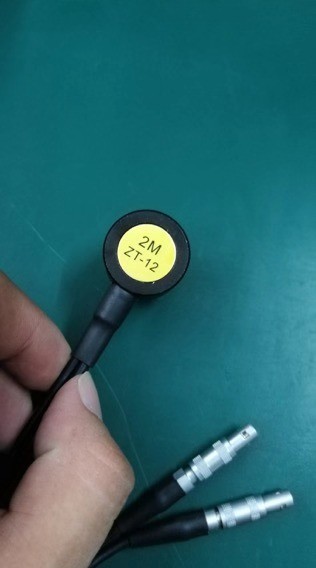

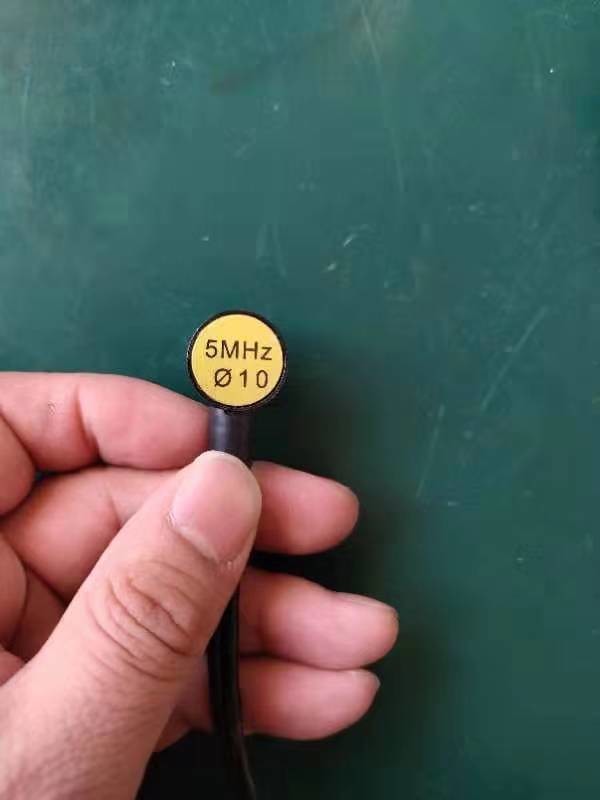

Label 5M Φ10 5M PT-08 2M ZT-12 7.5M PT-06 3M GT-12
Measure Range (Steel) 0.8~300 mm 0.8~300 mm 3.0~400 mm 0.75~50 mm 2.0~200 mm
Min. Measure Diameter Ø25 x 3 mm Ø20 x 1.2 mm Ø30 x 4 mm Ø15 x 1.2 mm Ø25 x 3 mm
Probe Diameter 13mm 11mm 17mm 9mm 15mm
Effective area Diameter 10mm 8mm 12mm 6mm 12mm
Probe Frequency 5MHz 5MHz 2MHz 7.5MHz 3MHz
Contact Temperature -10~60°C -10~60°C -10~60°C -10~60°C -10~310°C



                Version Comparison

Version Measurement Mode Thru-paint measurement Measure Coatings
Basic P-E x x
Standard P-E, I-E, E-E √ x
Advanced P-E, I-E, E-E, E-C, C-E √ √
