Home > products > Vibration Meter > High accuracy 500KG load Electro-dynamic Vibrator Shaker HG6610-N3

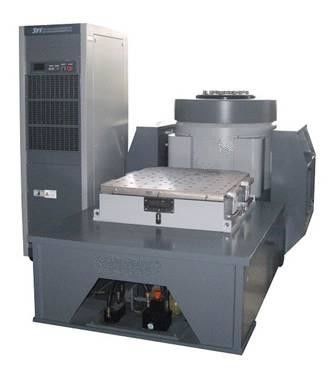

High accuracy 500KG load Electro-dynamic Vibrator Shaker HG6610-N3
High accuracy 500KG load Electro-dynamic Vibrator Shaker HG6610-N3

High accuracy 500KG load Electro-dynamic Vibrator Shaker HG6610-N3

Product Details

Place of Origin: China

Brand Name: HUATEC

Certification: CE ISO

Model Number: HG6610-N3

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: export standard package

Supply Ability: 10 per months

Get Best Price

Product Details

Product Description
Product Details
Highlight:
Material:
Aluminum Alloy
Rated Sine Force:
32KN
Rated Random Force:
32KN
Frequency Range:
2 – 3000 Hz
Max. Displacement:
51 Mm（P-P）
Max. Acceleration:
980 M/s2
Max. Velocity:
2.00 M/s
Max, Load:
500KG
Size Of Table:
Φ 400 Mm
Mass Of Moving Elements:
32KG
Shape W×H×D (mm):
1000×1060×880
Weight:
2000kg
Product Name:
Electro-dynamic Vibrator
Material:
Aluminum Alloy
Rated Sine Force:
32KN
Rated Random Force:
32KN
Frequency Range:
2 – 3000 Hz
Max. Displacement:
51 Mm（P-P）
Max. Acceleration:
980 M/s2
Max. Velocity:
2.00 M/s
Max, Load:
500KG
Size Of Table:
Φ 400 Mm
Mass Of Moving Elements:
32KG
Shape W×H×D (mm):
1000×1060×880
Weight:
2000kg
Product Name:
Electro-dynamic Vibrator
Product Description

High accuracy 500KG load Electro-dynamic Vibrator Shaker HG6610-N3​



HG6610-N3 Electro-dynamic Vibrator



System Performance

type: HG6610-N3

Rated sine force: 32KN

Rated random force:32 KN

Frequency range: 2 – 3000 Hz

Max. displacement: 51 mm(P-P)

Max. acceleration: 980 m/s2

Max. velocity: 2.00 m/s

Accuracy:

Acceleration 5-10Hz ±5%

Acceleration 10-10KHz ±3%

Velocity 10-1000Hz ±3%

Displacement 30-150Hz ±3%

Max, load: 500 Kg

Size of Table: Φ 400 mm

Mass of moving elements:32 kg

Acceptable eccentric torque:400 N×m

Shape W×H×D (mm) :1000×1060×880

Weight : 2000 Kg



Switching power amplifier

type: SA-36

operation mode: Switching

Output power: 40 KVA

Single to noise ratio: >65 Db

Shape W×H×D (mm) :550×1700×800

Weight : 410 Kg

Cooling Blower



Slip table

Type:HG-1010

Dimension: 1000×1000 mm

Max. Load: 500kg

Material: Aluminum alloy

Frequency upper limit: 2000Hz

Max. Displacement: 51 mm



Head expander

Type: HG-800

Dimension: 800×800 mm

Mass: 135kg

Material: Aluminum alloy

Shape:Gridiron



Static & dynamic automatic center holding set

Type: HG-1

Purpose: keep the central position of shaker through adjusting the air volume of air spring.



Vibration controller

Type: HG-2000

Hardware: 4input channels,1 output channel

Software: Sine, random, shock
