Vertical Illumination Portable Metallurgical Microscope For Metal Hardness Testing Machine

Product Details

Place of Origin: Beijing

Brand Name: HUATEC

Certification: ISO, CE, GOST

Model Number: HSC-500

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Packaging Details: Standard export package

Delivery Time: 3days

Payment Terms: T/T, Paypal, Western Union

Supply Ability: 500pcs per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                vertical illumination portable metallurgical microscope, metal hardness testing portable metallurgical microscope


Light Source:	Vertical Illumination Light Source	Eyepiece:	10X Dia. 6mm
Objective:	10X, 20X,50X	Total Magnification:	100X-500X
Focusing Range：:	25mm	Mechanical Tube Length：:	160mm
Weight:	N.W.: 0.75kg G.W.: 0.9kg	TDimension:	Instrument Dimension: 230X110X70（mm）
Power Supply:	3.6v	Product Name:	Portable Metallurgical Microscope

Light Source:	Vertical Illumination Light Source
Eyepiece:	10X Dia. 6mm
Objective:	10X, 20X,50X
Total Magnification:	100X-500X
Focusing Range：:	25mm
Mechanical Tube Length：:	160mm
Weight:	N.W.: 0.75kg G.W.: 0.9kg
TDimension:	Instrument Dimension: 230X110X70（mm）
Power Supply:	3.6v
Product Name:	Portable Metallurgical Microscope

Product Description

Vertical Illumination Portable Metallurgical Microscope For Metal Hardness Testing Machine

Product Description:

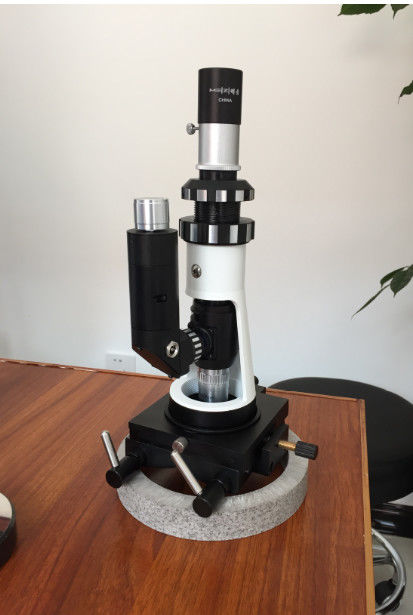

HSC-500 Portable Metallurgical Microscopes has vertical illumination light source.

Applicable to metallographic inspection of various work pieces which is large or unable to make sample.

No need to cut sampling and can directly grinding and polishing, in order to ensure the integrity of the work piece.

This machine can identify different metal and alloy organization structure.

Widely used in Casting quality appraisal, raw material inspection or organization analysis after handling the materials by factory, laboratory.

Main Parameters:

No.	Item	Specification
1	Eyepiece	WF10X/ф6
2	Objective	10X, 20X,50X
3	Total Magnification	100X-500X
4	Focusing range:	25mm
5	Mechanical tube length:	160mm
6	Power supply	3.6v
7	Weight	N.W.: 0.75kg G.W.: 0.9kg
8	Dimension	Instrument dimension: 230X110X70(mm)

Standard configuration:

No.	Item	Main Specification	Unit	Quantity
1	Main unit	HSC-500	Set	1
2	Objective	10X, 40X,50X (optional)	Piece	1 each
3	Eyepiece	10X	Piece	1
4	Illuminator	Installed on the main body	Piece	1
5	Battery charger		Piece	1
6	Magnetic base		Piece	1
7	C mount adapter		Piece	1
8	Instruction manual		Piece	1
9	Calibration certificate		Piece	1

Optional parts:

Eyepiece: 12.5X

Objective: 50X
