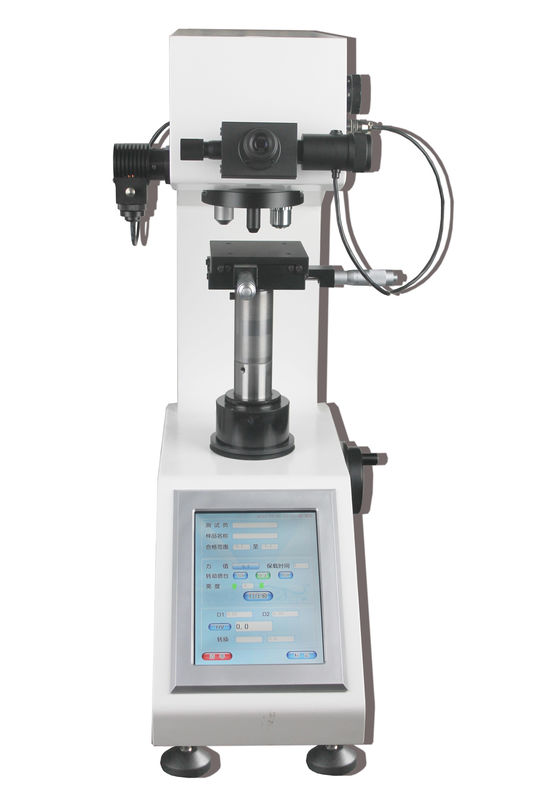

Automatic Loading Micro Vickers Hardness Tester With 8 Inch Screen Vickers Tester

Product Details

Place of Origin: Beijing

Brand Name: HUATEC

Certification: ISO, CE, GOST

Model Number: HV-50MDT

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Packaging Details: Standard export package

Delivery Time: 3days

Payment Terms: T/T, Paypal, Western Union

Supply Ability: 500pcs per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                automatic loading micro vickers hardness tester, 8inch screen micro vickers hardness tester, automatic loading micro hardness testing machine


Screen:	8 Inch Touch Screen Interface	Auto Turret:	Indenter And The Objective Lens Automatically Switch To Each Other
Memory:	Saved In EXCEL Format On USB Disk	Test Force:	1.0Kgf(9.8N)、5.0Kgf(49.0N)、10Kgf(98.0N)、20Kgf(196N)、30Kgf(294N)、50Kgf(490N)
Meet Standard:	GB/T4340，ASTM E92	Hardness Test Range:	8~2900HV
Test Force Application Method:	Automatic (loading, Preserving, Unloading)	Test Microscope Magnification:	100X、200X（Both Of Them Can Be Used For Testing）
Maximum Allowable Specimen Height:	160mm	Distance From Head To Wall:	135mm
Size:	600190620mm	Weight:	About 50 Kg
Power Supply:	AC220V + 5%, 50 To 60 Hz	Product Name:	Vicker Hardness Tester

Screen:	8 Inch Touch Screen Interface
Auto Turret:	Indenter And The Objective Lens Automatically Switch To Each Other
Memory:	Saved In EXCEL Format On USB Disk
Test Force:	1.0Kgf(9.8N)、5.0Kgf(49.0N)、10Kgf(98.0N)、20Kgf(196N)、30Kgf(294N)、50Kgf(490N)
Meet Standard:	GB/T4340，ASTM E92
Hardness Test Range:	8~2900HV
Test Force Application Method:	Automatic (loading, Preserving, Unloading)
Test Microscope Magnification:	100X、200X（Both Of Them Can Be Used For Testing）
Maximum Allowable Specimen Height:	160mm
Distance From Head To Wall:	135mm
Size:	600190620mm
Weight:	About 50 Kg
Power Supply:	AC220V + 5%, 50 To 60 Hz
Product Name:	Vicker Hardness Tester

Product Description

Automatic Loading Automatic Turret Vickers Tester Vicker Hardness Tester 8 Inch Screen

HV-50MDT Auto Turret vickers hardness Tester

Main Features:

Model HV-50MDT Automatic Turret Vickers hardness tester with large 8 inch LCD screen display, use the menu interface type structure, can be in operation panel choose hardness HV or HK (option), test of hardness value, automatic input, automatic display. For all kinds of hardness value mutual conversion and the testing result is automatic storage, processing, printing with RS-232 interface, and computer online. The brightness of light source is adjustable , and instrument can have a build-in camera, image will be more clear. Hardness value error can be modified through software input; hardness value more accurate meets the requirement.

Technical Specifications:

Model	HV-50MDT
Test force	1.0Kgf(9.8N),5.0Kgf(49.0N),10Kgf(98.0N),20Kgf(196N),30Kgf(294N),50Kgf(490N)
Standard Conformed to	GB/T4340,ASTM E92
Min measuring unit	0.01un
Conversion Scale	HRA,HRB,HRC,HRD,HRF,HV,HK,HBW,HR15N,HR30N,HR45N,HR15T,HR30T,HR45T
Hardness measuring range	8~2900HV
method of testing force applied	Automatic (loading, Dwelling , unloading)
Test microscope magnification	100X,200X(Both of them can be used for testing)
Test force dwell time	0~60s
Data output	8inch LCD screen display,60 kinds of test results storage, Inside Printer, RS-232
Maximum specimen height	160mm
Distance from the center to the outer wall of the indenter	135mm
Dimensions	600190620mm
Net Weight	About 50Kg
Power supply	AC220V+5%,50-60Hz

Operation interface:

Standard Accessories:

Item	Quantity	Item	Quantity
10X eyepiece test	1	Middle, Large, V shape testing table	Each 1
Axle weight		Adjusting screw	4
Weight	4	Spare fuse(2A)	2
Vickers hardness block	2	Dust cover	1
Power line	1	Product Manual	1

Optional Accessories:

Item	Item
Test software	Cross test sets
