Home > products > Brinell Hardness Tester > Z Axis Brinell Hardness Tester Automatically Focus Closed Loop Digital Encoder Objective
Z Axis Brinell Hardness Tester Automatically Focus Closed Loop Digital Encoder Objective
Z Axis Brinell Hardness Tester Automatically Focus Closed Loop Digital Encoder Objective
Z Axis Brinell Hardness Tester Automatically Focus Closed Loop Digital Encoder Objective

Z Axis Brinell Hardness Tester Automatically Focus Closed Loop Digital Encoder Objective

Product Details

Place of Origin: Beijing

Brand Name: HUATEC

Certification: ISO, CE, GOST

Model Number: HB-3000XP-Z

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Packaging Details: Standard export package

Delivery Time: 1-4days

Payment Terms: T/T, Paypal, Western Union

Supply Ability: 500pcs per month

Get Best Price

Product Details

Product Description
Product Details
Highlight:

z axis brinell hardness tester

,

automatically focus brinell hardness tester

,

closed loop brinell hardness test equipment

Digital Screen:
Touch Screen
Advanced Technology:
Auto Turret, Closed-loop Pressure Control, Automatic Loading, Automatic Load;
Wide Force Measurement Range:
From 62.5 To 3000 Kg
Ball Diameter Error Of Less Than:
+/- 1 Micron
USB Interface:
U Disc, Excel File
Closed-loop:
Automatic Closed-loop Pressure Control
Z-axis:
Z-axis Automatic Ascending And Descending
Standards:
BSEN 6506, ISO 6506, ASTM E10, GB/T231
Hardness Range:
3.18-653HBW
Indenter And Objective:
Automatic Replacement
Product Name:
Brinell Machine
Digital Screen:
Touch Screen
Advanced Technology:
Auto Turret, Closed-loop Pressure Control, Automatic Loading, Automatic Load;
Wide Force Measurement Range:
From 62.5 To 3000 Kg
Ball Diameter Error Of Less Than:
+/- 1 Micron
USB Interface:
U Disc, Excel File
Closed-loop:
Automatic Closed-loop Pressure Control
Z-axis:
Z-axis Automatic Ascending And Descending
Standards:
BSEN 6506, ISO 6506, ASTM E10, GB/T231
Hardness Range:
3.18-653HBW
Indenter And Objective:
Automatic Replacement
Product Name:
Brinell Machine
Product Description

Z Axis Automatically Focus Closed Loop Digital Encoder Objective Brinell Hardness Test Equipment



Advantages:

  1. Automatic closed-loop pressure control, automatic loading, automatic load;
  2. Tester body designed in Italy, Ample sample space for large samples.
  3. Wide force measurement range: from 62.5 to 3000 kgf, 10 brinell scales, can be customized;
  4. Automatic turret, automatic loading and unloading, no need for auto focus after loading;
  5. Z-axis automatic ascending and descending. After placing sample, push test button and the sample automatically ascends, after touching indenter, loading automatically starts, after unloading, turret automatically turns to sample location, z axis automatically focus and proceed testing.
  6. Objective structured with digital encoder, calculate D1, D2 value, LCD directly displays hardness value and D1, D2 value.
  7. Can calibrate according to standard block or length scale.
  8. Test force can auto-correct using standard force meter.
  9. Can convert to rockwell and vickers hardness value.

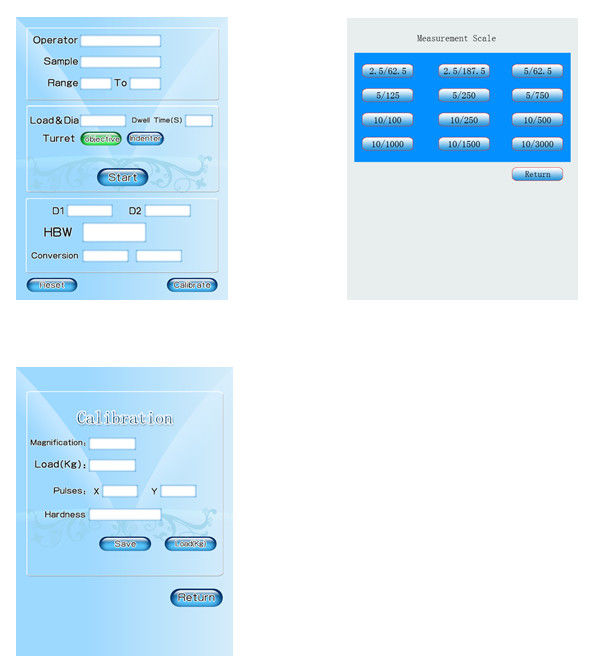

  10. Touchscreen, easy operation, can input sample, name of testing personnel and other info.
  11. Data can saved as excel format in u disc for easy editing and processing.



Technical Specifications:

Model HB-3000XP-Z
Brinell Scale HBW2.5/62.5 HBW2.5/187.5 HBW5/62.5 HBW5/125 HBW5/250 HBW5/750 HBW10/100 HBW10/250 HBW10/500 HBW10/1000 HBW10/1500 HBW10/3000
Testing Force

62.5Kgf(612.9N) 100Kgf(980.7N) 125Kgf(1226N)

187.5Kgf(1839N) 250Kgf(2452N) 500Kgf(4903N) 750Kgf(7355N) 1000Kgf(9807N) 1500Kgf(14710N) 3000Kgf(29420N)
Standards BSEN 6506, ISO 6506, ASTM E10, GB/T231
Force accuracy 62.5～250Kgf≤1% 500～3000Kgf≤0.5%
Measuring device resolution rate 0.1μm
Hardness resolution 0.1HBW
Hardness range 3.18-653HBW
Indenter and objective Automatic replacement
Loading time 1～99S
Data output LCD display
Data saving Value can be saved as excel format in u disc
Max. Height allowed for sample 320mm
Distance of indentor to outer wall 250mm
Dimension 700×340×970mm
Weight About 160kg
Power AC220+5%,50～60Hz









Standard delivery

Name Quantity Name Quantity
Objectives 20x 1 Diameter 2.5,5,10mm Hard Alloy Steel Ball Indenter Each 1
Standard Blocks 3 Large, Medium, “V” shaped Testing Table 1 each
Power Cable 1 U disk 1
Operation Manual 1 Product certificate 1
Touch pen 1


Optional hardness calibration blocks
