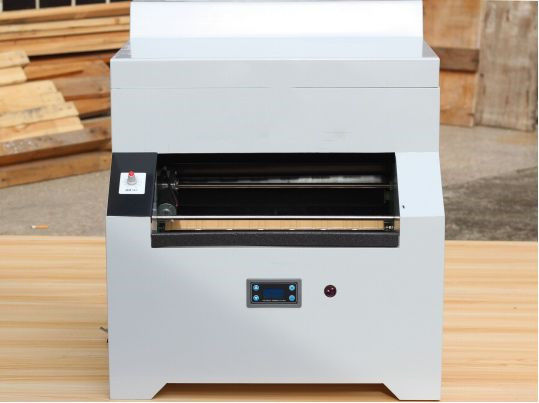

Film Drying Ndt Equipment Hdl-360 Adjustable Speed

Film Drying Ndt Equipment Hdl-360 Adjustable Speed

Film Drying Ndt Equipment Hdl-360 Adjustable Speed

Film Drying Ndt Equipment Hdl-360 Adjustable Speed

Product Details

Place of Origin: CHINA

Brand Name: HUATEC

Certification: ISO CE

Model Number: HDL-360

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: in carton

Payment Terms: T/T, Western Union

Supply Ability: 500

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                film drying ndt equipment, adjustable speed ndt equipment, film drying ndt machine


Delivery Width:	360mm	Running Time:	710mm/min (running Time: 40 Seconds)
Dry Weight:	8 X 350mm (4 * 14), 270 Pieces Per Hour	Power:	200-240V 50/60Hz 5A
Water Consumption:	2 L/min During Film Operation	Volume:	560mmX480mx545 (length X Width X Height)
Weight:	Net Weight 21Kg, Gross Weight: 26Kg (including Packing).	Film Development Speed:	40-240s Adjustable
Dry Tablet Quantity:	80X360mm (4 "X14") Film 450 Sheets Per Hour (dry Film Speed 40s)

Delivery Width:	360mm
Running Time:	710mm/min (running Time: 40 Seconds)
Dry Weight:	8 X 350mm (4 * 14), 270 Pieces Per Hour
Power:	200-240V 50/60Hz 5A
Water Consumption:	2 L/min During Film Operation
Volume:	560mmX480mx545 (length X Width X Height)
Weight:	Net Weight 21Kg, Gross Weight: 26Kg (including Packing).
Film Development Speed:	40-240s Adjustable
Dry Tablet Quantity:	80X360mm (4 "X14") Film 450 Sheets Per Hour (dry Film Speed 40s)

Product Description

360mm Width Chip Induction PTC Heating Element NDT Film Drying Equipment HDL-360

Technical parameters and specifications

● Drying process: → → Water washing → → Drying → →

● Film development speed: 40-240s adjustable

● Sheet feeding width: 360mm

● Moving speed: 710mm/min (running time: 40 seconds)

● Dry tablet quantity: 80X360mm (4 "X14") film 450 sheets per hour (dry film speed 40s)

● Power supply: 200-240V. 50/60Hz 5A

● Water consumption: 2 l/min during film operation

● Volume: 560mmX480mx545 (length x width x height)

● Add the function of chip induction

● Improved air duct, higher drying efficiency

● Roller shaft: DuPont foamed uranium is used to ensure that it will not harden within 5 years

● Shell: engineering PVC plastic

● Heating element: PTC heating element

● Temperature control mode: constant temperature control with solid-state relay

Optional parts: water washing circulating device, which aims at no tap water, poor water quality or frequent water stoppage at the use site
